INCONEL® Welding Electrode 122 (ENiCrMo-10)

Specification

INCONEL® Welding Electrode 122 is used for shielded-metal-arc welding INCONEL alloys 622 and 625, INCOLOY alloy 25-6MO, and INCOLOY alloy 825. This is an excellent dissimilar metal welding electrode that offers protection against preferential weld metal corrosion when used for joining molybdenum-containing stainless steels, INCONEL alloy C-276 and INCONEL alloy 625. It is a versatile welding product for the chemical, power, petroleum, and marine industries.

Specification Chart of Inconel Electrode 122

Specifications	AWS A5.11 ENiCrMo-10 (UNS W86022)
AWS	AWS A5.11
Class	ENiCrMo-10
Available Diameters	3/32" (2.4mm) 1/8" (3.2mm) 5/32" (4.0mm) 3/16" (4.8mm)
Length	12" 229mm - 14” 356mm - 14" 356mm - 14" 356mm
Packaging (kgs)	3/32" (2.4mm) - 4 kg tube \| 12 kg carton 1/8" (3.2mm) - 5 kg tube \| 15 kg carton 5/32" (4.0mm) - 5 kg tube \| 15 kg carton 3/16" (4.8mm) - 5 kg tube \| 15 kg carton
Top Features	For welding of nickel-chromium-molybdenum alloys as well as for overlay cladding on carbon, low alloy or stainless steels. They are also used for dissimilar joints between nickel-chromium-molybdenum alloys and stainless, carbon or low-alloy steels. Excellent corrosion resistance in oxidizing as well as reducing media in a wide variety of chemical process environments. Offers an outstanding resistance to stress corrosion cracking, pitting and crevice corrosion Better corrosion resistance than 276 and 625 For welding Alloys 622 625 25-6Mo & 825

Inconel Electrode 122 Types

165L Jasic MIG 200 Compact Inverter Welder Single Phase

152e Alloy 122 Coated Electrodes welded (ENiCrMo-10)

Oxford MIGMAKER 180 1 Oxford Migmarker 180 - 1 Compact MIG Welder

Inconel 122 Chemical Composition

AWS A5.11 ENiCrMo-10 UNS W86022	Cr	Cu	Nb + Ta	S	Ni	C	Mn	Si	P
	20 - 22.5	0.50 max	--	0.015 max	Remainder	0.02 max	1.0 max	0.20 max	0.03 max
	Fe	Ta	Ti	Co	Mo	OET	V	W	Other
	2.0 - 6.0	--	--	2.5 max	12.5 - 14.5	--	0.35 max	2.5 - 3.5	0.50 max

Ni = Nickel
Cr = Chromium
Mn = Manganese
TA = Tantalum
Nb = Niobium
Fe = Iron
Ti = Titanium
Si = Silicon
Cu = Copper
C = Carbon
P = Phosphorus
S = Sulfur
Co = Cobalt

For more symbol click here

Inconel 122 Mechanical Properties ( AWS A5.11/A5.11M)

	Tensile Strength MPa (ksi)	Yield Strength N/mm2	Elongation %
AWS Requirements	110 Ksi / 760 MPa	87 Ksi / 600 MPa	26 % min
Typical Performance	105 Ksi / 730 MPa	---	39

Typical Welding Parameters of Alloy ® 122

Diameter		Process	Volt	Amps (flat)	Amps (V/OH)	Gas
3/32"	2,4mm	SMAW	24 – 28	70 – 85	65 – 75	100% Argon
1/8"	3,2mm	SMAW	26 – 30	85 – 110	80 – 90	100% Argon
5/32"	4.0mm	SMAW	28 – 32	110 – 140	100 – 120	100% Argon
3/16"	4.8mm	SMAW	28 – 32	120 – 160	110 – 130	100% Argon

Our Shop

Welding Wire Thickness 1.2 HARRIS 25-15C-510 Regulator Acetylene

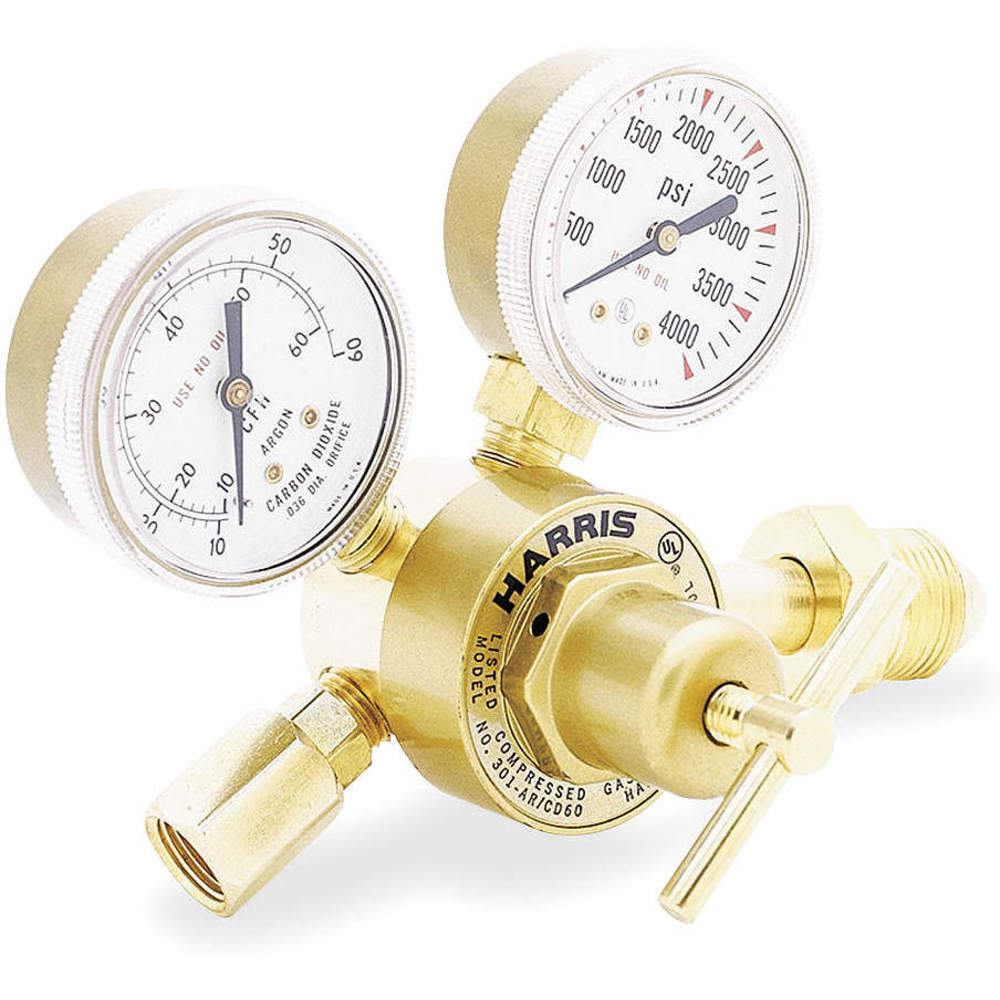

Alloy Welding MIG Wire HARRIS 301-CD60-320 Regulator Flow Gauge

inconel 82 mig tig HARRIS 301-AR60-580 Regulator Flow Gauge

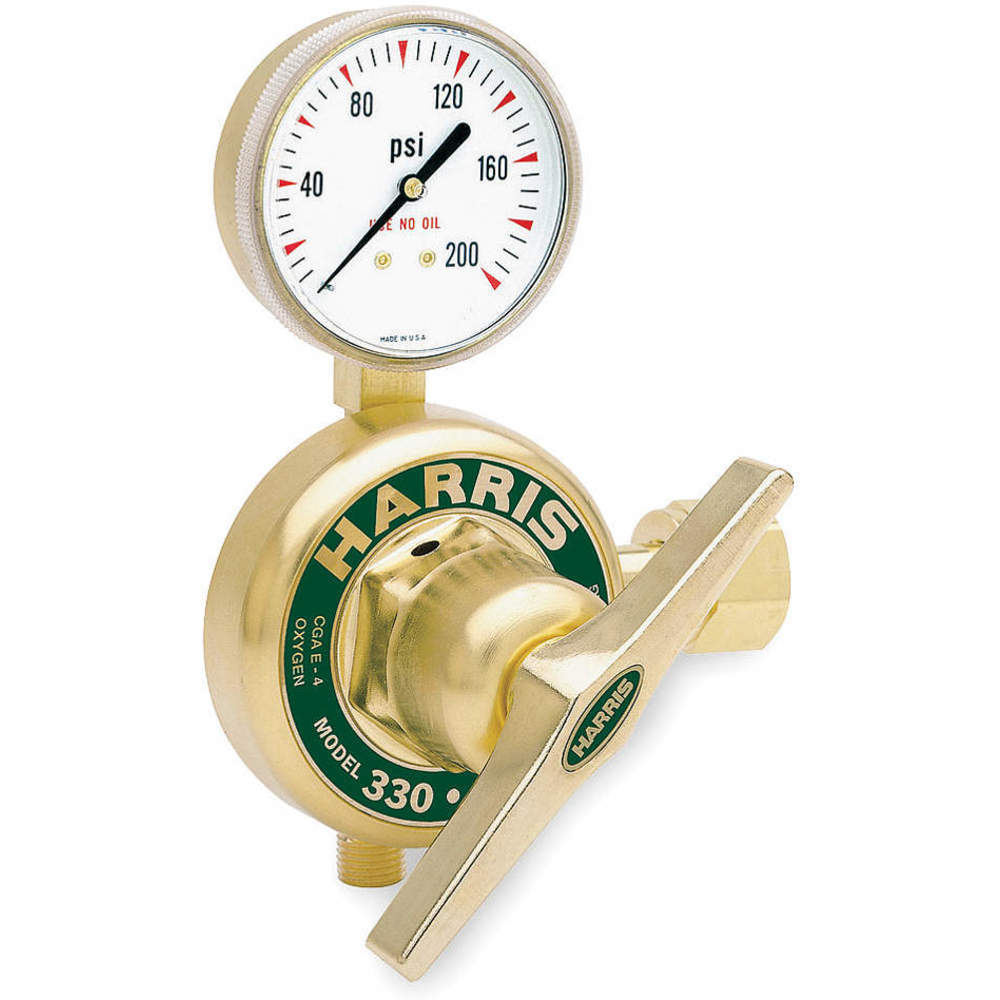

Alloy TIG Welding Rod HARRIS 330-125-320 Regulator 0-125 Psi

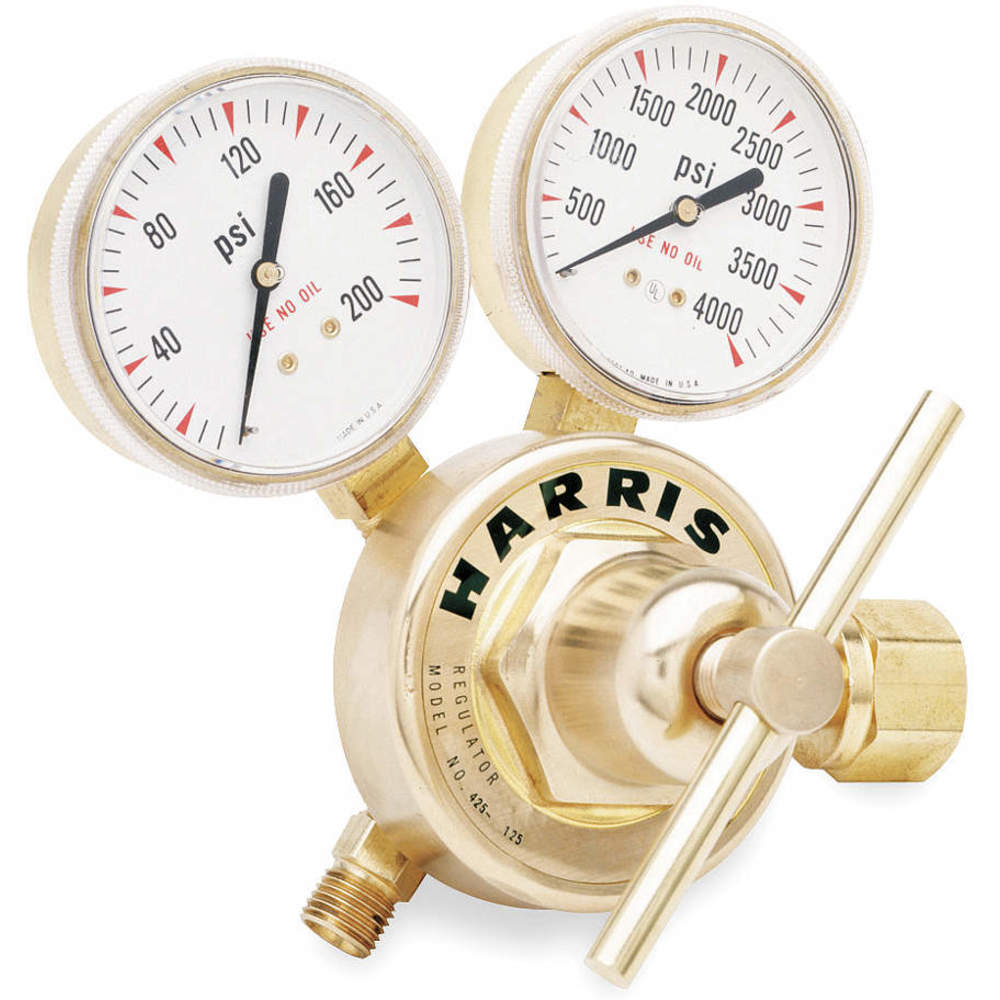

Jasic MIG 160 Compact1 HARRIS 425-50-540 Regulator Oxygen

welding pliers1 HARRIS 425-125-320 Regulator 0-125 Psi

welding pliers1 HARRIS 25-15C-510 Regulator Acetylene

Mask xelux x600a HARRIS 25-50C-510P Regulator Propane

Our Pricing list of INCONEL Welding Electrode 122

Our Part No.	AWS A5.11 ENiCrMo-10 Welding Electrode 122 available List	ENiCrMo-10 INCONEL Welding Electrode 122 Price
e565524	AWS 5.11 ENiCrMo-10 - 2.4 x 305	US $ 228.00/Kilogram US $ 827.64/ Pack
e565532	AWS 5.11 ENiCrMo-10 - 3.2 x 355	US $ 222.00/Kilogram US $ 1,010.54/ Pack
e565540	AWS 5.11 ENiCrMo-10 - 4.0 x 355	US $ 220.00/Kilogram US $ 998.80/ Pack
