Compression Fittings

Compression fittings are one of the most common and versatile methods of connecting metal or hard plastic tubing. Particularly useful for their extreme temperature and pressure capabilities, and their compatibility with aggressive fluids, compression fittings can be seen in systems varying from gas lines in refineries, to the plumbing under your sink.

Miniature compression fittings are found in applications ranging from chromatography and bomb detection instruments to medical devices and inkjet printing. Whether it’s the water heater in your home or a pipe transporting hazardous chemicals, all compression fitting applications have several traits in common: they require easy assembly, long life, and absolutely no leaks. For more details read the manual here

All Series of the Compression Fittings

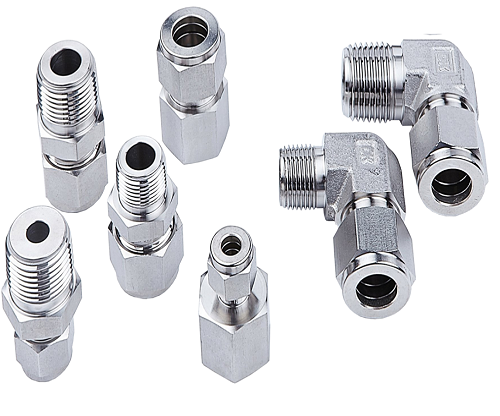

A-LOK - Tube to Female/ Male Pipe for Fractional (inch) and Metric Tube

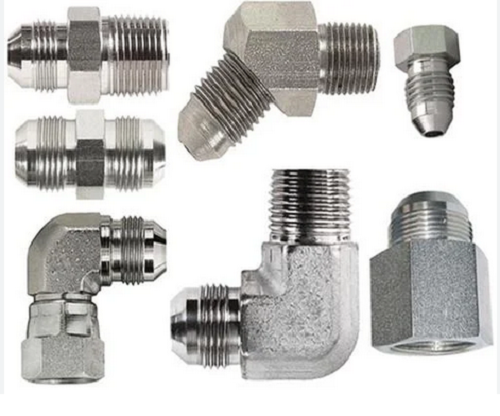

TRIPLE-LOK® 2 Soft Seal 37° Flare JIC Tube Fittings and Adapters

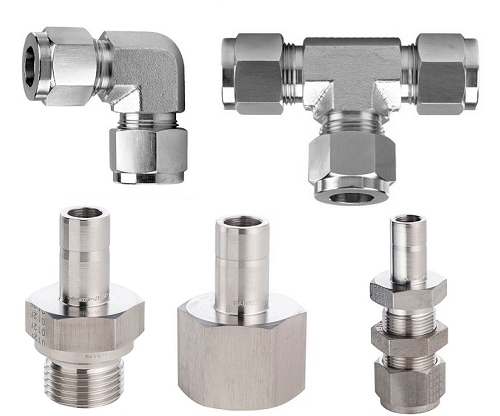

A-LOK - Tube to Tube Unions and Port Connectors for Fractional and metric tube

JIS (Japanese Industrial Standard) Adapters ,and hose adapters (30°)

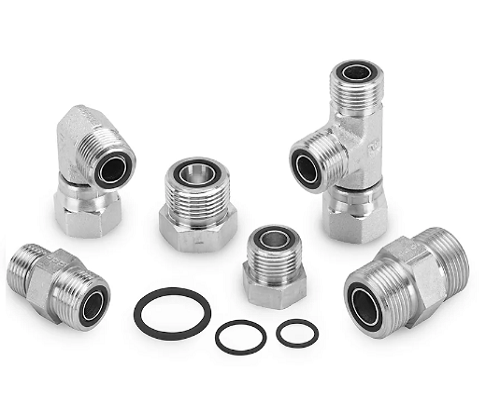

SEAL-LOK CNG tube fittings and adapters, ORFS O-Ring Face Seal Tube Fittings

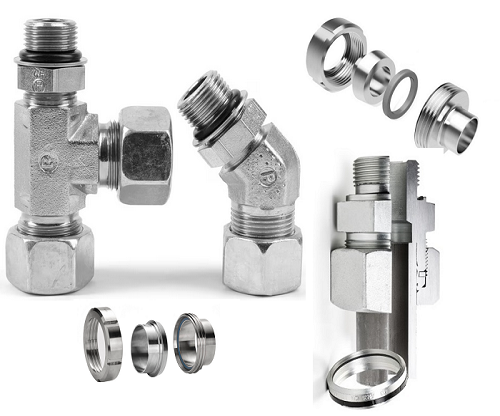

DIN (Deutsches Institut für Normung) are the most common metric

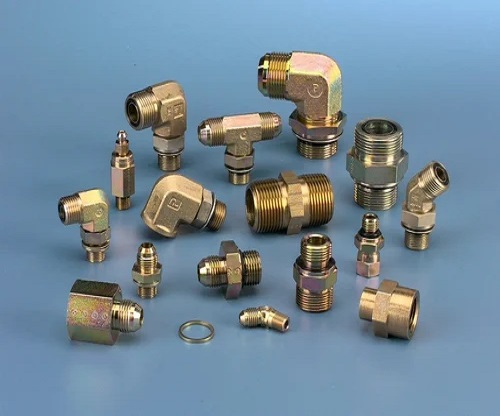

Pipe Fittings/Port Adapters - NPT, NPTF, BSPT, BSPP, SAE UN/UNF, Metric

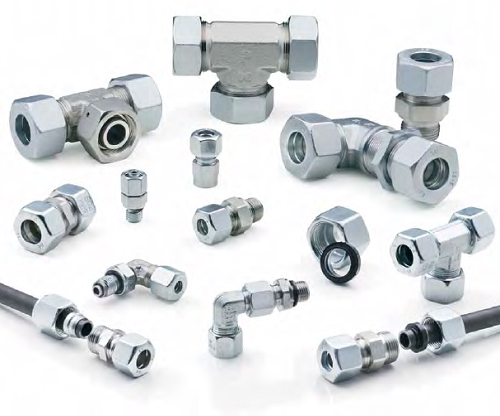

FERULOK Flareless Bite Type Fittings for metal tubing conform to SAE J514 specs

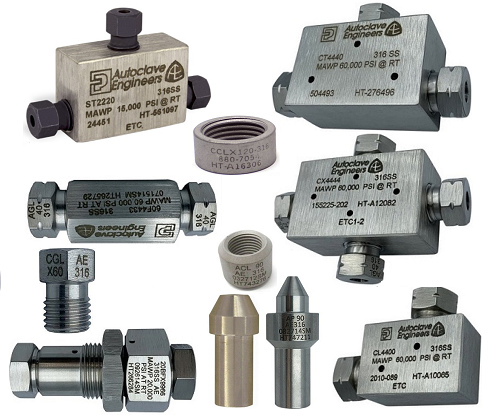

Autoclave Fittings (High Pressure)

Tube to Tube Union for Low, Medium, and High Pressure, including Components

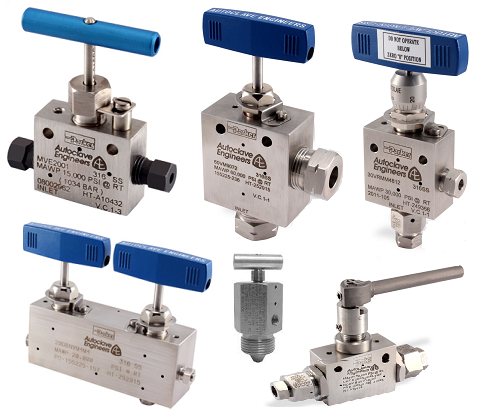

Autoclave Valves for LP,MP, and HP including all components required

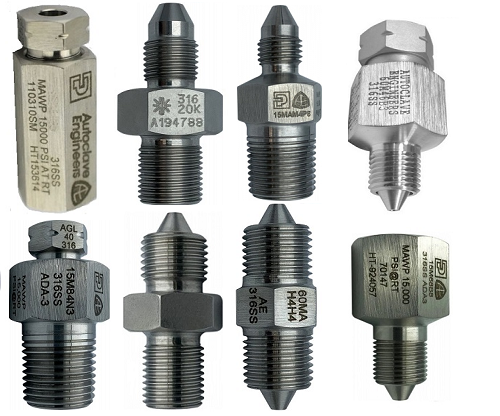

Adapters/Couplings and Reducing for MP and HP including special components

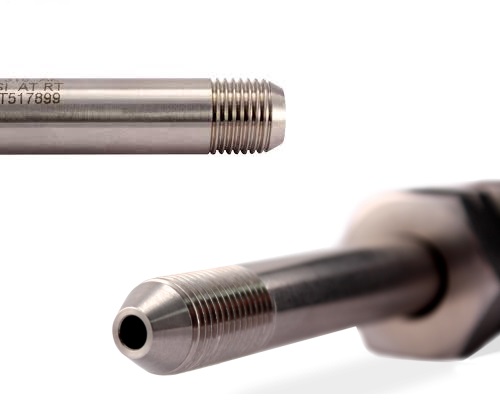

Medium, High and Ultra-high Pressure Tubing according to autoclave technology

Triple-Lok® 2 Soft Seal 37° Flare JIC Tube Fittings and Adapters

Actuator and Control valves for MP and HP according to Autoclave Technology

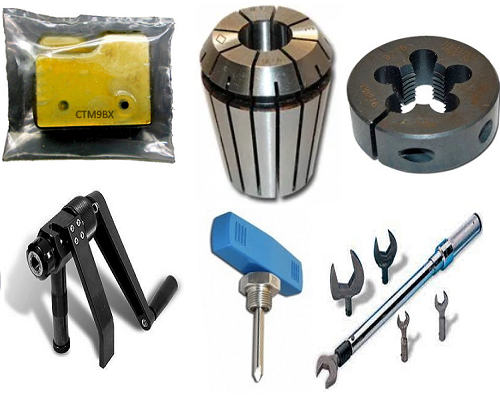

Spare Parts For Conic manual Tools and Threading Machine (Electrical power)

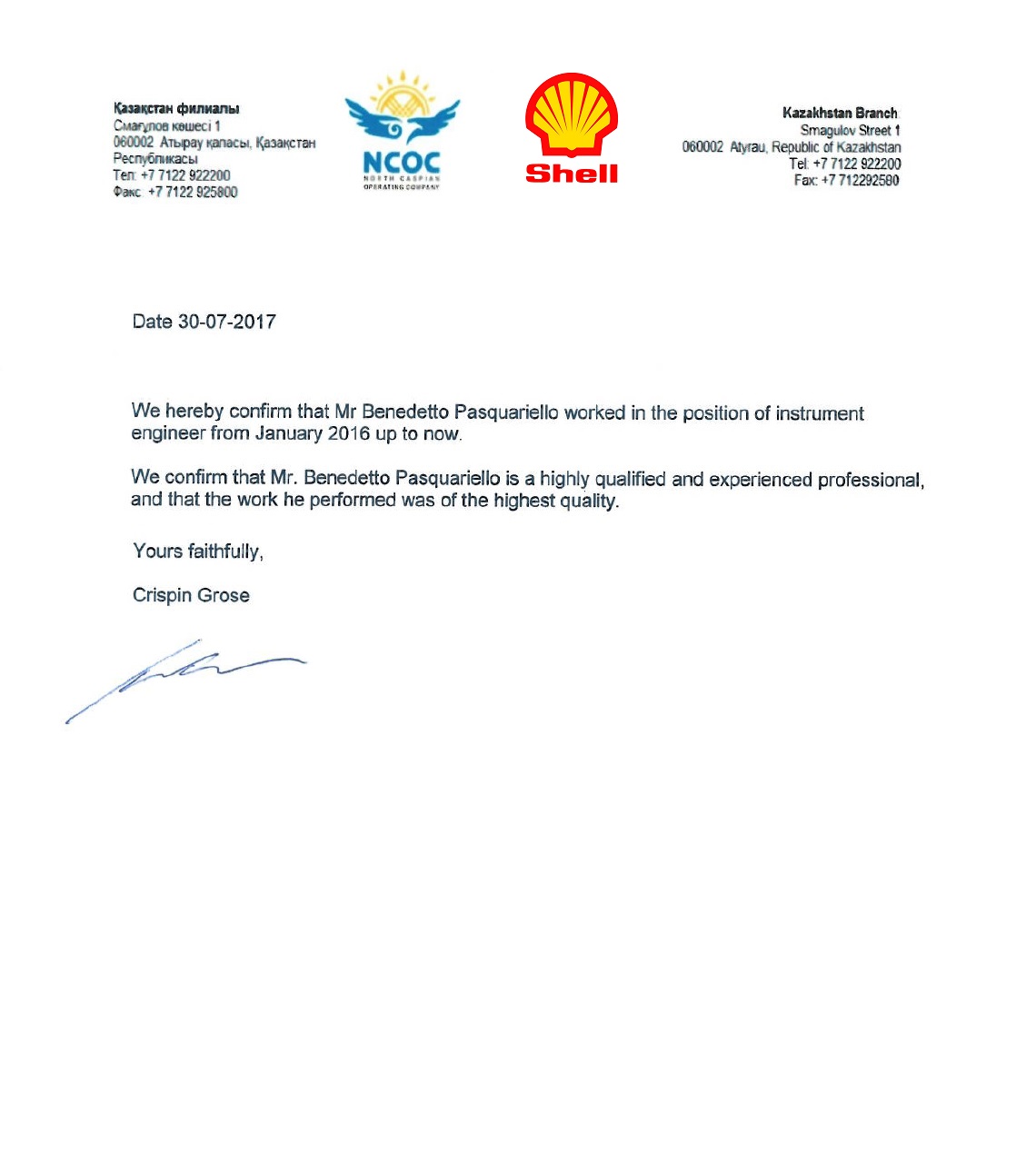

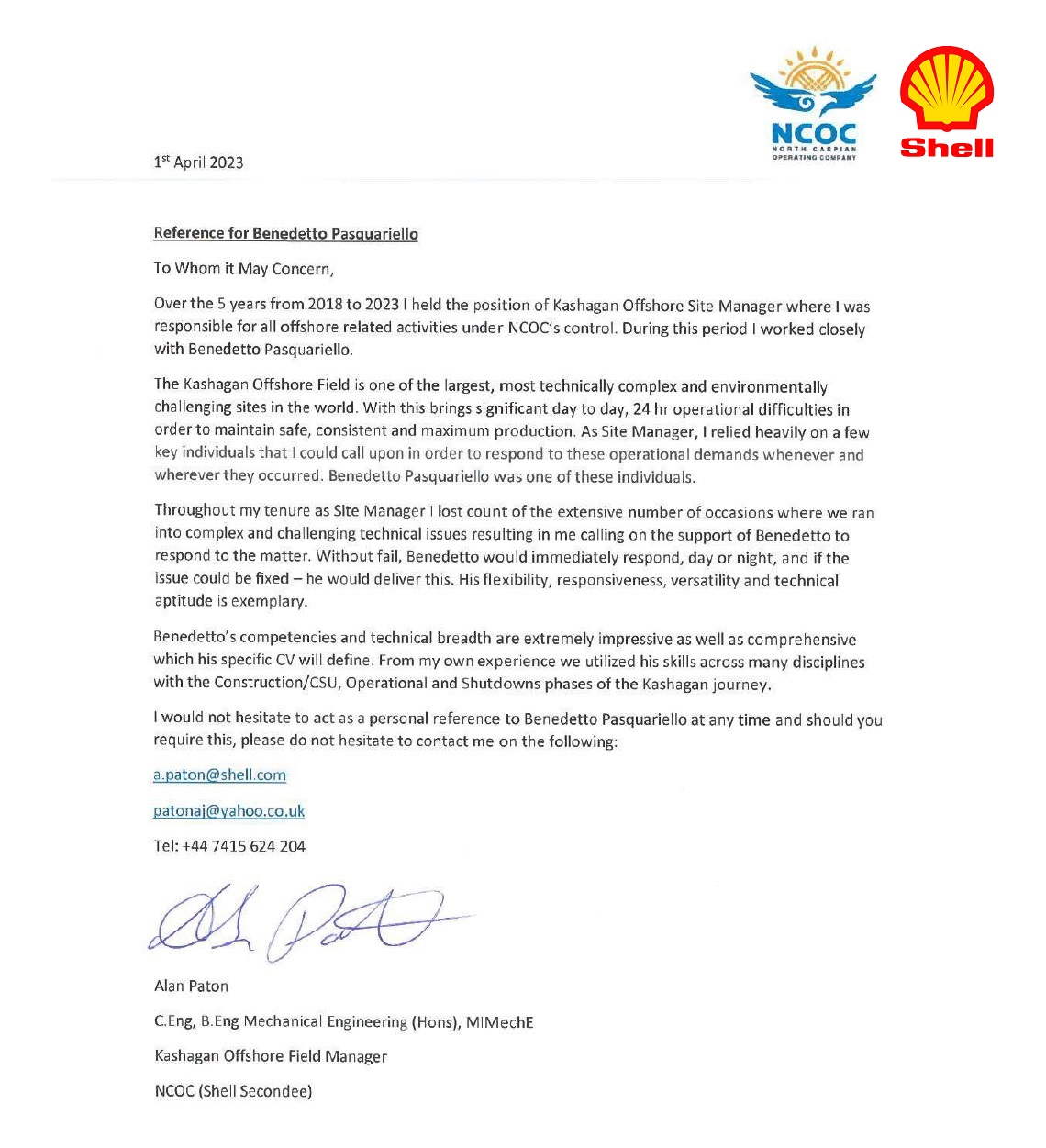

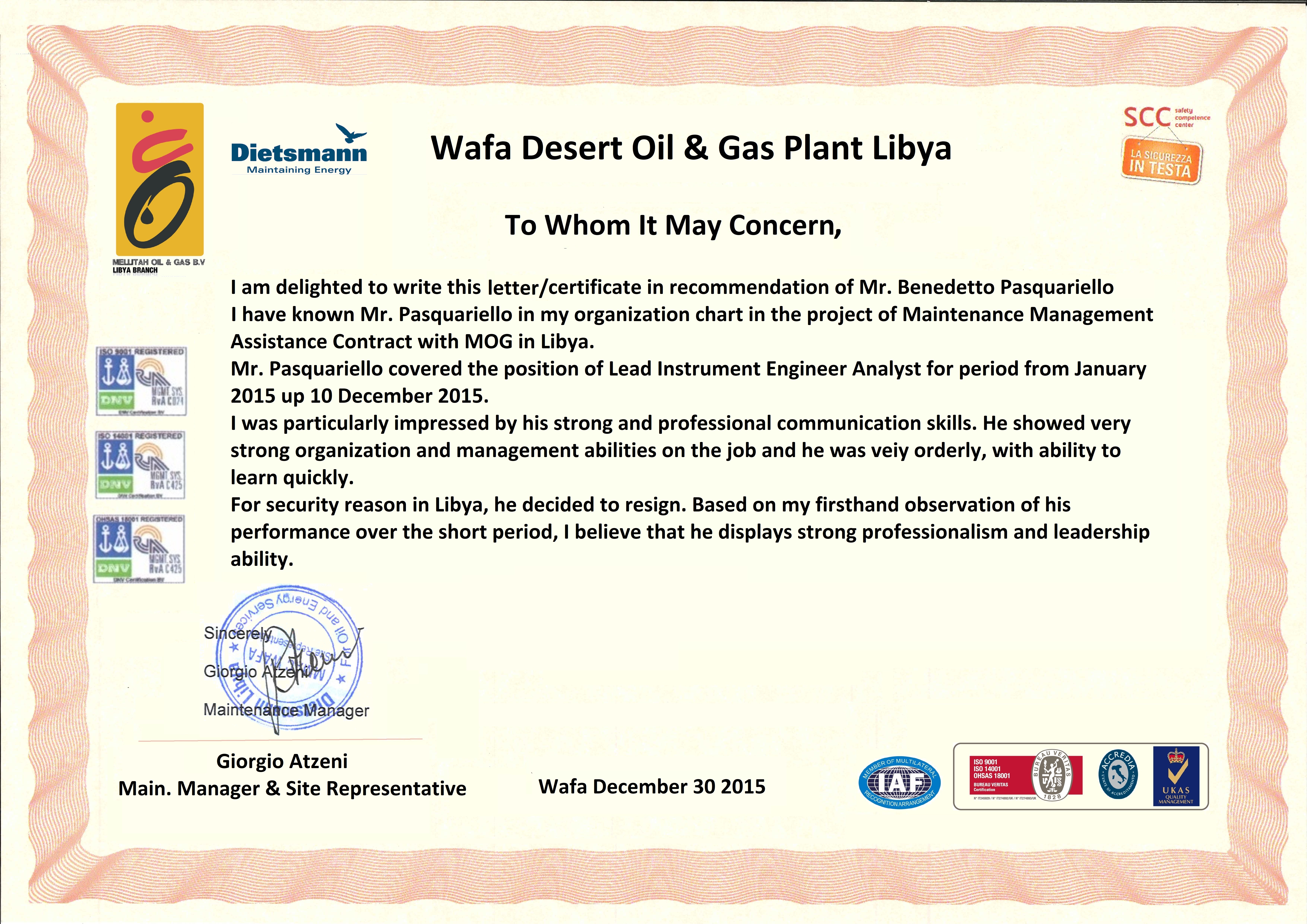

Certificates

Recommendations

Never mix collars or glands with other companies.
Experience does not means modifying the connection system or internal parts of the fittings but knowing all the procedures written in the manual (mandatory).
You must be very careful to identify correctly fittings or valves, between medium and high pressure. The high-pressure surface of the cone exposed to the fluid is smaller than the medium pressure.
Never apply any type of seal on the thread gland is strictly forbidden
When cutting the tubing, do not overheat it too much; it could lose its properties
Bend the tubing according to the degrees recommended in the manual
The gland must be screwed on the fitting by hand till the end, and then apply the torque required with the torque wrench. If the gland cannot be screwed by hand, this means that the tubing and fitting are not linear with each other and can scratch the internal cone if forced to screw it with the torque wrench, or can happen that will damage the internal thread of the fitting itself.
Always lubricate the conical part of the seal with grease
Never leave an Autoclave valve without support
Always following manual instructions is the basis of all things.
Always use the torque wrench supplied.
It doesn't mean if you have the training you know everything, it's not like that. The training can help for sure, there is no doubt about this, but remember the training doesn't protect you, but the manager himself from any mistake of the worker
Before assembling or repairing any part of a high-pressure fitting/connection, and you are not an expert, do not take any risk, ask for advice from an expert who knows the philosophy perfectly. You can also contact our team for further clarification

FAILURE, IMPROPER SELECTION OR IMPROPER USE OF THE PRODUCTS AND/OR SYSTEMS DESCRIBED HEREIN OR RELATED ITEMS CAN CAUSE DEATH, PERSONAL INJURY AND PROPERTY DAMAGE.
