bennypass.com - Monel® K-500

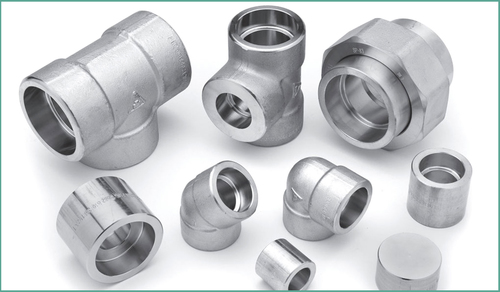

Monel® K-500 Monel K500 Tee

Chemical Composition Monel® K-500

Monel® K-500	Cr	Cu	Ni	Mn	S	C	H	O	P
	--	28 - 34	balance	2.0 max	0,024	0.3 max	--	--	--
	Fe	Si	Ti	Nb/Cb	Mo	AI	Co	W	Residuals
	2.5 max	0.5 max	--	--	--	--	--	--	--

Other Designations

Applications of Monel® K-500

Physical Properties

Physical Properties
Density	Metric	English	Comments
Density	8.8 g/cm³	0.318 lb/in³
Mechanical Properties
	Feature		Comments
Tensile Strength, Ultimate	517-620 MPa	75-90 Ksi	Annealed
Approx. operating temperature	--	--	-330°F to 445°F (-200°C to 230°C)
Tensile Strength, Yield	172-345 MPa	25-50 Ksi
Hardness, Rockwell B (converted from Brinell hardness)	--	--	--
Elongation at break	48.0%	48.0%
Elongation at Break at Elevated Temperature	--	--	--
Electrical Properties
Electrical Resistivity	--	51.0 µΩ-cm @ 68 °F
Magnetic Permeability	--	--	--
Curie Temperature	--	--
Thermal Properties
CTE, linear 20°C	--	--	--
Specific Heat Capacity	--	--	--
Thermal Conductivity	24.1 W/m-K	14 BTU-in/hr-ft²-°F
Melting Point	1350 °C	2462 °F
Modulus of Elasticity	173 kN/mm²	25092 ksi
Modulus of Rigidity	65.3 kN/mm²	9471 ksi
Coefficient of Expansion, 10^-6	13.9 μm/m °C (20 – 100°C)	7.7 x 10-6 in/in °F (70 – 212°F)

Monel® K-500 Corrosion Resistance

Heat Treatment

Heat Resistance

Monel K-500 Thermal Conductivity

Cold Working

Hot Working

Monel® K-500 Machining

Weldability

Conclusion
