Sequence LEDs PIC24f128

This is a simple circuit, especially for those who want to enter the world of programming, assembly to be precise.

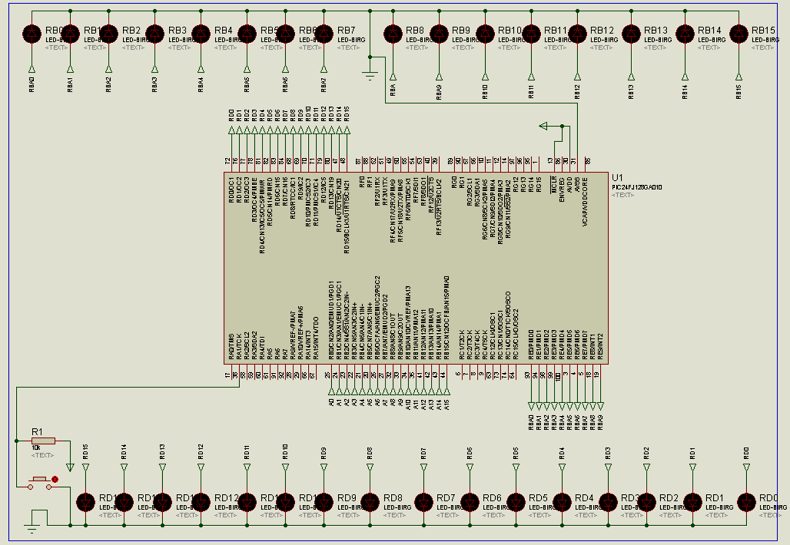

It uses all PORTB and PORTD outputs. Through specific delays, it is possible to increase or decrease the speed of execution of the program and consequently the speed of (on\off) LEDs. This circuit with appropriate transistors and  MOSFET can drive disco lights and spotlights, and by applying an external EEprom it is possible to give a good decoration in terms of sequence and also the light intensity.

For more details click here for assembly routine

Click here to see the dyinamic page
