0-60V 20A Power Supply LM2576-ADJ

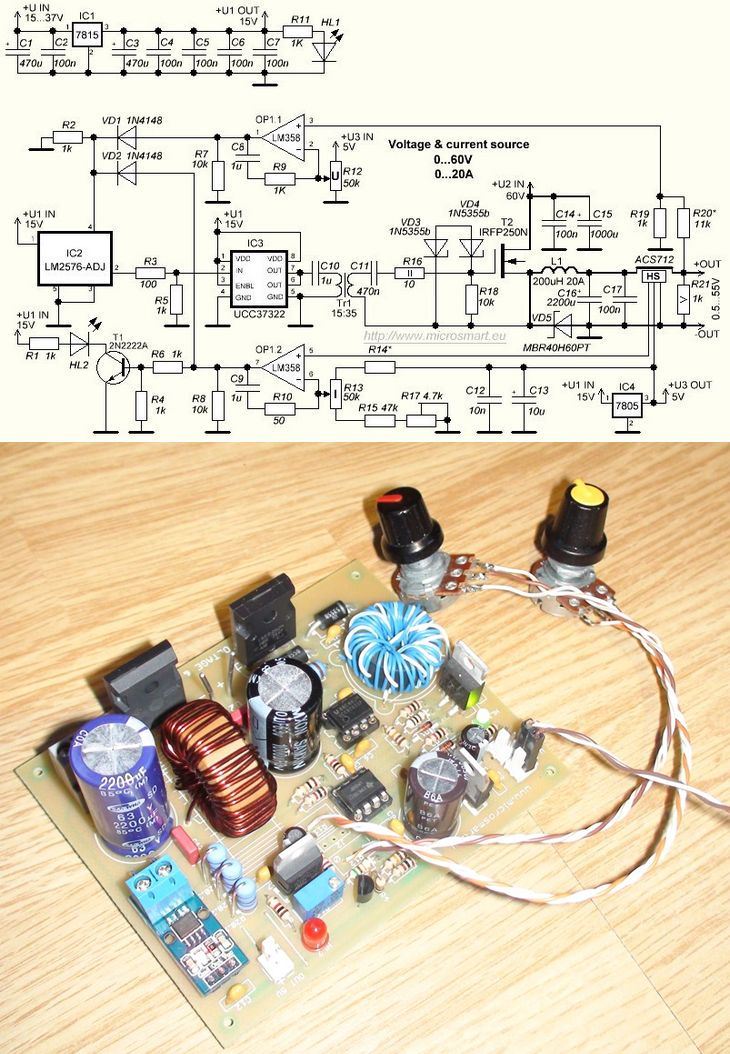

 This article has been modified by adding MOSFET to LM2576 LM2575 integrated circuits in order to increase the power. In this study, the power was both increased and adjusted, of course, the circuit design for 0-60V 0-10A 0-20A was more detailed in the LM2576-ADJ output. UCC37322 driver IC is used, and this IC controls the transformer and MOSFET (IRFP250).

The new version of this circuit include also the PIC24FJ128GA010.  instead of the potentiometers, the PIC is installed which controls the output and the amperes. In the pic there are 4 ADC converters which control the correct functioning of the voltages and amperes. Furthermore, the system is managed via a large LCD display which can display the voltage, amperes, operating time, power supply heating,
