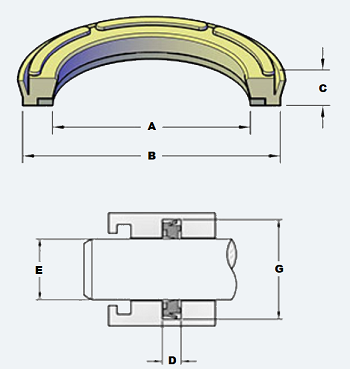

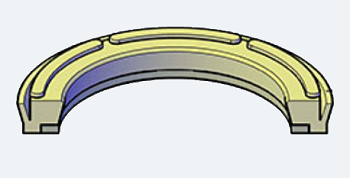

DYR-20004-BR43 Buffer Seal

Maintain the integrity and extend the service life of your hydraulic cylinders. These seals are specially designed to absorb impact and fluctuating pressures, providing an additional layer of protection for the main sealing system against shock loads and pressure spikes. This rod buffer seal is designed to absorb impact pressure fluctuations under high-load conditions thus increasing the life of the primary seal.

SEAL INFORMATION

• MATERIAL: URETHANE U-STYLE, POLYACETAL BACK-UP
• TEMPERATURE RANGE: -67° to +248° F
• PRESSURE RANGE: 0 to 8,000 PSI
• SPEED: 3 FT/SEC
