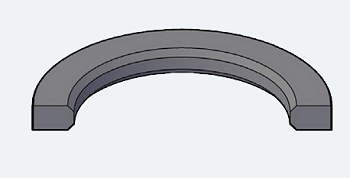

FD Buffer Seal Series (metric)

SEAL INFORMATION

Durometer (Shore A): 92
Temperature Range (F): -40 TO 200
Max Pressure (psi): 5000
Max Speed (ft/sec): 3.0
Mating Surface Roughness - Ra (µin) - DYNAMIC: 4<>16
Mating Surface Roughness - Ra (µin) - STATIC: 63 MAX
Part Number Definition (Metric): MIR-(ID)X(OD)X(HT)
Additional Part Number Definition (Metric): 40 X 48 X 3 = MIR-40X48X3
