Rod Seal UR Series

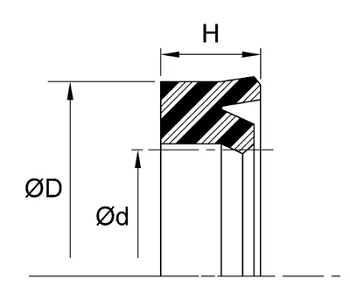

Rod U-Seal (UR) Polyurethane

UR is a sealing element used safely in rod applications and produced with high performance 93 Shore A PU material. Supported by another sealing lip in the side from which dynamic pressure comes, this UR PU nutring is made in such a way that is operates well in every hydraulic applications.

Technical Data:
Pressure: 400 Bar,
Temperature: -35  to +100
Speed: 0.5m/s
Media: Hydraulic oils (mineral oil-based)

Material:
Material: PU or Polyurethane
Hardness: 93 2 Shore A
Color: Turquoise

Advantages:
Insensibility against shock loads and pressure peaks
High resistance against extrusion
Sufficient lubrication due to pressure medium between the sealing lips
Suitable for hardest working conditions
Easy installation
