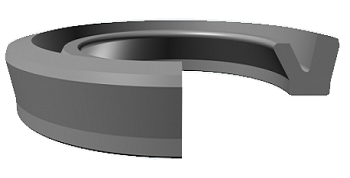

Rod Seal E5 Series

Max. Pressure 16 bar.
Working Temp. -30 +80 °C.
Max. Speed 1 m/sec.

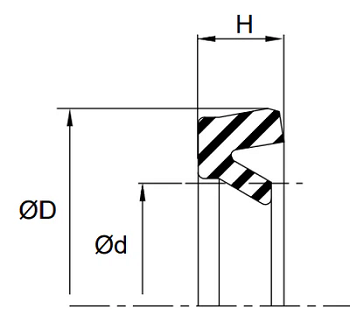

E5 profile is a non-symmetrical rod seal designed to seal both lubricated and non-lubricated air. To ensure that critical surfaces retain lubrication, the seal incorporates a radiused edge on the dynamic lip to create a hydroplaning effect over pre-lubricated surfaces.
