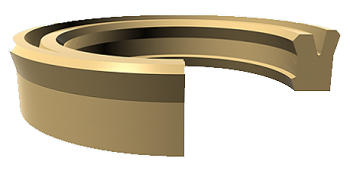

Rod Seal BT Series

Polyurethane
-65/275F [-54/135C]
5000 PSI [550 Bar]

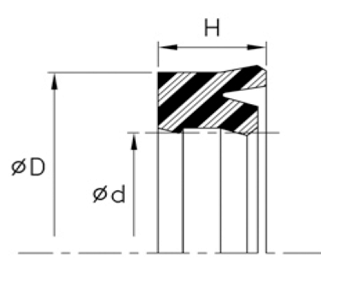

BT is a non-symmetrical design for use in hydraulic rod sealing applications, the BT profile incorporates a more robust primary sealing lip and improved stability in the housing by moving the secondary lip to the very base of the heel. BT profile may be used as a stand-alone seal or in combination with the BR-profile buffer seal for more critical sealing applications.
