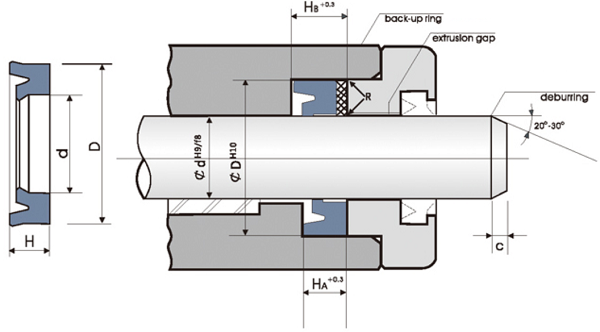

Rod Seal IDI Series

Standardized with the materials of high performance PU 93 Shore A, IDI is used very widely in hydaulic cylinders. Having shorter inner sealing lip IDI nutrings are designed especially for rod applications.

Technical Data
Pressure:  400 Bar
Temperature: -35 to +110
Speed: 0.5m/s
Media: Hydraulic oils (mineral oil-based)

Material
Material: PU
Hardness: 93 2 Shore A
Color: Light Yellow / Natural

Advantages
High resistance against extrusion
Insensibility against shock loads and pressure peaks
Low compression set
Easy installation
