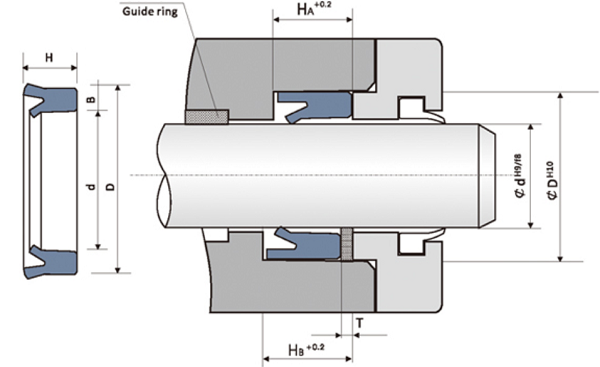

Rod Seal U2 Series

U2 is a sealing element used safely in rod applications and produced with high performance 93 Shore A PU material. Supported by another sealing lip in the side from which dynamic pressure comes, this U2 PU nutring is made in such a way that is operates well in every hydraulic applications.

Technical Data
Pressure:  400 Bar
Temperature: -35 to +110
Speed: 0.5m/s
Media: Hydraulic oils (mineral oil-based)

Material
Material: PU
Hardness: 93 2 Shore A
Color: Blue, Dark green

Advantages
High resistance to high temperature
High abrasion resistance
Low compression set
Suitable for the most severe working conditions
Easy installation
