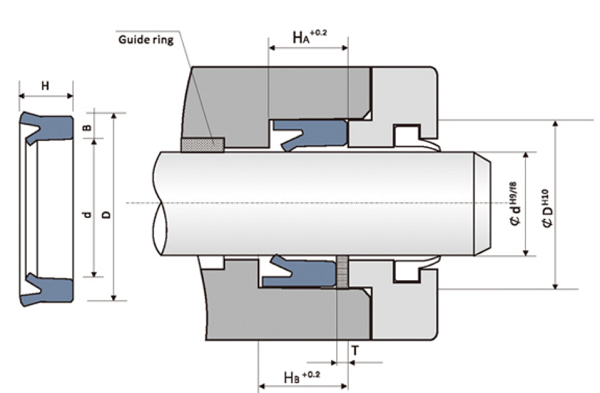

Rod Seal YX-d Series

Standardized with the materials of high performance PU 93 Shore A, YX-d are used very widely in hydaulic cylinders. Having shorter inner sealing lip YX-d nutrings are designed especially for rod applications.

Technical Data
Pressure:  300 Bar
Temperature: -35 to +100
Speed: 0.5m/s
Media: Hydraulic oils (mineral oil-based)

Material
Material: PU
Hardness: 93 2 Shore A
Color: Light green / Natural

Advantages
High resistance to high temperature
High abrasion resistance
Low compression set
Easy installation
