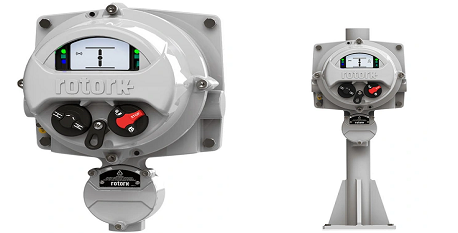

IQ3 Remote Hand Station (RHS) (signal repeater)

The RHS allows for safe and secure local monitoring and control of Rotork IQ3 range actuators installed in inaccessible locations. The RHS uses the same display and controls interface from the IQ3, meaning that users can remotely operate, interrogate and configure the IQ actuator from up to 100 m distance. Thanks to the familiar, feature-rich interface, the setup couldn’t be simpler using the Rotork Bluetooth® Setting Tool Pro supplied with the IQ. This software makes it easy for data logs to be viewed and downloaded locally at the RHS instead of having to gain access to the actuator manually. Where the power for the RHS is supplied by the actuator, removing the need for supplementary power supplies.

Features

• Installation using standard data cable, up to 100 metres away from the actuator
• Pole or wall mountable
• Replica of IQ 3rd generation user interface, including setup and configuration
• Powered via the attached actuator (24 VDC output)
• Explosionproof option available
• Enclosure IP66 / IP68 (7 m, 72 Hours)
• Double-sealed
• Simple setup
• Actuator data logs available for viewing and downloading local
