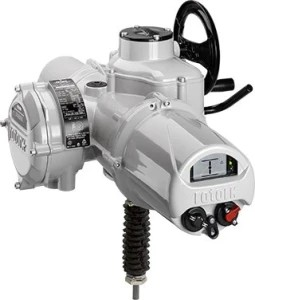

Rotork IQ3ML Linear Modulating Actuator
Benefiting from all the features of the IQM 3-phase electric actuator, the Rotork IQ3ML Linear Modulating Actuator has a linear output drive providing seating thrust output of up to 43 kN (9,667 lbf).
The features of the Rotork IQ3M and the Rotorek IQ3ML include:
- The IQM is suitable for up to 1,200 starts per hour (S4 / Class C).
- Direct seating torque output range from 11 to 542 Nm (7 to 400 lbf.ft).
- Second stage gearboxes, output seating torque up to 3,600 Nm (2,655 lbf.ft) and part-turn up to 77,000 Nm (56,790 lbf.ft).
| Actuator output speeds |
|
| rpm at 50 Hz |
|
18 |
24 |
36 |
48 |
72 |
| rpm at 60 Hz |
|
21 |
29 |
43 |
57 |
86 |
| Actuator size |
Leadscrew dia/lead mm |
|
Linear Speed at 50Hz - 60Hz
Thrust |
KN |
lbf |
| IQML10 |
25 / 3 |
mm/sec |
0.9 |
1.1 |
1.2 |
1.5 |
1.8 |
2.2 |
2.4 |
2.9 |
-- |
-- |
| Modulating |
7.9 |
1,785 |
7.9 |
1,785 |
7,3 |
1,643 |
6.4 |
1,429 |
-- |
-- |
| Seat |
15.9 |
3,570 |
15.9 |
3,570 |
14,6 |
3,285 |
12.7 |
2,858 |
| IQML12 |
25 / 3 |
mm/sec |
0.9 |
1.1 |
1.2 |
1.5 |
1.8 |
2.2 |
2.4 |
2.9 |
-- |
-- |
| Modulating |
15.9 |
3,571 |
15.9 |
3,571 |
14 |
3,143 |
12.7 |
2,857 |
-- |
-- |
| Seat |
28.6 |
6,428 |
25.4 |
5,714 |
25.4 |
5,714 |
22.3 |
5,005 |
-- |
-- |
| IQML20 |
38 / 7 |
mm/sec |
2.1 |
2.5 |
2.8 |
3.4 |
4.2 |
5.0 |
5.6 |
6,7 |
8.4 |
10.0 |
| Modulating |
22.8 |
5,128 |
22.8 |
5,128 |
19.0 |
4,274 |
15.2 |
3,419 |
13.3 |
2,991 |
| Seat |
34.2 |
7,692 |
30.4 |
6,838 |
22.8 |
5,128 |
19.0 |
4,274 |
15.2 |
3,419 |
| IQML20 |
38 / 15 |
mm/sec |
4.5 |
5.4 |
6.0 |
7.3 |
9.0 |
10.8 |
12.0 |
14.3 |
18.0 |
21.5 |
| Modulating |
17.6 |
3,947 |
17.6 |
3,947 |
14.6 |
3,289 |
11.7 |
2,632 |
10.2 |
2,303 |
| Seat |
26.2 |
5,921 |
23.4 |
5,263 |
17.6 |
3,947 |
14.6 |
3,289
|
11.7 |
2,632 |
| IQML25 |
38 / 7 |
mm/sec |
2.1 |
2.5 |
2.8 |
3.4 |
4.2 |
5.0 |
5.6 |
6.7 |
8.4 |
10.0 |
| Modulating |
42.8 |
9,615 |
42.8 |
9,615 |
36.1 |
8,120 |
28.5 |
6,410 |
28.5 |
6,410 |
| Seat |
57.0 |
12,821 |
57.0 |
12,821 |
45.6 |
10,256 |
38.0 |
8,547 |
38.0 |
8,547 |
| IQML25 |
38 / 15 |
mm/se |
4.5 |
5.4 |
6.0 |
7.3 |
9.0 |
10.8 |
12.0 |
14.3 |
18.0 |
21.5 |
| Modulating |
32.9 |
7,401 |
32.9 |
7,401 |
27.8 |
6,250 |
21.9 |
4,934 |
21.9 |
4,934 |
| Seat |
43.9 |
9,868 |
43.9 |
9,868 |
35.1 |
7,895 |
29.3 |
6,579 |
29.3 |
6,579 |
For more details read the manual here & here
|
