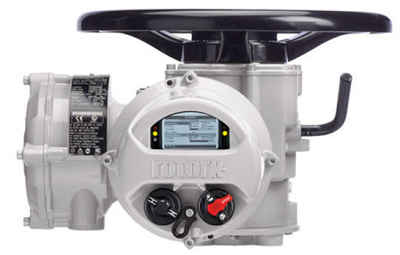

Rotork IQ3 Multi-Turn Actuator

The Rotork IQ3 Multi-Turn Actuator is the 3rd generation intelligent actuator, a world first. The IQ3 is certified for use in hazardous areas and with the simple, secure comissioning and configuration. The Rotork IQ3 range actuators benefit from a configurable information rich display with a highly intiuitive menu system used for comissioning, updates and diagnostics.

Key feature and benefits of the IQ3 Actuators are:

• IQ3 Range multi-turn electric actuators can be used for isolation or regulating duties of up to 60 starts per hour
• IQ3 Range actuators can be supplied as watertight or explosion-proof
• Direct torque output range from 14 Nm (10 lbf.ft) to 3,000 Nm (2,200 lbf.ft)
• With the addition of second stage gearboxes, multi-turn output torque up to 43,000 Nm and quarter-turn up to 1,000,000 Nm is available
• Enhanced sealing and maintenance access
• All new design with updated visual appearance
• Absolute position measurement with naturally redundant position sensor
• Best-in-class display, communications, diagnostics and HMI
• Configurable using Bluetooth® or infrared
• Designed to support asset management
• "Future Proofed" to allow all embedded software to be upgraded in the field
• Insight 2 provides enhanced product data management
