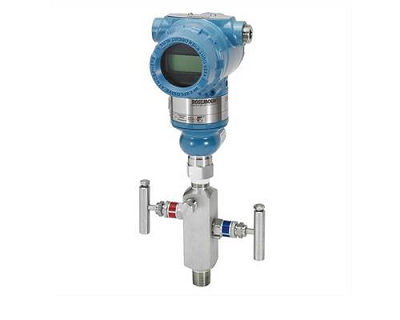

Rosemount 3051TG5A2B21AS5B4I1Q4Q8M5T1 + 306RT22AA11 (-1,01 to 689,47 bar)
- Estimated Lead Time : Usually ships in 1-10 working days.
- Manufacturer : Rosemount
- Product No. : 3051TG5A2B21AS5B4I1Q4Q8M5T1
- Product Type : In-Line Pressure Transmitter
- Model : 3051T - Pressure transmitter
- Pressure type : G - Gage
- Pressure upper range limit : 5A -14.7 to 10000 psi (-1,01 to 689,47 bar)
- Transmitter output : A - 4–20 mA with Digital Signal Based on HART Protocol
- Process connection style : 2B - 1/2–14 NPT Female
- Isolating diaphragm : 2 - 316L SST
- Sensor fill fluid : 1 - Silicone
- Housing material : A - Polyurethane-covered Aluminum, 1/2–14 NPT
- Integral assembly: S5 - Assemble to Rosemount 306 Integral Manifold
- Mounting bracket : B4 - Bracket for 2-in. pipe or panel mounting, all SST
- Product certifications: I1 - ATEX Intrinsic Safety
- Calibration certification: Q4 - Calibration certificate
- Material traceability certification: Q8 - Material traceability certification per EN 10204 3.1.B
- Display and interface options: M5 - LCD display
- Transient protection: T1 - Transient protection terminal block
- Shipping Weight : 10 Kg
 Transmitter Datasheet
Manifold Datasheet
Technical specification
|
Model
|
Transmitter type - 3051TG5A2B21AS5B4I1Q4Q8M5T1
|
| 3051T |
In-Line Pressure Transmitter |
|
Pressure type
|
|
G
|
Gage
|
|
A
|
Absolute
|
|
Pressure range
|
|
|
Gage (3051TG)(3)
|
Absolute (3051TA)
|
| 0 |
–5 to 5 psi (-344.74 to 344.74 mbar) |
N/A |
|
1
|
-14.7 to 30 psi (-1,01 to 2,06 bar)
|
0 to 30 psia (0 to 2,06 bar)
|
|
2
|
-14.7 to 150 psi (-1,01 to 10,34 bar)
|
0 to 150 psia (0 to 10,34 bar)
|
|
3
|
-14.7 to 800 psi (-1,01 to 55,15 bar)
|
0 to 800 psia (0 to 55,15 bar)
|
|
4
|
-14.7 to 4000 psi (-1,01 to 275,79 bar)
|
0 to 4000 psia (0 to 275,79 bar)
|
|
5
|
-14.7 to 10000 psi (-1,01 to 689,47 bar)
|
0 to 10000 psia (0 to 689,47 bar)
|
| 6 |
–14.7 to 20000 psi (–1.01 to 1378.95 bar) |
0 to 20000 psia (0 to 1378.95 bar) |
|
Transmitter output
|
|
A
|
4–20 mA with Digital Signal Based on HART Protocol
|
|
F
|
FOUNDATION fieldbus Protocol
|
|
W
|
PROFIBUS PA Protocol
|
|
X
|
Wireless (requires wireless options and engineered polymer housing)
|
|
M
|
Low-Power 1-5 Vdc with Digital Signal Based on HART Protocol
|
|
Process connection style
|
|
2B
|
1/2–14 NPT Female
|
|
2C
|
G½ A DIN 16288 Male (Range 1–4 only)
|
|
2F
|
Coned and Threaded, Compatible with Autoclave Type F-250-C (Range 5 only)
|
|
61
|
Non-threaded Instrument flange (Range 1-4 only)
|
|
Isolating diaphragm
|
Process connection wetted parts material
|
|
2
|
316L SST
|
316L SST
|
|
3
|
Alloy C-276
|
Alloy C-276
|
|
Sensor fill fluid
|
|
1
|
Silicone
|
|
2
|
Inert
|
|
Housing material
|
Conduit entry size
|
|
A
|
Aluminum
|
½–14 NPT
|
|
B
|
Aluminum
|
M20 × 1.5
|
|
J
|
SST
|
½–14 NPT
|
|
K
|
SST
|
M20 × 1.5
|
|
P
|
Engineered polymer
|
No conduit entries
|
|
D
|
Aluminum
|
G½
|
|
M
|
SST
|
G½
|
|
Wireless transmit rate, operating frequency, and protocol
|
|
WA3
|
User Configurable Transmit Rate, 2.4GHz WirelessHART
|
|
Antenna and SmartPower
|
|
WP5
|
Internal Antenna, Compatible with Green Power Module (I.S. Power Module Sold Separately)
|
|
HR5
|
Configured for HART Revision 5
|
|
HR7
|
Configured for HART Revision 7
|
|
Extended product warranty
|
|
WR3
|
3-year limited warranty
|
|
WR5
|
5-year limited warranty
|
|
PlantWeb control functionality
|
|
A01
|
FOUNDATION fieldbus Control Function Block Suite
|
|
PlantWeb diagnostic functionality
|
|
DA0
|
Power Advisory HART Diagnostic
|
|
D01
|
FOUNDATION fieldbus Diagnostics Suite
|
|
Integral assembly
|
|
S5
|
Assemble to Rosemount 306 Integral Manifold
|
|
Diaphragm seal assemblies
|
|
S1
|
Assemble to one Rosemount 1199 seal
|
|
Mounting bracket
|
|
B4
|
Bracket for 2-in. Pipe or Panel Mounting, All SST
|
|
Product certifications
|
|
E8
|
ATEX Flameproof and Dust Certification
|
|
I1
|
ATEX Intrinsic Safety and Dust
|
|
IA
|
ATEX Intrinsic Safety for FISCO; for FOUNDATION fieldbus or PROFIBUS PA protocols only
|
|
N1
|
ATEX Type n Certification and Dust
|
|
K8
|
ATEX Flame-proof, Intrinsic Safety, Type n, Dust (combination of E8, I1 and N1)
|
|
E4
|
TIIS Flameproof
|
|
E5
|
FM Explosion-proof, Dust Ignition-proof
|
|
I5
|
FM Intrinsically Safe, Nonincendive
|
|
IE
|
FM FISCO Intrinsically Safe; for FOUNDATION fieldbus or PROFIBUS PA protocols only
|
|
K5
|
FM Explosion-proof, Dust Ignition-proof, Intrinsically Safe, and Division 2
|
|
C6
|
CSA Explosion-proof, Dust Ignition-proof, Intrinsically Safe, and Division 2
|
|
I6
|
CSA Intrinsic Safety
|
|
K6
|
CSA and ATEX Explosion-proof, Intrinsically Safe, and Division 2 (combination of C6, E8, and I1)
|
|
E7
|
IECEx Flameproof, Dust Ignition-proof
|
|
I7
|
IECEx Intrinsic Safety
|
|
N7
|
IECEx Type n Certification
|
|
K7
|
IECEx Flameproof, Dust Ignition-proof, Intrinsic Safety, and Type n (combination of I7, N7, and E7)
|
|
E2
|
INMETRO Flameproof
|
|
I2
|
INMETRO Intrinsic Safety
|
|
IB
|
INMETRO FISCO intrinsically safe; for FOUNDATION fieldbus or PROFIBUS PA protocols only
|
|
K2
|
INMETRO Flameproof, Intrinsic Safety
|
|
E3
|
China Flameproof
|
|
I3
|
China Intrinsic Safety
|
|
N3
|
China Type n
|
|
EM
|
Technical Regulations Customs Union (EAC) Flameproof
|
|
IM
|
Technical Regulations Customs Union (EAC) Intrinsic Safety
|
|
KM
|
Technical Regulations Customs Union (EAC) Flameproof and Intrinsic Safety
|
|
KB
|
FM and CSA Explosion-proof, Dust Ignition-proof, Intrinsically Safe, and Division 2 (combination of K5 and C6)
|
|
KD
|
FM, CSA, and ATEX Explosion-proof, Intrinsically Safe (combination of K5, C6, I1, and E8)
|
|
Drinking water approval
|
|
DW
|
NSF drinking water approval
|
|
Shipboard approvals
|
|
SBS
|
American Bureau of Shipping
|
|
SBV
|
Bureau Veritas (BV)
|
|
SDN
|
Det Norske Veritas
|
|
SLL
|
Lloyds Register (LR)
|
|
Custody transfer
|
|
C5
|
Measurement Canada Accuracy Approval (Limited availability depending on transmitter type and range. Contact an Emerson Process Management representative)
|
|
Calibration certification
|
|
Q4
|
Calibration Certificate
|
|
QG
|
Calibration Certificate and GOST Verification Certificate
|
|
QP
|
Calibration Certification and tamper evident seal
|
|
Material traceability certification
|
|
Q8
|
Material Traceability Certification per EN 10204 3.1
|
|
Quality certification for safety
|
|
QS
|
Prior-use certificate of FMEDA Data
|
|
QT
|
Safety certified to IEC 61508 with certificate of FMEDA
|
|
Configuration buttons
|
|
D4
|
Analog Zero and Span
|
|
DZ
|
Digital Zero Trim
|
|
Display and interface options
|
|
M4
|
LCD Display with Local Operator Interface
|
|
M5
|
LCD Display
|
|
Wireless SST sensor module
|
|
WSM
|
Wireless SST Sensor Module
|
|
Conduit plug
|
|
DO
|
316 SST Conduit Plug
|
|
Transient terminal block
|
|
T1
|
Transient Protection Terminal Block
|
|
Software configuration
|
|
C1
|
Custom Software Configuration (Completed CDS 00806-0100-4007 for wired and 00806-0100-4100 for wireless required with order)
|
|
Low power output
|
|
C2
|
0.8-3.2 Vdc Output with Digital Signal Based on HART Protocol (Available with Output code M only)
|
|
Alarm levels
|
|
C4
|
Analog Output Levels Compliant with NAMUR Recommendation NE 43, Alarm High
|
|
CN
|
Analog Output Levels Compliant with NAMUR Recommendation NE 43, Low Alarm
|
|
CR
|
Custom alarm and saturation signal levels, high alarm (requires C1 and Configuration Data Sheet)
|
|
CS
|
Custom alarm and saturation signal levels, low alarm (requires C1 and Configuration Data Sheet)
|
|
CT
|
Rosemount standard low alarm
|
|
Pressure testing
|
|
P1
|
Hydrostatic Testing with Certificate
|
|
Cleaning process area
|
|
P2
|
Cleaning for Special Service
|
|
P3
|
Cleaning for <1 PPM Chlorine/Fluorine
|
|
Ground screw
|
|
V5
|
External Ground Screw Assembly
|
|
Surface finish
|
|
Q16
|
Surface finish certification for sanitary remote seals
|
|
Toolkit total system performance reports
|
|
QZ
|
Remote Seal System Performance Calculation Report
|
|
Conduit electrical connector
|
|
GE
|
M12, 4-pin, Male Connector (eurofast)
|
|
GM
|
A size Mini, 4-pin, Male Connector (minifast)
|
|
NACE certificate
|
|
Q15
|
Certificate of Compliance to NACE MR0175/ISO15156 for wetted materials
|
|
Q25
|
Certificate of Compliance to NACE MR0103 for wetted materials
|
|
model number: 3051TG5A2B21AS5B4I1Q4Q8M5T1
|
Type of Manifold Connection
There are several types of manifold Connections, for more details see figures below
Figure 1 Below - Rosemount 306 In-line Style |
Figure 2 below - Rosemount 305 Coplanar™ Style
 |
Figure 3 below - Rosemount 304 conventional manifold wafer style
 |
Figure 4 below - Rosemount 304 three-valve manifold
 |
Designed and manufactured to maximize the performance of Rosemount transmitters.
performance.
■ Factory assembly saves installation time and money.
■ Available in a variety of forms, materials, and configurations.
Technical specification
| Vibration effects |
When tested in accordance with the field requirements of IEC60770-1: 1999, or when the pipeline vibrates heavily (10-60 Hz 0.21 mm displacement peak amplitude / 60-2000 Hz 3g) Less than ±0.1% URL. |
| Power Supply Effects |
Less than ±0.005% of calibration range for each volt change. |
| Electromagnetic compatibility |
Meets all requirements for industrial environments according to EN61326 and NAMUR NE-21 Maximum deviation during EMC disturbances < 1% of the range. |
| Transient Protection (Option Code T1) |
Tested to IEEE C62.41.2-2002 Class B locations
■ 6 kV peak (0.5 µs - 100 kHz)
■ 3 kA peak (8 x 20 µs)
■ 6 kV peak (1.2 x 50 µs) |
| overpressure limit |
Rosemount 3051TG/TA
■ Range 0: 60 psi (4.14 bar)
■ Range 1: 750 psi (51.71 bar)
Range 1: 750 psi (51.71 bar) ■ Range 2: 1500 psi (103.42 bar)
■ Range 3: 1600 psi (110.32 bar)
■ Range 4: 6000 psi (413.69 bar)
■ Range 5: 15000 psi (1034.21 bar)
■ Range 6: 24000 psi (1654.74 bar) |
| static pressure limit |
Rosemount 3051T Direct Connect
■ Range 0-4: 11016 psi (759.53 bar)
■ Range 5: 26016 psig (1793.74 bar)
■ Range 6: 46092 psi (3177.93 bar) |
| temperature limit |
Ambient Temperature
■ -40 to 185 °F (-40 to 85 °C)
■ With LCD display(1)(2): -40 to 176 °F (-40 to 80 °C)
■ With code BR5: -58 to 185 °F (-50 to 85 °C)
■ Options with code BR6: -76 to 185 °F (-60 to 85 °C) |
| Humidity Limit |
0-100% Relative Humidity |
| Process Connectors |
Rosemount 3051T
■ ½-14 NPT female threads
■ G½ A DIN 16288 male thread (ranges 1-4 only)
■ Model F-250-C autoclave (pressure relief 9/16-18 cap threads; ¼ OD high pressure hose 60° taper angle; range 5-6 transmitters only). |
Dimensional Drawings
|
