Code

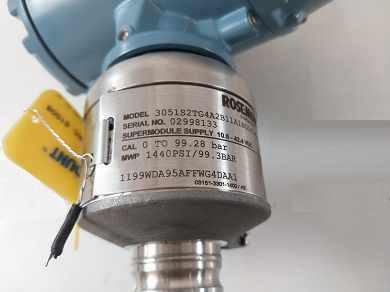

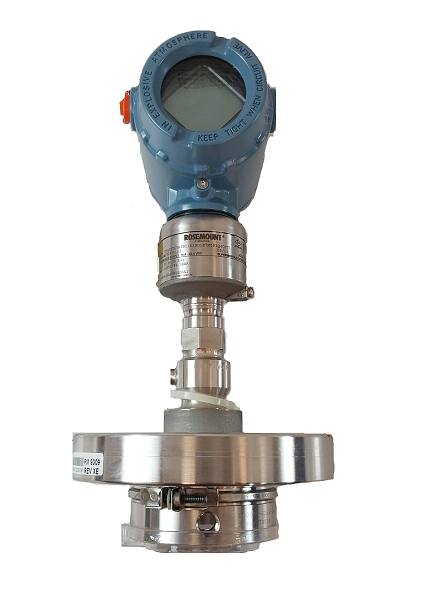

Model - Description - 3051S2TG4A2B11A1BD1E7M5P1Q4QTT1

3051S

Scalable pressure transmitter

Code

Performance class - Description

1

Ultra: 0.025% span accuracy, 200:1 rangedown, 15-year stability, 15-year limited warranty

2

Classic: 0.035% span accuracy, 150:1 rangedown, 15-year stability

Code

Connection type - Description

T

In-line

Code

Measurement type - Description

G

Gauge

A

Absolute

Code

Pressure range - Description

Gauge

Absolute

1A

–14.7 to 30 psi (–1.01 to 2.06 bar)

0 to 30 psia (2.06 bar)

2A

–14.7 to 150 psi (–1.01 to 10.34 bar)

0 to 150 psia (10.34 bar)

3A

–14.7 to 800 psi (–1.01 to 55.15 bar)

0 to 800 psia (55.15 bar)

4A

–14.7 to 4000 psi (–1.01 to 275.79 bar)

0 to 4000 psia (275.79 bar)

5A

–14.7 to 10000 psi (–1.01 to 689.47 bar)

0 to 10000 psia (689.47 bar)

Code

Isolating diaphragm - Description

2

316L SST

3

Alloy C-276

Code

Process connection - Description

A11

Assemble to Rosemount 306 integral manifold

B11

Assemble to one Rosemount 1199 seal

E11

½–14 NPT female

G11

G½ A DIN 16288 male (range 1–4 only)

H11

Coned and threaded, compatible with autoclave type F-250-C (range 5A only)

F11

Code

Transmitter output - Description

A

4–20 mA with digital signal based on HART^® protocol

F

FOUNDATION™ Fieldbus protocol

X

Wireless (requires wireless options and wireless Plantweb^™ housing)

Code

Housing style - Description

Material

Conduit entry size

00

None (SuperModule^™ spare part, order output code A)

N/A

N/A

1A

Plantweb^™ housing

Aluminum

½–14 NPT

1B

Plantweb housing

Aluminum

M20 x 1.5

1J

Plantweb housing

SST

½–14 NPT

1K

Plantweb housing

SST

M20 x 1.5

5A(1)

Wireless Plantweb housing

Aluminum

½–14 NPT

5J(1)

Wireless Plantweb housing

SST

½–14 NPT

2E

Junction box housing with output for remote display and interface

Aluminum

½–14 NPT

2F

Junction box housing with output for remote display and interface

Aluminum

M20 x 1.5

2M

Junction box housing with output for remote display and interface

SST

½–14 NPT

1C

Plantweb housing

Aluminum

G½

1L

Plantweb housing

SST

G½

2G

Junction box housing with output for remote display and interface

Aluminum

G½

Code

Update rate - Description

WA

User configurable update rate

Code

Operating frequency and protocol - Description

3

2.4 GHz DSSS, IEC 62591 (WirelessHART)

Code

Omni-directional wireless antenna - Description

WK

External antenna

WM

Extended range, external antenna

WJ

Remote antenna

WN

High-gain, remote antenna

Code

SmartPower^™ Housing Cover - Description

1

Standard Life Black Power Module (I.S. Power Module sold separately)

2

Extended Life Blue Power Module (I.S. Power Module sold separately)

Code

HART^® Revision configuration (requires HART Protocol output code A - Description

HR7

Configured for HART Revision 7

Code

Extended product warranty - Description

WR3

3-year limited warranty

WR5

5-year limited warranty

Code

Plantweb control functionality - Description

A01

FOUNDATION Fieldbus advanced control function block suite

Code

Diagnostics suite - Description

D01

FOUNDATION™ Fieldbus diagnostics suite (Process Intelligence, Plugged Impulse Line diagnostic)

DA2

Advanced HART^® diagnostics suite (Process Intelligence, Loop Integrity, Plugged Impulse Line diagnostic, Process Alerts, Service Alerts, Variable Log, Event Log)

Code

Mounting bracket - Description

B4

Bracket, all SST, 2-in. pipe and panel

BE

316SST B4-style bracket with 316SST bolting

Code

Software configuration -  Description

C1

Custom software configuration (requires Configuration Data Sheet)

Code

Alarm limit - Description

C4

NAMUR alarm and saturation levels, high alarm

C5

NAMUR alarm and saturation levels, low alarm

C6

Custom alarm and saturation signal levels, high alarm (requires C1 and Configuration Data Sheet)

C7

Custom alarm and saturation signal levels, low alarm (requires C1 and Configuration Data Sheet)

C8

Low alarm (standard Rosemount alarm and saturation levels)

Code

Hardware adjustments - Description

D1

Hardware adjustments (zero, span, alarm, security)

Code

Custody transfer - Description

D3

Measurement Canada accuracy approval

Code

Ground screw - Description

D4

External ground screw assembly

Code

Conduit plug - Description

DO

316 SST conduit plug

★

Code

Product certifications - Description

E1

ATEX Flameproof

I1

ATEX Intrinsic Safety

IA

ATEX FISCO Intrinsic Safety (FOUNDATION™ Fieldbus protocol only)

N1

ATEX Type n

K1

ATEX Flameproof, Intrinsic Safety, Type n, Dust

ND

ATEX Dust

E4

Japan Flameproof

I4(1)

Japan Intrinsic Safety

E5

USA Explosion-proof, Dust Ignition-proof

I5

USA Intrinsically Safe; Nonincendive

IE

USA FISCO Intrinsically Safe (FOUNDATION Fieldbus protocol only)

K5

USA Explosion-proof, Dust Ignition-proof, Intrinsically Safe, Division 2

E6

Canada Explosion-proof, Dust Ignition-proof, Division 2

I6

Canada Intrinsically Safe

IF

Canada FISCO Intrinsically Safe (FOUNDATION Fieldbus protocol only)

K6

Canada Explosion-proof, Dust Ignition-proof, Intrinsically Safe, Division 2

E7

IECEx Flameproof, Dust

I7

IECEx Intrinsic Safety

IG

IECEx FISCO Intrinsic Safety (FOUNDATION Fieldbus protocol only)

N7

IECEx Type n

K7

IECEx Flameproof, Dust, Intrinsic Safety, Type n

E2

Brazil Flameproof

I2

Brazil Intrinsic Safety

IB

Brazil FISCO Intrinsic Safety

K2

Brazil Flameproof, Intrinsic Safety

E3

China Flameproof

I3

China Intrinsic Safety

N3

China Type n

EP

Korea Flameproof

IP

Korea Intrinsic Safety

KP

Korea Flameproof, Intrinsic Safety

EM

Technical Regulations Customs Union (EAC) Flameproof

IM

Technical Regulations Customs Union (EAC) Intrinsic Safety

IN

Technical Regulations Customs Union (EAC) FISCO Intrinsic Safety

KM

Technical Regulations Customs Union (EAC) Flameproof, Intrinsic Safety

KA

ATEX and Canada Flameproof, Intrinsically Safe, Division 2

KB

USA and Canada Explosion-proof, Dust Ignition-proof, Intrinsically Safe, Division 2

KC

USA and ATEX Explosion-proof, Intrinsically Safe, Division 2

KD

USA, Canada, and ATEX Explosion-proof, Intrinsically Safe

KG

USA, Canada, ATEX and IECEx FISCO Intrinsic Safety

KQ

USA, Canada, ATEX Intrinsic Safety Combination

KS

USA, Canada, IECEx, ATEX Explosion Proof, Intrinsically Safe, Dust, Non-Incendive, Type-N, Division 2

Shipboard approvals Description

SBS

American Bureau of Shipping

SBV

Bureau Veritas (BV) Type Approval

SDN

Det Norske Veritas (DNV) Type Approval

SLL

Lloyds Register (LR) Type Approval

Stainless steel tagging - Description

Y2

316 SST nameplate, top tag, wire-on tag(s), and fasteners

Sensor fill fluid - Description

L1

Inert sensor fill fluid

Display type - Description

M5

Plantweb^™ LCD display

M7

Remote mount LCD display and interface, Plantweb housing, no cable, SST bracket

M8

Remote mount LCD display and interface, Plantweb housing, 50 ft. (15 m) cable, SST bracket

M9

Remote mount LCD display and interface, Plantweb housing, 100 ft. (31 m) cable, SST bracket

Pressure testing - Description

P1

Hydrostatic testing with certificate

Special cleaning - Description

P2

Cleaning for special services

P3

Cleaning for special services with testing for <1PPM chlorine/fluorine

Calibration certification - Description

Q4

Calibration certificate

QP

Calibration certificate and tamper evident seal

Material traceability certification - Description

Q8

Material traceability certification per EN 10204 3.1

Positive material identification (PMI) - Description

Q76

PMI verification and certificate

Quality certification for safety - Description

Transient protection - Description

T1

Transient terminal block

Drinking water approval Description

DW

NSF drinking water approval

Surface finish certification - Description

Q16

Surface finish certification for sanitary remote seals

Toolkit total system performance reports - Description

QZ

Remote seal system performance calculation report

Conduit electrical connectorz - Description

GE

M12, 4-pin, male connector (eurofast^®)

GM

A size mini, 4-pin, male connector (minifast^®)

NACE^® certificate - Description

Q15

Certificate of compliance to NACE MR0175/ISO 15156 for wetted materials

Q25

sCertificate of compliance to NACE MR0103 for wetted materials

Code

Description

BR5

–58 °F (–50 °C) cold temperature operation

BR6

–76 °F (–60 °C) cold temperature operation
