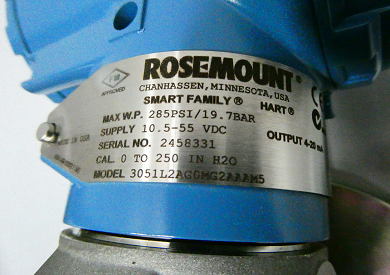

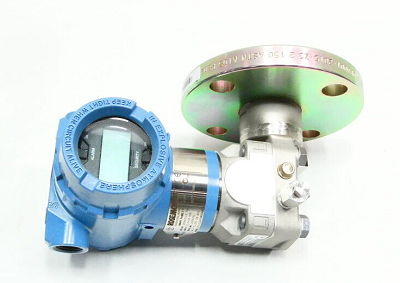

Rosemount DP Transmitter 3051L2AG0MG2AAAM5 Level Transmitter
Estimated Lead Time : Usually ships in 1-10 working days
 Transmitter Datasheet
- Manufacturer : Rosemount
- Product No. : 3051L2AG0MG2AAAM5
- Model : 3051 L - Level transmitter
- Pressure range : 2 - –250 to 250 inH2O (-621,60 to 621,60 mbar
- Transmitter output : A - 4–20 mA with Digital Signal Based on HART Protocol
- Process connection size, material, extension length (high side): G0 - 2-in./DN 50/A

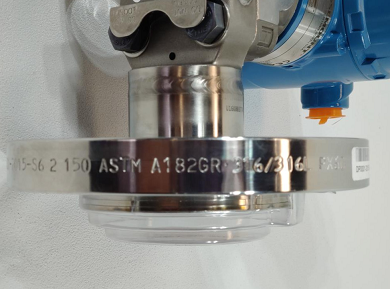

- Mounting flange size, rating, material (high side): M - 2-in. AcSME B16.5 Class 150 material CS
- Sensor fill fluid : G - Glycerin and water
- Low pressure side: 2A- Differential
- O-ring: A - Glass-filled PTFE
- Housing material: A - Aluminum / ½–14 NPT
- Display and interface options: M5 -LCD Display
|
Model
|
Transmitter type 3051L2AG0MG2AAAM5
|
| 3051L |
Level Transmitter |
|
Pressure range
|
|
2
|
–250 to 250 inH2O (-621,60 to 621,60 mbar)
|
|
3
|
–1000 to 1000 inH2O (-2,48 to 2,48 bar)
|
|
4
|
–300 to 300 psi (-20,68 to 20,68 bar)
|
|
Transmitter output
|
|
A
|
4–20 mA with Digital Signal Based on HART Protocol
|
|
F
|
FOUNDATION fieldbus Protocol
|
|
W
|
PROFIBUS PA Protocol
|
|
X
|
Wireless (requires wireless options and engineered polymer housing)
|
|
M
|
Low-Power 1-5 Vdc with Digital Signal Based on HART Protocol
|
|
Process connection size, material, extension length (high side)
|
|
Code
|
Process connection size
|
Material
|
Extension length
|
|
G0
|
2-in./DN 50/A
|
316L SST
|
Flush Mount Only
|
|
H0
|
2-in./DN 50
|
Alloy C-276
|
Flush Mount Only
|
|
J0
|
2-in./DN 50
|
Tantalum
|
Flush Mount Only
|
|
A0
|
3-in./DN 80
|
316L SST
|
Flush Mount
|
|
A2
|
3-in./DN 80
|
316L SST
|
2-in./50 mm
|
|
A4
|
3-in./DN 80
|
316L SST
|
4-in./100 mm
|
|
A6
|
3-in./DN 80
|
316L SST
|
6-in./150 mm
|
|
B0
|
4-in./DN 100
|
316L SST
|
Flush Mount
|
|
B2
|
4-in./DN 100
|
316L SST
|
2-in./50 mm
|
|
B4
|
4-in./DN 100
|
316L SST
|
4-in./100 mm
|
|
B6
|
4-in./DN 100
|
316L SST
|
6-in./150 mm
|
|
C0
|
3-in./DN 80
|
Alloy C-276
|
Flush Mount
|
|
C2
|
3-in./DN 80
|
Alloy C-276
|
2-in./50 mm
|
|
C4
|
3-in./DN 80
|
Alloy C-276
|
4-in./100 mm
|
|
C6
|
3-in./DN 80
|
Alloy C-276
|
6-in./150 mm
|
|
D0
|
4-in./DN 100
|
Alloy C-276
|
Flush Mount
|
|
D2
|
4-in./DN 100
|
Alloy C-276
|
2-in./50 mm
|
|
D4
|
4-in./DN 100
|
Alloy C-276
|
4-in./100 mm
|
|
D6
|
4-in./DN 100
|
Alloy C-276
|
6-in./150 mm
|
|
E0
|
3-in./DN 80
|
Tantalum
|
Flush Mount Only
|
|
F0
|
4-in./DN 100
|
Tantalum
|
Flush Mount Only
|
|
Mounting flange size, rating, material (high side)
|
|
|
Size
|
Rating
|
Material
|
|
M
|
2-in.
|
ANSI/ASME B16.5 Class 150
|
CS
|
|
A
|
3-in.
|
ANSI/ASME B16.5 Class 150
|
CS
|
|
B
|
4-in.
|
ANSI/ASME B16.5 Class 150
|
CS
|
|
N
|
2-in.
|
ANSI/ASME B16.5 Class 300
|
CS
|
|
C
|
3-in.
|
ANSI/ASME B16.5 Class 300
|
CS
|
|
D
|
4-in.
|
ANSI/ASME B16.5 Class 300
|
CS
|
|
P
|
2-in.
|
ANSI/ASME B16.5 Class 600
|
CS
|
|
E
|
3-in.
|
ANSI/ASME B16.5 Class 600
|
CS
|
|
X
|
2-in.
|
ANSI/ASME B16.5 Class 150
|
316 SST
|
|
F
|
3-in.
|
ANSI/ASME B16.5 Class 150
|
316 SST
|
|
G
|
4-in.
|
ANSI/ASME B16.5 Class 150
|
316 SST
|
|
Y
|
2-in.
|
ANSI/ASME B16.5 Class 300
|
316 SST
|
|
H
|
3-in.
|
ANSI/ASME B16.5 Class 300
|
316 SST
|
|
J
|
4-in.
|
ANSI/ASME B16.5 Class 300
|
316 SST
|
|
Z
|
2-in.
|
ANSI/ASME B16.5 Class 600
|
316 SST
|
|
L
|
3-in.
|
ANSI/ASME B16.5 Class 600
|
316 SST
|
|
Q
|
DN 50
|
PN 10-40 per EN 1092-1
|
CS
|
|
R
|
DN 80
|
PN 40 per EN 1092-1
|
CS
|
|
S
|
DN 100
|
PN 40 per EN 1092-1
|
CS
|
|
V
|
DN 100
|
PN 10/16 per EN 1092-1
|
CS
|
|
K
|
DN 50
|
PN 10-40 per EN 1092-1
|
316 SST
|
|
T
|
DN 80
|
PN 40 per EN 1092-1
|
316 SST
|
|
U
|
DN 100
|
PN 40 per EN 1092-1
|
316 SST
|
|
Mounting flange size, rating, material (high side)
|
|
|
Size
|
Rating
|
Material
|
|
W
|
DN 100
|
PN 10/16 per EN 1092-1
|
316 SST
|
|
7
|
4 in.
|
ANSI/ASME B16.5 Class 600
|
316 SST
|
|
1
|
N/A
|
10K per JIS B2238
|
CS
|
|
2
|
N/A
|
20K per JIS B2238
|
CS
|
|
3
|
N/A
|
40K per JIS B2238
|
CS
|
|
4
|
N/A
|
10K per JIS B2238
|
316 SST
|
|
5
|
N/A
|
20K per JIS B2238
|
316 SST
|
|
6
|
N/A
|
40K per JIS B2238
|
316 SST
|
|
Seal fill fluid (high side)
|
Specific gravity
|
Temperature limits [ambient temperature of 70° F (21° C)]
|
|
D
|
Silicone 200
|
0.93
|
-49 to 401 °F (-45 to 205 °C)
|
|
F
|
Silicone 200 for Vacuum Applications
|
0.93
|
For use in vacuum applications below 14.7 psia (1 bar-a), refer to vapor pressure curves in Rosemount DP Level Fill Fluid Specification Technical Note (00840-2100-4016).
|
|
L
|
Silicone 704
|
1.07
|
32 to 401 °F (0 to 205 °C)
|
|
C
|
Silicone 704 for Vacuum Applications
|
1.07
|
For use in vacuum applications below 14.7 psia (1 bar-a), refer to vapor pressure curves in Rosemount DP Level Fill Fluid Specification Technical Note (00840-2100-4016).
|
|
R
|
Silicone 705
|
1.09
|
68 to 401 °F (20 to 205 °C)
|
|
V
|
Silicone 705 for Vacuum Applications
|
1.09
|
For use in vacuum applications below 14.7 psia (1 bar-a), refer to vapor pressure curves in Rosemount DP Level Fill Fluid Specification Technical Note (00840-2100-4016).
|
|
A
|
SYLTHERM™ XLT
|
0.85
|
-102 to 293 °F (-75 to 145 °C)
|
|
H
|
Inert (Halocarbon)
|
1.85
|
-49 to 320 °F (-45 to 160 °C)
|
|
G
|
Glycerine and Water
|
1.13
|
5 to 203 °F (-15 to 95 °C)
|
|
N
|
Neobee® M-20
|
0.92
|
5 to 401 °F (-15 to 205 °C)
|
|
P
|
Propylene Glycol and Water
|
1.02
|
5 to 203 F (-15 to 95 °C)
|
|
Low pressure side
|
|
|
Configuration
|
Flange adapter
|
Diaphragm material
|
Sensor fill fluid
|
|
11
|
Gage
|
SST
|
316L SST
|
Silicone
|
|
21
|
Differential
|
SST
|
316L SST
|
Silicone
|
|
22
|
Differential
|
SST
|
Alloy C-276
|
Silicone
|
|
2A
|
Differential
|
SST
|
316L SST
|
Inert (Halocarbon)
|
|
2B
|
Differential
|
SST
|
Alloy C-276
|
Inert (Halocarbon)
|
|
31
|
Tuned-System Assembly with Remote Seal
|
None
|
316L SST
|
Silicone
(requires Option Code S1)
|
|
O-ring
|
|
A
|
Glass-filled PTFE
|
|
Housing material
|
Conduit entry size
|
|
A
|
Aluminum
|
½–14 NPT
|
|
B
|
Aluminum
|
M20 × 1.5
|
|
J
|
SST
|
½–14 NPT
|
|
K
|
SST
|
M20 × 1.5
|
|
P
|
Engineered polymer
|
No conduit entries
|
|
D
|
Aluminum
|
G½
|
|
M
|
SST
|
G½
|
|
Wireless transmit rate, operating frequency, and protocol
|
|
WA3
|
User Configurable Transmit Rate, 2.4GHz WirelessHART
|
|
Antenna and SmartPower
|
|
WP5
|
Internal Antenna, Compatible with Green Power Module (I.S. Power Module Sold Separately)
|
HART Revision configuration (requires HART Protocol Output Code A)
|
HR5
|
Configured for HART Revision 5
|
|
HR7
|
Configured for HART Revision 7
|
|
Extended product warranty
|
|
WR3
|
3-year limited warranty
|
|
WR5
|
5-year limited warranty
|
|
PlantWeb control functionality
|
|
A01
|
FOUNDATION fieldbus Control Function Block Suite
|
|
PlantWeb diagnostic functionality
|
|
DA0
|
Power Advisory HART Diagnostic
|
|
D01
|
FOUNDATION fieldbus Diagnostics Suite
|
|
Seal assemblies
|
|
S1
|
Assembled to One Rosemount 1199 Seal
|
|
Product certifications
|
|
E8
|
ATEX Flameproof and Dust Certification
|
|
I1
|
ATEX Intrinsic Safety and Dust
|
|
IA
|
ATEX FISCO Intrinsic Safety; for FOUNDATION fieldbus or PROFIBUS PA protocols only
|
|
N1
|
ATEX Type n Certification and Dust
|
|
K8
|
ATEX Flameproof, Intrinsic Safety, Type n, Dust (combination of E8, I1 and N1)
|
|
E4
|
TIIS Flameproof
|
|
E5
|
FM Explosion-proof, Dust Ignition-proof
|
|
I5
|
FM Intrinsically Safe, Nonincendive
|
|
IE
|
FM FISCO Intrinsically Safe; for FOUNDATION fieldbus or PROFIBUS PA protocols only
|
|
K5
|
FM Explosion-proof, Dust Ignition-Proof, Intrinsically Safe, and Division 2
|
|
C6
|
CSA Explosion-proof, Dust Ignition-proof, Intrinsically Safe, and Division 2
|
|
I6
|
CSA Intrinsic Safety
|
|
K6
|
CSA and ATEX Explosion-proof, Intrinsically Safe, and Division 2 (combination of C6, E8, and I1)
|
|
E7
|
IECEx Flameproof, Dust Ignition-proof
|
|
I7
|
IECEx Intrinsic Safety
|
|
N7
|
IECEx Type n Certification
|
|
K7
|
IECEx Flameproof, Dust Ignition-proof, Intrinsic Safety, and Type n (combination of I7, N7 and E7)
|
|
E2
|
INMETRO Flameproof
|
|
I2
|
INMETRO Intrinsic Safety
|
|
IB
|
INMETRO FISCO intrinsically safe; for FOUNDATION fieldbus or PROFIBUS PA protocols only
|
|
K2
|
INMETRO Flameproof, Intrinsic Safety
|
|
E3
|
China Flameproof
|
|
I3
|
China Intrinsic Safety
|
|
N3
|
China Type n
|
|
EM
|
Technical Regulations Customs Union (EAC) Flameproof
|
|
IM
|
Technical Regulations Customs Union (EAC) Intrinsic Safety
|
|
KM
|
Technical Regulations Customs Union (EAC) Flameproof and Intrinsic Safety
|
|
KB
|
FM and CSA Explosion-proof, Dust Ignition Proof, Intrinsically Safe, and Division 2 (combination of K5 and C6)
|
|
KD
|
FM, CSA, and ATEX Explosion-proof, Intrinsically Safe (combination of K5, C6, I1, and E8)
|
|
Shipboard approvals
|
|
SBS
|
American Bureau of Shipping
|
|
SBV
|
Bureau Veritas (BV)
|
|
SDN
|
Det Norske Veritas
|
|
SLL
|
Lloyds Register (LR)
|
|
Bolting material
|
|
L4
|
Austenitic 316 SST Bolts
|
|
L5
|
ASTM A 193, Grade B7M bolts
|
|
L6
|
Alloy K-500 Bolts
|
|
L8
|
ASTM A 193 Class 2, Grade B8M Bolts
|
|
Display and interface options
|
|
M4
|
LCD Display with Local Operator Interface
|
|
M5
|
LCD Display
|
|
Calibration certification
|
|
Q4
|
Calibration Certificate
|
|
QP
|
Calibration Certificate and tamper evident seal
|
|
QG
|
Calibration Certificate and GOST Verification Certificate
|
|
Material traceability certification
|
|
Q8
|
Material Traceability Certification per EN 10204 3.1
|
|
Quality certification for safety
|
|
QS
|
Prior-use certificate of FMEDA data
|
|
QT
|
Safety certified to IEC 61508 with certificate of FMEDA
|
|
Toolkit total system performance reports
|
|
QZ
|
Seal System Performance Calculation Report
|
|
Conduit electrical connector
|
|
GE
|
M12, 4-pin, Male Connector (eurofast)
|
|
GM
|
A size Mini, 4-pin, Male Connector (minifast)
|
|
Configuration buttons
|
|
D4
|
Analog Zero and Span
|
|
DZ
|
Digital Zero Trim
|
|
Transient protection
|
|
T1
|
Transient Protection
|
|
Software configuration
|
|
C1
|
Custom Software Configuration (completed CDS 00806-0100-4007 for wired and 00806-0100-4100 for wireless required with order)
|
|
Low power output
|
|
C2
|
0.8-3.2 Vdc Output with Digital Signal Based on HART Protocol (available with Output code M only)
|
|
Alarm levels
|
|
C4
|
NAMUR alarm and saturation levels, high alarm
|
|
CN
|
NAMUR alarm and saturation levels, low alarm
|
|
CR
|
Custom alarm and saturation signal levels, high alarm (requires C1 and Configuration Data Sheet)
|
|
CS
|
Custom alarm and saturation signal levels, low alarm (requires C1 and Configuration Data Sheet)
|
|
CT
|
Rosemount Standard low alarm
|
|
Conduit plug
|
|
DO
|
316 SST Conduit Plug
|
|
Ground screw
|
|
V5
|
External Ground Screw Assembly
|
|
Lower housing flushing connection options
|
|
|
Ring material
|
Number
|
Size (NPT)
|
|
F1
|
316 SST
|
1
|
1/4-18 NPT
|
|
F2
|
316 SST
|
2
|
1/4-18 NPT
|
|
F3
|
Alloy C-276
|
1
|
1/4-18 NPT
|
|
F4
|
Alloy C-276
|
2
|
1/4-18 NPT
|
|
F7
|
316 SST
|
1
|
1/2-14 NPT
|
|
F8
|
316 SST
|
2
|
1/2-14 NPT
|
|
F9
|
Alloy C-276
|
1
|
1/2-14 NPT
|
|
F0
|
Alloy C-276
|
2
|
1/2-14 NPT
|
|
Lower housing intermediate gasket material
|
|
S0
|
No Gasket for lower housing
|
|
SY
|
Thermo-Tork TN-9000
|
|
NACE certificate
|
|
Q15
|
Certificate of Compliance to NACE MR0175/ISO 15156 for wetted materials
|
|
Q25
|
Certificate of Compliance to NACE MR0103 for wetted materials
|
|
Typical model number: 3051L2AG0MG2AAAM5
|
Dimensional Drawing
Dimensional Drawing
Note: There are several models, to choose the correct one for your aplication, please fill the form below
