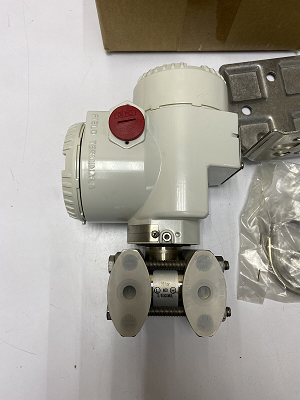

ABB Differential Pressure Transmitter 266MST NCSA6J1 L1B2M5I2C5CC

1a



pdf downloadDatasheet



  • Manufacturer : ABB
  • Product No. : 266MST NCSA6J1 L1B2M5I2C5CC
  • Model : 266MST - Differential  Pressure Transmitter – Base accuracy 0.04 %
  • Sensor Span Limits: N -20 and 2000 kPa / 0.2 and 20 bar / 2.9 and 290 psi
  • Maximum Working Pressure: - 160 bar (2320 psi)
  • Diaphragm Material / fill fluid: S - AISI 316L SST (1.4435) Silicone oil
  • Process Flanges and adapter material / connection: A - AISI 316L SST (1.4404 / 1.4408) 1/4-18 NPT female
  • Bolts Material / Gaskets Material: 6 - AISI 316L SST Perbunan
  • Housing Material / Electrical Connection: J - Aluminium alloy (DIN type) M20 x 1.5
  • Output: 1 - HART digital communication and 4 to 20 mA (Options requested by “Additional ordering code”)
  • Integral LCD: L1 - With integral LCD display
  • Mounting bracket (shape and material): B2 - For pipe mounting / AISI 316 ss
  • Language of Documentation: M5 - English
  • Additional Tag Plate: I2 - Laser printing of tag on stainless steel plate
  • Certificates: C5 - Inspection certificate EN 10204-3.1 of the pressure test
  • Certificates: CC - Separate calibration record

Basic Ordering Information

There are several Model of pressure transmitters, for more details read the PDF below

pdf downloadBasic Ordering Information

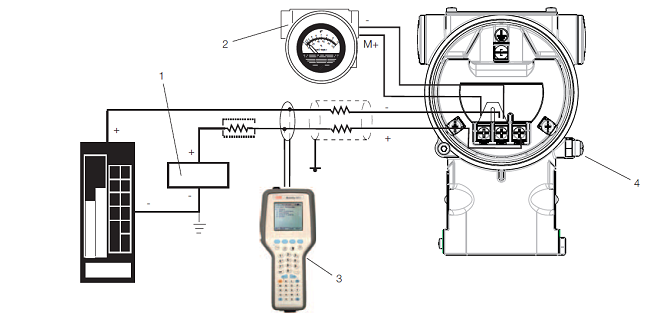

Electrical connections

7



5A 6A
7b 8a
