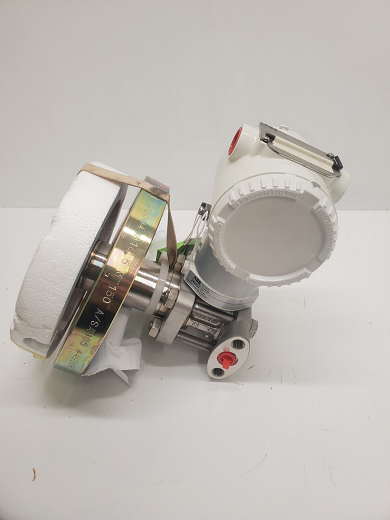

ABB Differential Pressure Transmitter 266DRHFSSA4A1-N2

Datasheet

• Manufacturer : ABB
• Product No. : 266DRHFSSA4A1-N2
• Model : 266DRH - Differential Pressure Transmitter – BASE ACCURACY 0.075%
• SENSOR - Span limits: F - 26.7 and 1600 mbar (10.7 and 642 inH2O)
• Application: S - Differential measurement at standard static pressure
• Diaphragm material / Fill fluid (wetted parts): S - AISI 316 L ss - Silicone oil
• Process flanges/adapters material and connection: A - AISI 316 (Horiz. connection) 1/4 in. – 18 NPT-f direct
• Bolts/Gasket (wetted parts): 4 - AISI 316 ss (NACE) – (MWP = 16 MPa) PTFE
• Housing material and electrical connection: A - Aluminium alloy ( barrel version) - 1/2 in. – 14 NPT
• Output/Additional options: 1 - HART and 4 to 20 mA - Advanced functionality (includes option R1)
• Configuration: N2 - Standard – Pressure = inH2O/ psi at 68 °F; Temperature = deg. F

Basic Ordering Information

There are several Model of pressure transmitters, for more details read the PDF below

Basic Ordering Information

Electrical connections
