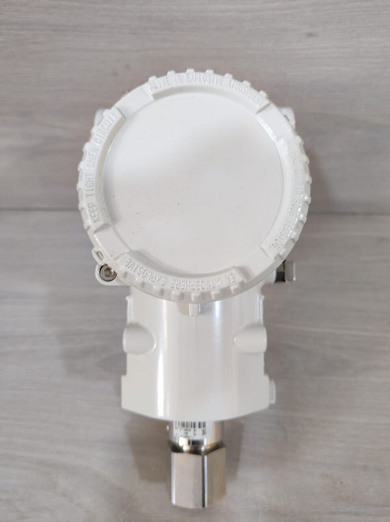

ABB Pressure Transmitter 266GSTUKBNB1 L1B7

Model 266GST is the top performance gauge pressure transmitter suitable for measuring liquid, gas or steam pressure as well as liquid level in an open tank. Thanks to its stability and reliability it works within stated performance even in extreme ambient and process conditions

Datasheet

• Manufacturer : ABB

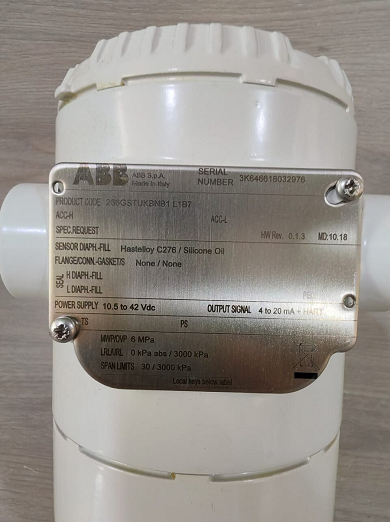

• Product No. : 266GSTUKBNB1 L1B7
• Model : 266GST - Gauge pressure transmitter – Base accuracy 0.04 %
• Sensor Span Limits: U (4 and 400 mbar, 1.6 and 160 inH2O) - 1 MPa (10 bar, 145 psi)
• Diaphragm material / filling fluid : K - Hastelloy® C-276 - Silicone oil
• Process connection material / type : B - Stainless steel AISI 316L (1.4404) - 1/2 in -14 NPT female
• Gasket Material : N - None
• Housing Material / Electrical Connection : B - Aluminium alloy (Barrel type) M20 x 1.5
• Output/Additional options: 1 - HART digital communication and 4 to 20 mA

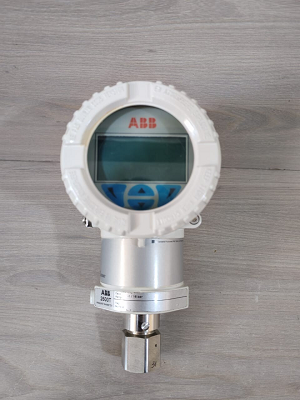

• Integral LCD display: L1 - With integral LCD display

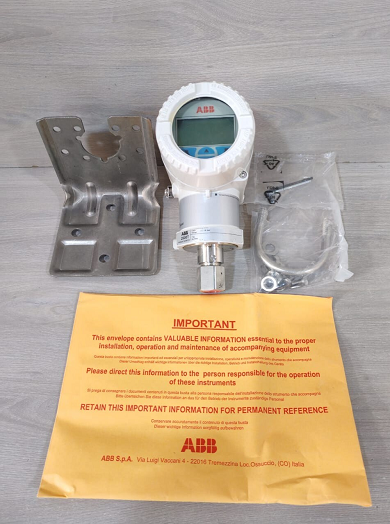

• Mounting Bracket Shape / Material: B7 - For horizontal or vertical pipe and wall mounting / AISI 316L (1.4401)

Basic Ordering Information

There are several Model of pressure transmitters, for more details read the PDF below

Basic Ordering Information

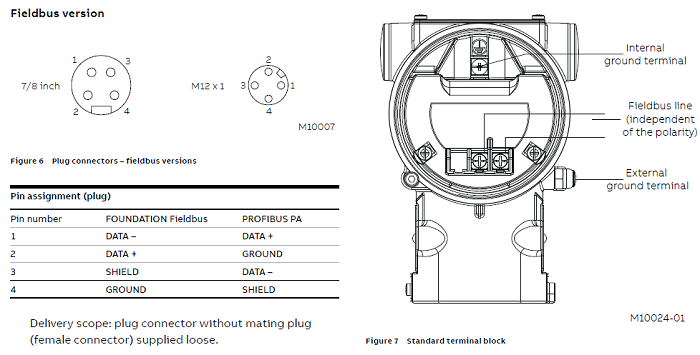

Electrical connections
