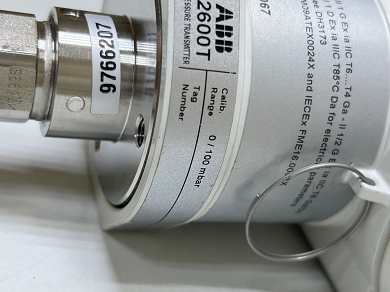

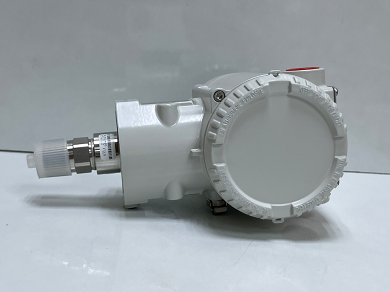

ABB Pressure Transmitter 266GSTLKTNB1-E1L1I1C1

Model 266GST is the top performance gauge pressure transmitter suitable for measuring liquid, gas or steam pressure as well as liquid level in an open tank. Thanks to its stability and reliability it works within stated performance even in extreme ambient and process conditions

Datasheet

• Manufacturer : ABB
• Product No. : 266GSTLKTNB1-E1L1I1C1
• Model : 266GST - Gauge pressure transmitter – Base accuracy 0.04 %
• Sensor Span Limits: L  - 2.5 and 250 kPa - (25 and 2500 mbar, 0.36 and 36.26 psi) - 3 MPa (30 bar, 435 psi)
• Diaphragm material / filling fluid : K - Hastelloy® C-276 - Silicone oil

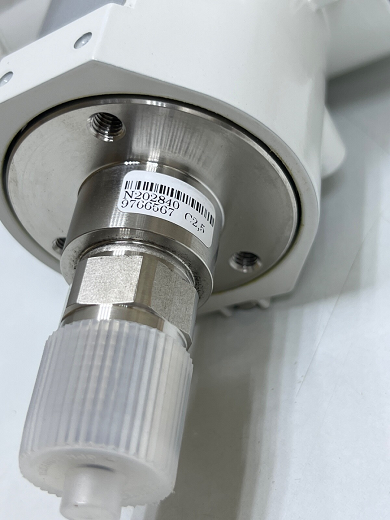

• Process connection material / type : T - Stainless steel AISI 316L (1.4404)  - 1/2 in -14 NPT male
• Gasket Material : N - None
• Housing Material / Electrical Connection : B - Aluminium alloy (Barrel type) M20 x 1.5
• Output/Additional options: 1 - HART digital communication and 4 to 20 mA

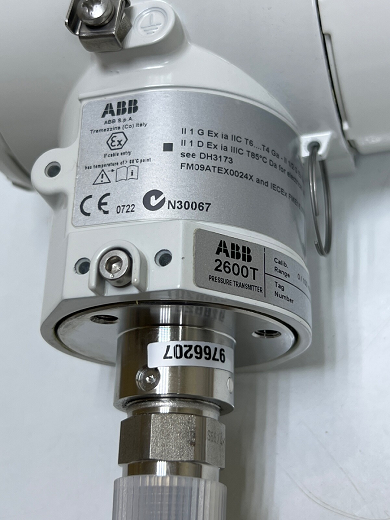

• Explosion Protection Certification: E1 - ATEX Intrinsic Safety Ex ia

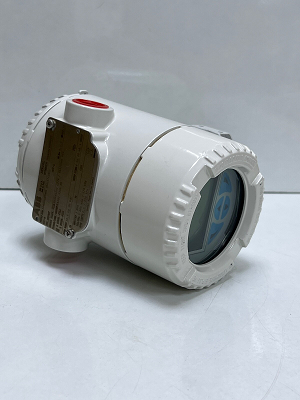

• Integral LCD display: L1 - With integral LCD display
• Additional Tag Plate: I1 - Supplemental wired-on stainless steel plate
• Certificates: C1 -Inspection certificate 3.1 to EN 10204 of calibration
• Mounting Bracket Shape / Material: B7 - For horizontal or vertical pipe and wall mounting / AISI 316L (1.4401)

Basic Ordering Information

There are several Model of pressure transmitters, for more details read the PDF below

Basic Ordering Information

Electrical connections
