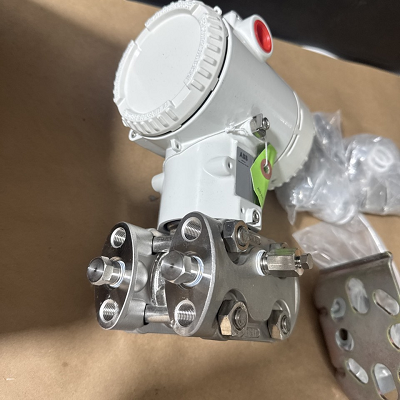

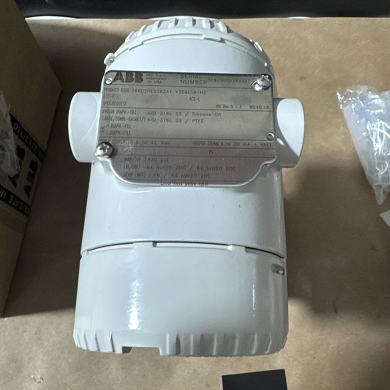

ABB Differential Pressure Transmitter 266DSHESSB2A1V2E6L5B1N2


1a



pdf downloadDatasheet



  • Manufacturer : ABB

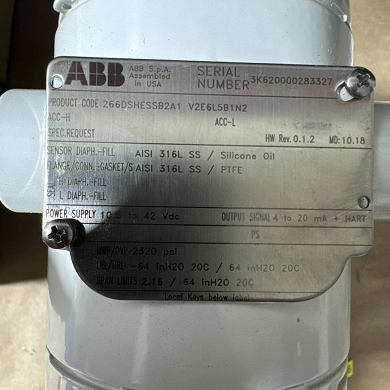

  • Product No. : 266DSHESSB2A1V2E6L5B1N2
  • Model : 266DSH - Differential Pressure Transmitter – BASE ACCURACY 0.075%
  • SENSOR - Span limits : E - 0.54 and 16 kPa - 5.4 and 160 mbar - 2.16 and 64 inH2O
  • Application: - Differential measurement at standard static pressure
  • Diaphragm material / Fill fluid: S -  AISI 316 L ss - Silicone oil - (Note 2)
  • Process flanges/adapters material and connection : B - AISI 316 L ss (Horizontal connection) - 1/2 in. – 14 NPT-f through adapter
  • Bolts/Gasket (wetted parts): - AISI 316 ss - PTFE - (Notes 1, 4, 7, 27)
  • Housing material and electrical connection: A - Aluminium alloy ( barrel version) - 1/2 in. – 14 NPT - (Note 21)
  • Output/Additional options: - HART and 4 to 20 mA - Advanced functionality (includes option R1)
  • Drain/vent valve (material and position) (wetted parts): V2 - AISI 316 L ss - on flange side top - (Notes 7, 10)
  • Hazardous area certifications: E6 - FM Approvals (USA) approval (XP, DIP, IS, NI, Type N) - (Notes 15, 21)
  • Integral LCD: L5 - Digital LCD integral display with TTG (Through-The-Glass) activated keypad - (Note 19)
  • Mounting bracket (shape and material): B1 - For pipe/wall mounting - Carbon steel - (Not suitable for AISI housing) (Note 27)
  • Configuration: N2 - Standard – Pressure = inH2O/ psi at 68 °F; Temperature = deg. F



Basic Ordering Information

There are several Model of pressure transmitters, for more details read the PDF below

pdf downloadBasic Ordering Information

Electrical connections

7

5

5A 6A
6a 1a



Transmitter Dimension

pdf downloadTransmitter Dimension
