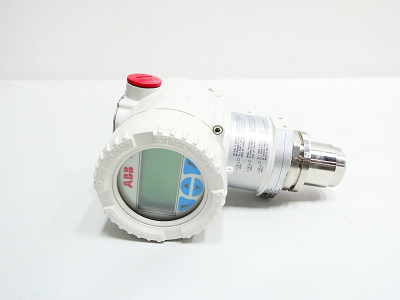

ABB Pressure Transmitter 266HSHESBA1E4L5B6N2

ABB 266HSH Pressure Transmitter is a high overload pressure transmitter that works with maximum working pressure up to 105Mpa, 15225 psi which is suitable for measuring liquid, gas, or steam pressure in a pipe or on an open tank. The communication option for ABB 266HSH includes Modbus®, along with 4-20mA HART, low-power 1-5V HART, Wireless HART, Profibus, and Foundation Fieldbus.

 Datasheet

• Manufacturer : ABB
• Product No. : 266HSHESBA1E4L5B6N2
• Model : 266HSH- Gauge Pressure Transmitter
• SENSOR - Span limits: E - 0.54 and 16 kPa  - 5.4 and 160 mbar  - 2.16 and 64 inH2O
• Diaphragm material / Fill fluid (wetted parts): S - AISI 316 L ss - Silicone oil
• Process connection (wetted parts): B - AISI 316 L ss 1/2 – 14 NPT-f female
• Housing material and electrical connection: A - Aluminium alloy ( barrel version) 1/2 – 14 NPT
• Output/Additional options: 1 - HART digital communication and 4 to 20 mA
• Hazardous area certifications: E4 - FM Approvals (Canada) approval - (Notes 8, 9, 13)
• Integral LCD: L5 - TTG (Through-The-Glass) digital LCD controlled display
• For pipe/wall moun􀆟ng - Carbon steel For: B6
• Configuration: N2 - Standard – Pressure = inH2O/ psi at 68 °F; Temperature = deg. F

Basic Ordering Information

There are several Model of pressure transmitters, for more details read the PDF below

Basic Ordering Information

Electrical connections

Dimensions Drawing

Drawing
