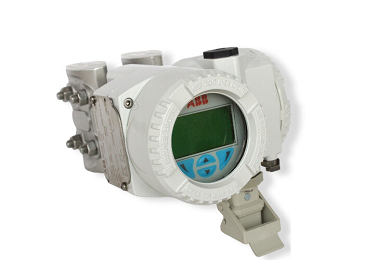

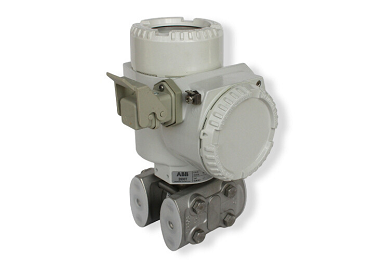

ABB Differential Pressure Transmitter 266MST FCKA6J1 B4M1T1CC

The ABB 266MST pressure transmitter utilizes a multisensor technology to measure differential and absolute pressure simultaneously. It employs a pressure sensor that converts the pressure difference into an electrical signal. This signal is then processed and used to determine the differential and absolute pressure readings. The transmitter also incorporates temperature and absolute pressure sensors to compensate for environmental effects on the main pressure sensor, ensuring accurate and stable measurements.

 Datasheet

• Manufacturer : ABB
• Product No. : 266MST FCKA6J1 B4M1TICC
• Model : 266MST - Differential pressure transmitter, base accuracy 0.04 %
• SENSOR - Span limits: F - 0.4 and 40 kPa - 4 and 400 mbar - 1.6 and 160 in. H2O
• Maximum Working Pressure: C - 16 MPa  - 160 bar  - 2320 psi
• Diaphragm Material / Fill Fluid: K - Hastelloy C-276  - Silicone oil
• Process Flanges and Adapters Material / Connection: A - AISI 316L SST (1.4404 / 1.4408)  - 1/4-18 NPT female  - direct (horizontal connection)
• Bolts Material / Gaskets Material: 6 - AISI 316L SST  - Perbunan
• Housing Material / Electrical Connection: J - Aluminium alloy  - (DIN type) M20 x 1.5
• Output: 1 - HART digital communication and 4 to 20 mA (Options requested by “Additional ordering code”)
• Mounting bracket (shape and material): B4 - For wall mounting / AISI 316 ss
• Language of Documentation: M1 - German
• Label and Tag Language: T1 - German
• Certificates: CC - Separate calibration record

Basic Ordering Information

There are several Model of pressure transmitters, for more details read the PDF below

Basic Ordering Information

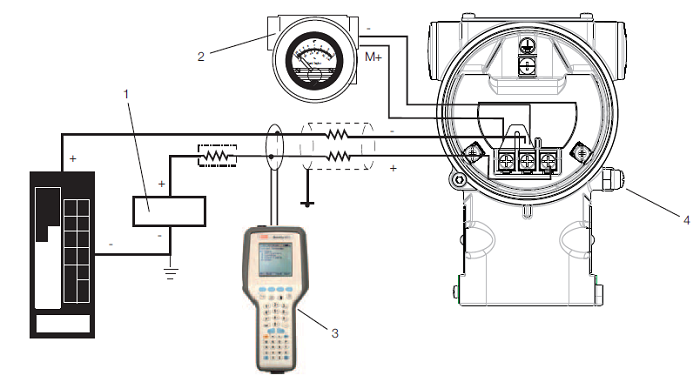

Electrical connections

Dimensions Drawing

Drawing
