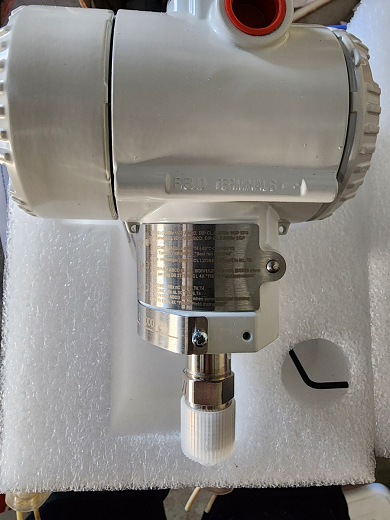

ABB Pressure Transmitter 266HSHVKTA1E6L1S2I2N2

ABB 266HSH Pressure Transmitter is a high overload pressure transmitter that works with maximum working pressure up to 105Mpa, 15225 psi which is suitable for measuring liquid, gas, or steam pressure in a pipe or on an open tank. The communication option for ABB 266HSH includes Modbus®, along with 4-20mA HART, low-power 1-5V HART, Wireless HART, Profibus, and Foundation Fieldbus.

 Datasheet

• Manufacturer : ABB

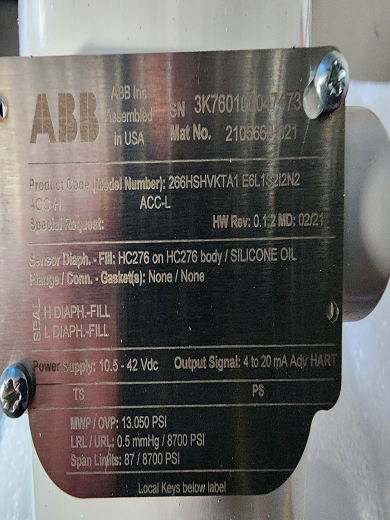

• Product No. : 266HSHVKTA1E6L1S2I2N2
• Model : 266HSH- Gauge Pressure Transmitter
• SENSOR - Span limits: V - 600 and 60000 kPa -  6 and 600 bar - 87  and 8700 psi
• Diaphragm material / Fill fluid: K - Hastelloy C-276™  - Silicone oil
• Process connection (wetted parts): T - AISI 316 L ss / 1/2 – 14 NPT-f male
• Housing material and electrical connection: A - Aluminium alloy ( barrel version)  / 1/2 – 14 NPT
• Output/Additional options: 1 - HART digital communication and 4 to 20 mA

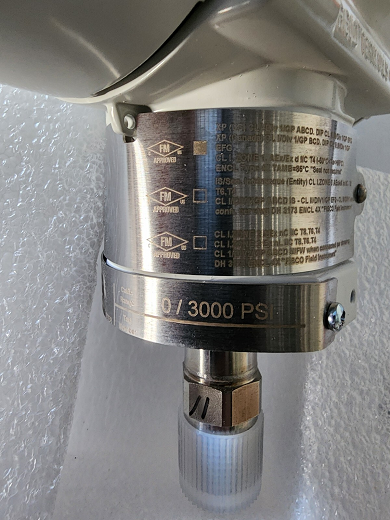

• Hazardous area certifications: E6 - FM Approvals (USA) approval (Notes 8, 9, 13)

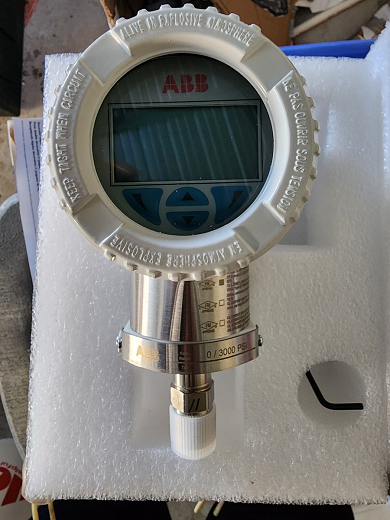

• Integral LCD: L1 - Digital LCD integral display
• Surge: S2 - Surge/Transient Protector
• Additional Tag plate: I2 - Standard – Pressure = inH2O/ psi at 68 °F; Temperature = deg. F
• Additional Tag plate: N2 - Standard – Pressure = inH2O/ psi at 68 °F; Temperature = deg. F

Basic Ordering Information

There are several Model of pressure transmitters, for more details read the PDF below

Basic Ordering Information

Electrical connections

About this Model

Dimensions Drawing

Drawing
