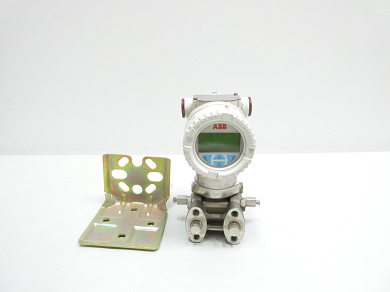

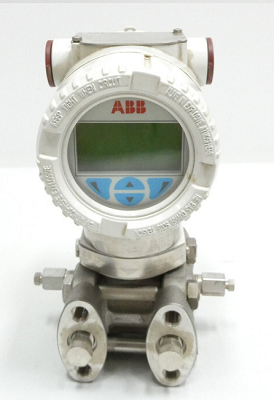

ABB Differential Pressure Transmitter 266DSHASHA4A1V2E4L5B1

Datasheet

• Manufacturer : ABB
• Product No. : 266DSHASHA4A1V2E4L5B1
• Model : 266DSH - Differential Pressure Transmitter – BASE ACCURACY 0.06 %
• SENSOR - Span limits : A - 0.05 and 1 kPa - 0.5 and 10 mbar - 0.2 and 4 inH2O
• Application: S - Differential measurement at standard static pressure
• Diaphragm material / Fill fluid: H -  Hastelloy® C-276 (on AISI seat) - Silicone oil
• Process flanges/adapters material and connection : A - AISI 316 L ss (Horizontal connection) - 1/2 in. – 14 NPT-f through adapter
• Bolts/Gasket (wetted parts): 4 - AISI 316 ss – MWP = 16 MPa - PTFE - (Notes 1, 7)
• Housing material and electrical connection: A - Aluminium alloy ( barrel version) - 1/2 in. – 14 NPT - (Note 21)
• Output/Additional options: 1 - HART and 4 to 20 mA - Advanced functionality (includes option R1)
• Drain/vent valve (material and position) (wetted parts): V2 - AISI 316 L ss - on flange side top - (Notes 7, 10)
• Hazardous area certifications: E4 - FM Approvals (Canada) approval (XP, DIP, IS, NI, Type N) - (Notes 15, 21)
• Integral LCD: L5 - Digital LCD integral display with TTG (Through-The-Glass) activated keypad - (Note 19)
• Mounting bracket (shape and material): B1 - For pipe/wall mounting - Carbon steel - (Not suitable for AISI housing) (Note 27)
