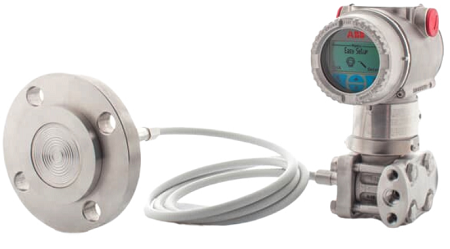

ABB Differential Pressure Transmitter 266DRHFSRRRA1L1+S26REHP1CFSM1AGSNNN
 Trasmitter Datasheet
Diaphragm Datasheet
Transmitter Feature
- Manufacturer : ABB
- Product No. : 266DRHFSRRRA1L1
- Model : 266DRH - Differential Pressure Transmitter – BASE ACCURACY 0.06 %
- SENSOR - Span limits : F - 0.67 and 40 kPa 6.7 and 400 mbar 2.67 and 160 inH2O
- Application: S - Differential measurement at standard static pressure
- Diaphragm material / Fill fluid: R - AISI 316 L ss (not wetted) Silicone oil (two seals to be quoted) (Notes 2, 19)
- Process flanges/adapters material and connection : R - AISI 316 L ss for two seals construction (Notes 4, 19)
- Bolts/Gasket: R - AISI 316 ss for standard static without gaskets for two seals construction (MWP = 16 MPa) (Notes 4, 19)
- Housing material and electrical connection: A - luminium alloy ( barrel version) 1/2 in. – 14 NPT (Note 14)
- Output/Additional options: 1 - HART and 4 to 20 mA - Advanced functionality (includes option R1)
- Integral LCD: L1 -Digital LCD integral display
Diaphragm Feature
High pressure side Option
S26RE EN diaphragm seal with rotating flange, manufactured using Taylor's All-Welded technology
- Transmitter Side of Connection: H - High pressure side
- Mounting Flange Rating / Size: P1 - EN 1092-1 16 bar / DN 80
- Mounting Flange Material: C - Carbon steel
- Extensions Length / Material: F - Flush
- Diaphragm Material: SM - AISI 316L SST
- Seal Surface Finish: 1 - Serrated
- Capillary Protection: A - AISI 316L SST armour
- Capillary Length: G - 4 m (13 ft)
- Fill Fluid: S - Silicone oil PMX 200 10 cSt
- Flushing Ring Hole / Thread: N - None
- Flushing Ring Material: N - None
- Flushing Ring Plug / Gasket: N - No plug / no gasket
Low pressure side Option
S26RE EN diaphragm seal with rotating flange, manufactured using Taylor's All-Weldedtechnology
- Transmitter Side of Connection: L - Low pressure side
- Mounting Flange Rating / Size: P1 - EN 1092-1 16 bar / DN 80
- Mounting Flange Material: C - Carbon steel
- Extensions Length / Material: F - Flush
- Diaphragm Material: SM - AISI 316L SST
- Seal Surface Finish: 1 - Serrated
- Capillary Protection: A - AISI 316L SST armour
- Capillary Length: G - 4 m (13 ft)
- Fill Fluid: S - Silicone oil PMX 200 10 cSt
- Flushing Ring Hole / Thread: N - None
- Flushing Ring Material: N - None
- Flushing Ring Plug / Gasket: N - No plug / no gasket
Basic Ordering Information Transmitter
There are several Model of pressure transmitters, for more details read the PDF below
Basic Ordering Information
Electrical connections
Rotating flange diaphragm seals – flush and extended (S26RA, S26RE, S26RH and S26RJ
The extended and flush diaphragm remote seal is designed to connect to flanged pipe fitting, according to ASME B16.5 (S26RA), EN 1092-1 (S26RE), JIS B 2220 standards (S26RJ) or ISO 10423 (S26RH). For liquid level measurement installations the seal connects to a flanged tank nozzle, compliant to the relevant standard. The sealing is provided by a selectable smooth or serrated gasket seat surface finish. The mounting flange is of rotating type and can be supplied on carbon steel or in stainless steel AISI 316
 Figure 2: Flush rotating-flange seals (flushing ring as an option)
Figure 3: Extended rotating-flange seals
Figure 4: Flush rotating-fange (API) ring-joint construction
|
