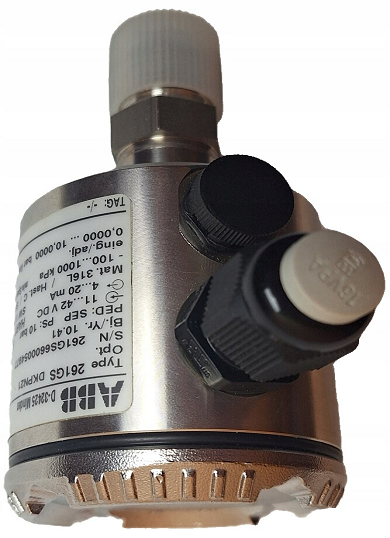

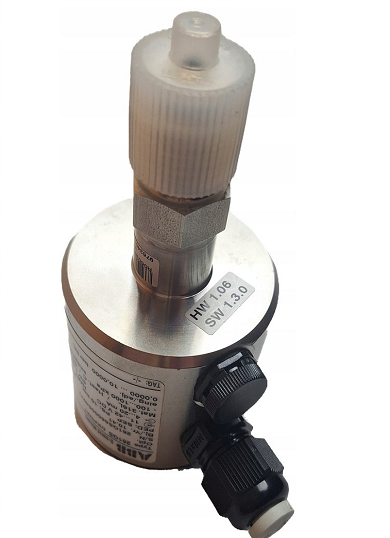

ABB Pressure Transmitter 261GSDKPN21

The compact transmitter class for gauge pressure within the ABB 2600T series. The reliable sensing system with the very latest digital technologies, provides a large turndown ratio of up to 20:1.
The compact, robust transmitter housing is made of 316 stainless steel as a standard. Due to its high corrosion resistance it can be used in a wide variety of process and ambient conditions without any problems.
The user friendly display allows simple and intuitive local transmitter operation. Full device support, including diagnostic/maintenance information is guaranteed via the Device Type Manager software used in either a stand alone or system engineering tool.

The tranmsitter provides local zero and span adjustments even without display.

• Base accuracy: ±0.1 %
• Span limits: 0.3 to 60000kPa; 1.2inH2O to 8700psi
• 4 to 20 mA output with HART communication as standard
• Conforms to SIL2 acc. to IEC 61508 / IEC 61511
• Full compliance with PED Category III

 Datasheet

• Manufacturer : ABB
• Product No. : 261GSDKPN21
• Model : 266GS- Gauge Pressure Transmitter
• SENSOR - Span limits: D - 50...1000 kPa 0.5...10 bar 7.25...145 psi 2 MPa, 290 psi
• Diaphragm material / Fill fluid: K - Hastelloy C-276™  - Silicone oil
• Process connection material / Process connection: P - AISI 316L ss / 1.4404 DIN EN 837-1 G 1/2 B
• Cover: N - Aluminium alloy ( barrel version)  / 1/2 – 14 NPT
• Electronic housing: 2 - AISI 316L ss / 1.4404 M16 x 1.5 (with cable gland made of plastic)
• Output / Additional options: 1 - HART digital communication and 4...20 mA Options requested

Basic Ordering Information

There are several Model of pressure transmitters, for more details read the PDF below
