ABB Gauge Pressure Transmitter PGS100CS9A1ABYSH D4E9HCMBULTU

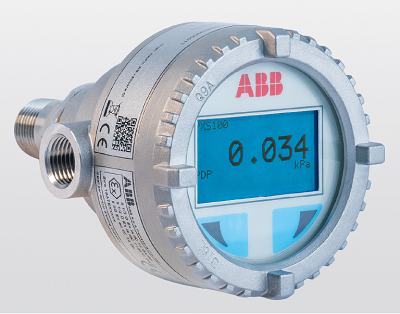

Model PGS100 is the compact, reliable, essential gauge pressure transmitter suitable for liquid, gas or steam applications. It is a straightforward and robust device designed for rapid delivery and easy installation and use. Thanks to its rugged design offering high resistance in even the most demanding environments, it is a competitive solution for most applications, including ones in hazardous areas.

Datasheet

Manufacturer : ABB

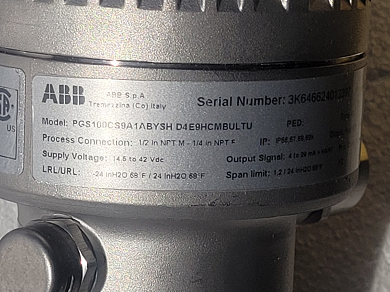

Product No. : PGS100CS9A1ABYSH D4E9HCMBULTU
Model : PGS100 - Gauge Pressure Transmitter
Sensor range: C - kPa 60 mbar 24 in H2O
Maximum working pressure: S9 - Standard by design according to sensor range
Diaphragm material: A - AISI 316 L ss
Fill fluid: 1 - Silicone oil
Process connection material: A - AISI 316L ss

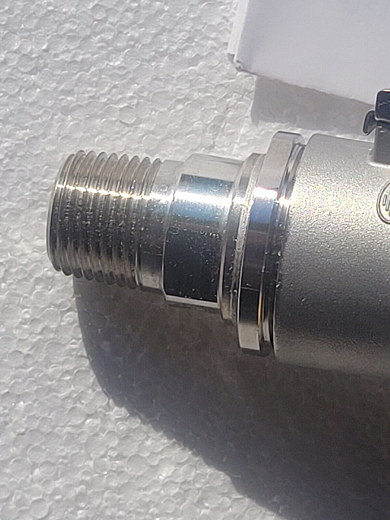

Process connection size: B - 1/2 in - 14 NPT male / 1/4 in - 18 NPT female (adapter compatible)
Bolts and gaskets: Y - None
Housing material / Electrical connection S - AISI 316 L ss / 1/2 in-14 NPT female thread (through adapter - supplied loose)
Protocol/Output: H- HART digital communication and 4 – 20 mA (Easy setup menu is available for configuration settings)
LCD Display (see FOOTNOTE): D4 - Backlit glass touch LCD display with 2-button keypad
Extended performances: E9 - ± 0.10 % extended base accuracy
Hazardous area certifications (see relevant paragraph for complete detailed markings): HCM - CSA approvals (USA and Canada) IS (Gas and Dust) (Note 4)

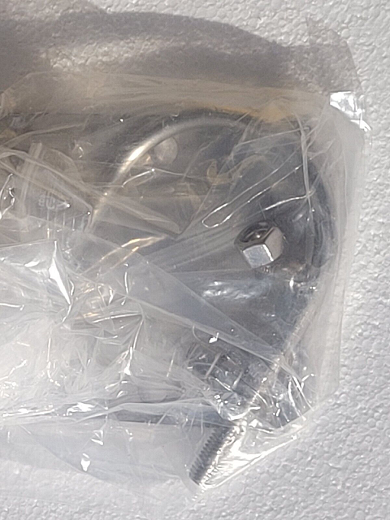

Mounting bracket: BU - Universal for pipe or wall mounting / AISI 304 ss (1.4301)
Labels: LTU - Label and display visualization in imperial units (Pressure = inH2O/ psi at 68 °F; Temperature = deg. F)
