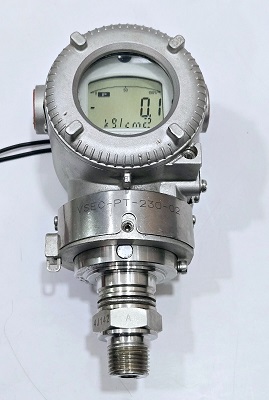

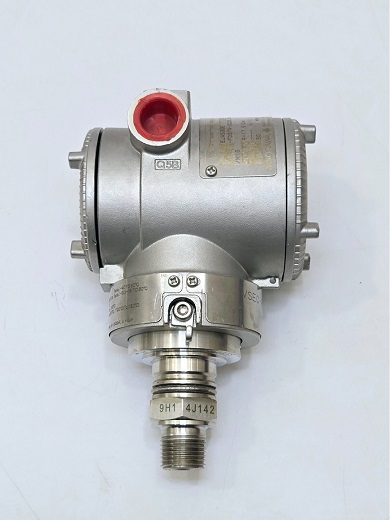

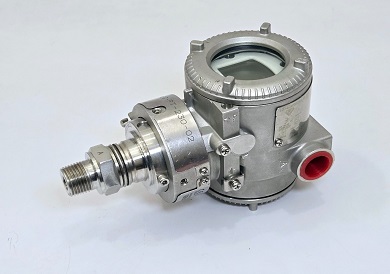

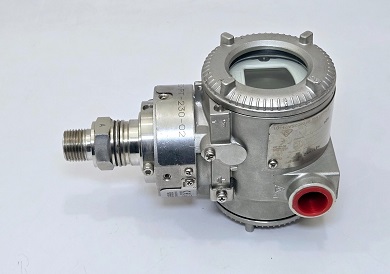

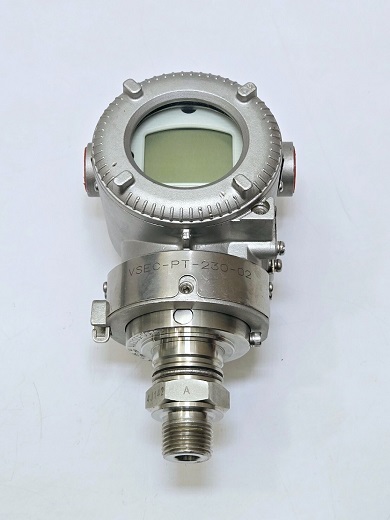

Yokogawa EJA530E Gauge Pressure Transmitter Style S1

The EJA-E series of transmitters is Yokogawa's most recent evolution of the DPharp family. Released in 2012, it combines the ruggedness and success of the work-horse EJA-E series with the performance of the thoroughbred EJX-A series to deliver the type of product you have come to expect from Yokogawa. This transmitter is one of the simplest and most reliable on the market

Transmitter Datasheet

Transmitter Feature

• Manufacturer : Yokogawa
• Product No. : EJA530E FDS7N 022DL/KS26
• Model : EJA530E - Gauge pressure transmitter
• Output signal: F - Digital communication (FOUNDATION Fieldbus protocol, refer to  GS 01C31T02-01EN)
• Measurement span (capsule: D - 5 to 50 MPa (720 to 7200 psi) (note*10)
• Wetted parts material (note *2) : S -  316L SST / Hastelloy C-276 (note *3)  316L SST
• Process connections : 7 - 1/2 NPT male
• Always N : N -
• Always 0:  0 -
• Amplifier housing: 2 - Cast aluminum alloy with corrosion resistance properties (note *5)
• Electrical connection: 2 - 1/2 NPT female, two electrical connections without blind plugs
• Integral indicator: D - Digital indicator (note *8)
• Mounting bracket: L - 316 SST 2-inch pipe mounting
• Factory Mutual: KS26 - ATEX

Basic Ordering Information Transmitter

There are several Model of pressure transmitters, for more details read the PDF below

Basic Ordering Information

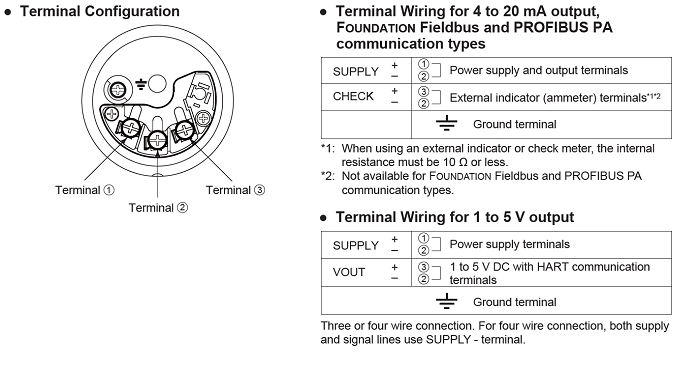

Electrical connections
