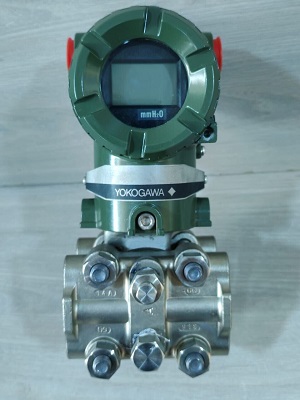

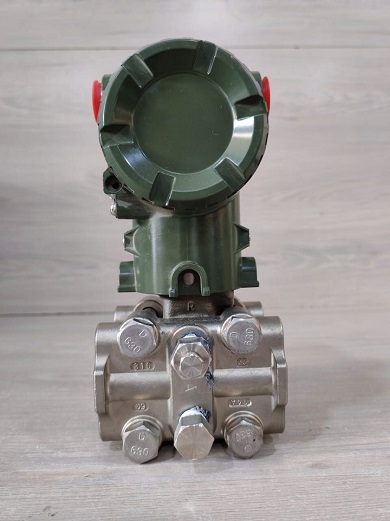

Yokogawa EJA110 DLS4B-92NA Differential Pressure Transmitter (S2 Style)

The Yokogawa EJA110 differential pressure transmitter works by measuring the pressure difference between two points using a sensing diaphragm and converting this difference into an electrical signal. This signal is then processed and calibrated to provide an accurate measurement of the pressure difference, which can be used for various applications like flow, level, or density measurement.

Transmitter Datasheet

Transmitter Feature

• Manufacturer : Yokogawa

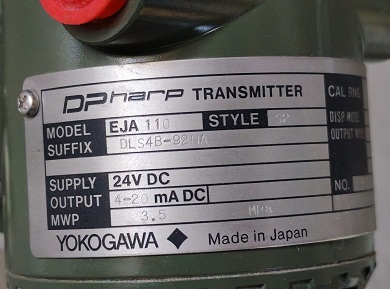

• Product No. : EJA110 DLS4B-92NA
• Model : EJA110 - Differential pressure transmitter
• Output signal: D - 4 to 20 mA DC with digital communication (BRAIN protocol)
• Measurement span (capsule): L - 0.5 to 10 kPa {50 to 1000 mmH2O} {2 to 40 inH2O} {5 to 100 mbar}
• Wetted parts material (note *11) : S -  [Body note*2] SCS14A / [Capsule] SUS316L (note*5) / [Vent plug] SUS316 (note*13)

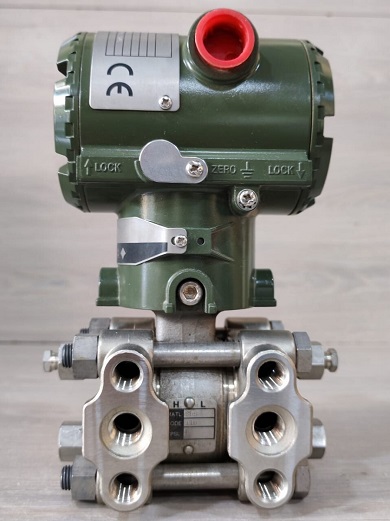

• Process connections : 4 - with 1/2 NPT female process connector
• Installation : 9 - Horizontal impulse piping type, left side high pressure (note*8)
• Electrical connection: 2 - 1/2 NPT female, two electrical connections without blind plug

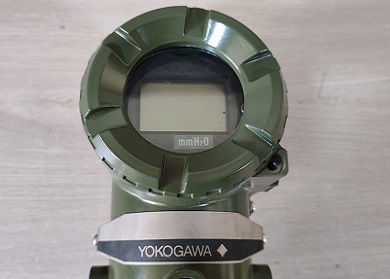

• Integral indicator: N - (None)
• Mounting bracket: A - SECC Carbon steel 2-inch pipe mounting (flat type)

Basic Ordering Information Transmitter

There are several Model of pressure transmitters, for more details read the PDF below

Basic Ordering Information

Electrical connections
