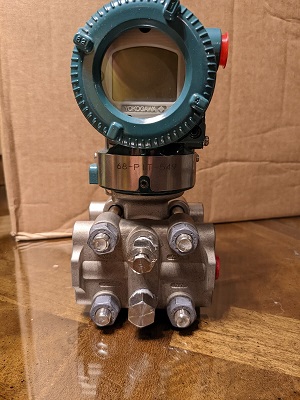

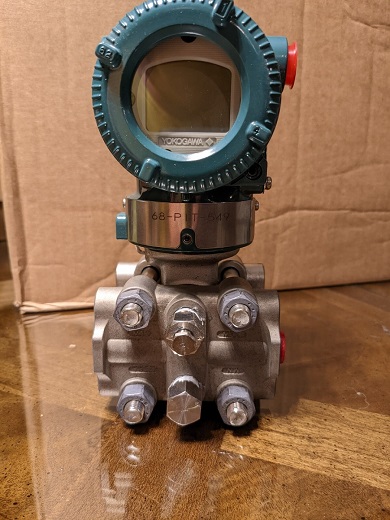

YOKOGAWA Gauge Pressure Transmitter EJX430A-EAB4G-912EB/FF1/D1

The Yokogawa EJX430A gauge pressure transmitter utilizes a single-crystal silicon resonant sensor to accurately measure liquid, gas, or steam pressure. It converts the measured pressure into a 4-20 mA DC signal output. The transmitter also offers features like quick response times, remote setup and monitoring via BRAIN or HART communications, and advanced diagnostics.

Transmitter Datasheet

Transmitter Feature

• Manufacturer : Yokogawa
• Product No. : EJX430A-EAB4G-912EB/FF1/D1
• Model : EJX430A - Gauge pressure transmitter
• Output signal: E - 4 to 20 mA DC with digital communication (HART 5 protocol)
• Measurement span (capsule: A - 0.0175 to 3.5 MPa (2.5 to 500 psi)
• Wetted parts material (note *2) : B -  see Table. Wetted Parts Materials
• Process connections : 4 - with 1/2 NPT female process connector
• Bolts and nuts material: G - 316L SST
• Installation: 9 - Horizontal piping and left side high pressure
• Amplifier housing: 1 - Cast aluminum alloy
• Electrical connection: 2 - 1/2 NPT female, two electrical connections without blind plugs
• Integral indicator: E - Digital indicator with the range setting switch (push button) note *7
• Mounting bracket: B - 304 SST 2-inch pipe mounting, flat type (for horizontal piping)
• Factory Mutual (FM): FF1 - see description below
• Calibration units (note*4): D1 - P calibration (psi unit) (See Table for Span and Range Limits.)

Basic Ordering Information Transmitter

There are several Model of pressure transmitters, for more details read the PDF below

Basic Ordering Information

Electrical connections
