Yokogawa Differential Pressure Transmitter EJA118W DHHA1FB-BA02-97EA/FF1 (Style S2)

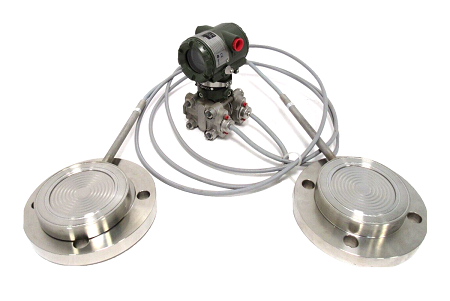

The Yokogawa EJA118W is a diaphragm-sealed differential pressure transmitter. It works by using a diaphragm seal to isolate the pressure-sensing element from the process medium, which can be liquid, gas, or steam. The pressure difference between two points is measured, and this is converted into a 4-20mA DC signal, which can be used for remote monitoring and control.

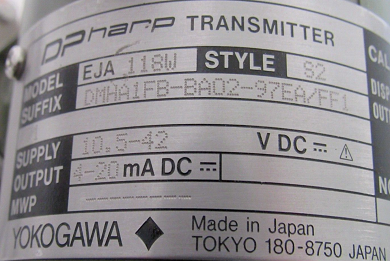

Transmitter Datasheet

Transmitter and Flange Feature

• Manufacturer : Yokogawa
• Product No. : EJA118W DHHA1FB-BA02-97EA/FF1
• Model : EJA118W - Differential pressure transmitter
• Output signal: D - 4 to 20 mA DC with digital communication (BRAIN protocol)
• Measurement span (capsule: H - 25 to 500 kPa {0.25 to 5 kgf / cm2}
• Wetted parts material (note *1) : H -  [Diaphragm] Hastelloy C-276 /  [Others] Hastelloy C-276
• Process flange rating: A1 - ANSI class 150
• Process flange size / material: F - 3-inch (80 mm) / JIS SUS316
• Cover flange bolts material: B - JIS SUS630
• Fill fluid: B - For general use (silicone oil) (process temperature) (Ambient temp.] –30 to 180°C –15 to 60°C)
• Always A: A
• Capillary Length: 02 - 2 metetes (Example for 2 m: 02)
• Installation: 9 - Horizontal impulse piping type, left side high pressure)
• Electrical connection: 7 - 1/2 NPT female, two electrical connections and a blind plug
• Integral indicator: E - Digital indicator with the range setting switch
• Mounting bracket: A - JIS SECC 2-inch pipe mounting (flat type)
• Factory Mutual (FM): FF1 - see Description

Basic Ordering Information Transmitter

There are several Model of pressure transmitters, for more details read the PDF below

Basic Ordering Information
