Yokogawa Differential Pressure Transmitter EJA118W-EMSA1FB-AA03-97DB/T/D4/Z

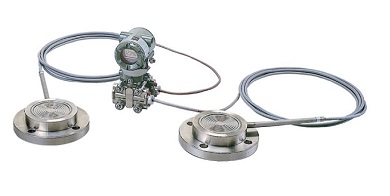

The Yokogawa EJA118W is a diaphragm-sealed differential pressure transmitter. It works by using a diaphragm seal to isolate the pressure-sensing element from the process medium, which can be liquid, gas, or steam. The pressure difference between two points is measured, and this is converted into a 4-20mA DC signal, which can be used for remote monitoring and control.

Transmitter Datasheet

Transmitter Feature

• Manufacturer : Yokogawa
• Product No. : EJA118W-EMSA1FB-AA03-97DB/T/D4/Z
• Model : EJA118W = Diaphragm sealed differential pressure transmitter (Flush diaphragm type)
• Output Signal : E = 4 to 20 mA DC with digital communication (HART protocol, see IM 01C22T01-01E)
• Measurement span (capsule) : M = 2.5 to 100 kPa {250 to 1000 mmH2O}
• Wetted parts material : S = Diaphragm: JIS SUS316L | JIS SUS316L
• Process flange rating : A1 = ANSI class 150
• Process flange size / material : F = 3-inch (80 mm) / JIS SUS316
• Cover flange bolts material : B = JIS SUS630
• Fill fluid : A = For general use (silicone oil) | Process temp.: –10 to 250°C | Ambient temp.:–10 to 60°C
• - : A = Always A
• Capillary length (m) : 03 = 3m
• Installation : 9 = Horizontal impulse piping type, left side high pressure
• Electrical connection : 7 = 1/2 NPT female, two electrical connections and a blind plug
• Integral indicator : D = Digital indicator
• Mounting bracket : B = JIS SUS304 2-inch pipe mounting (flat type)
• Optional codes : /T/D4/Z
• Teflon film : T = With FEP film and fluorinated oil | Working range: 20 to 150°C, 0 to 2 MPa {0 to 20 kgf/cm2} | (Not usable under vacuum)
• Calibration units : D4 = M calibration (kgf/cm2 unit ) - Span: 250 to 10000 | Range: -10000 to 10000
• Z = N/A
• Weight : 21.7 kg (47.8 lb)
• Shipping Weight : 23 Kg

Basic Ordering Information Transmitter

There are several Model of pressure transmitters, for more details read the PDF below
