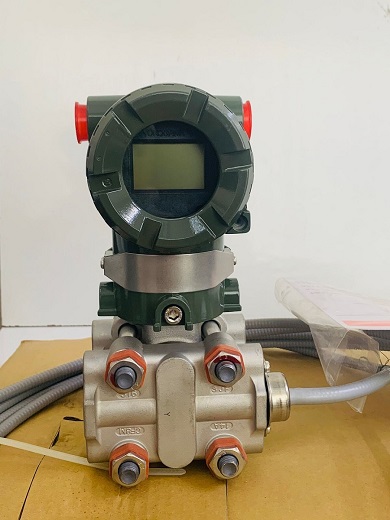

Yokogawa EJA438W-EBHA4BB-AA05-92DA-FU1-M05-T39 Pressure Transmitter

The Yokogawa EJA438W is a diaphragm seal gauge pressure transmitter that measures the pressure of liquids, gases, or steam. It utilizes a diaphragm seal to isolate the pressure-sensing assembly from the process medium. The pressure being measured is converted into a 4-20 mA DC output signal. The EJA438W also supports remote setup and monitoring through communication protocols like BRAIN or HART

Transmitter Datasheet

Transmitter Feature

Manufacturer: Yokogawa

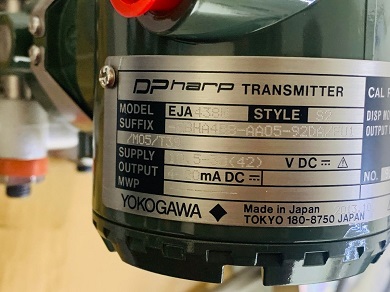

Product No. : EJA438W-EBHA4BB-AA05-92DA-FU1-M05-T39
Model: EJA438W- Diaphragm Sealed Gauge Pressure transmitter (Flush diaphragm type)
Output signal: E = 4 to 20 mA DC with digital communication (HART protocol, refer to GS 01C22T01-00EN)
Measurement span (capsule) : B = 0.46 to 14 MPa {4.6 to 140 kgf/cm2}{66 to 2000 psi}{4.6 to 140 bar}
Wetted parts material (note*1): H = [Diaphragm Hastelloy C-276 (note *7)] - [Others Hastelloy C-276 (note*7)]
Process flange rating: A4 = ANSI Class 600
Process flange size / material: B = 2-inch (50 mm) / JIS SUS304 (note *8)
Cover flange bolts material: B= JIS SUS630
Fill fluid: A (note 2)= For general use (silicone oil) [Process temp. -10 to 250 °C] - [Ambient temp. -10 to 60 °C]
Always A: A

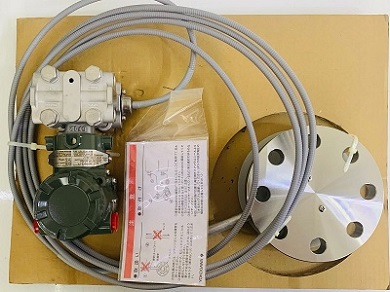

Lenthg Capillary : 05 = 5 meters
Installation : 9 = Horizontal impulse piping type, left side high pressure

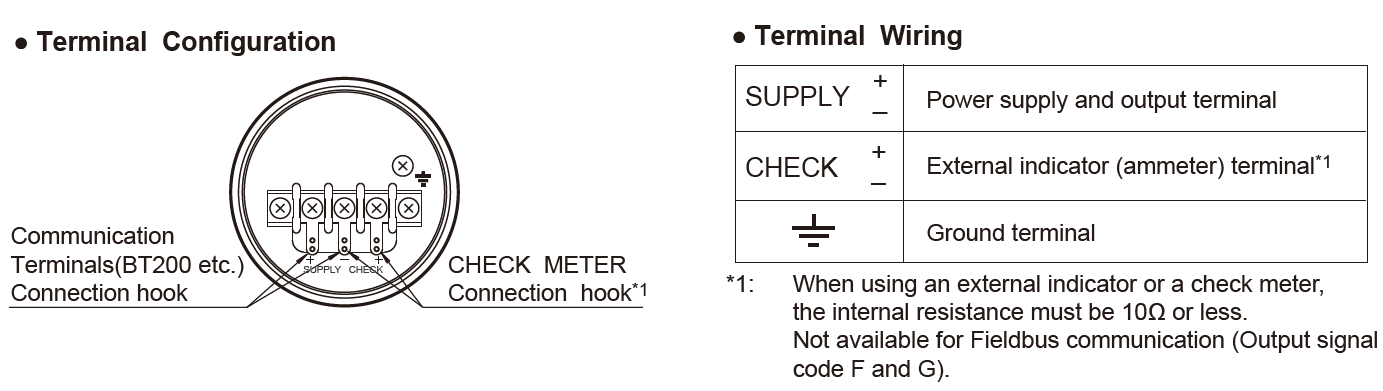

Electrical connection: 2 =1/2 NPT female, two electrical connections without blind plug
Integral indicator: D =Digital indicator
Mounting bracket: A = JIS SECC 2-inch pipe mounting (flat type)
Factory Mutual (FM): FU1 =Combined FF1 and FS1 (note *1 *3 *4)
Mill Certificate: M05 = Process flange, Block - For model EJA438W
Pressure test/ Leak test Certificate (note *12) : T39 = For B-capsule: ANSI/JPI Class 600 / 14 MPa {140 kgf/cm2} EJA438W - Nitrogen ( N2 ) Gas *13 Retention time: 10 minutes
