Yokogawa EJX118A-EHSCG-919DJ-WA43C2HW00-AA26/KS21/D3/TF1 Differential Pressure Transmitter

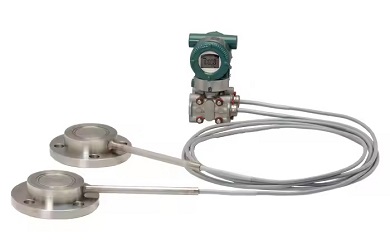

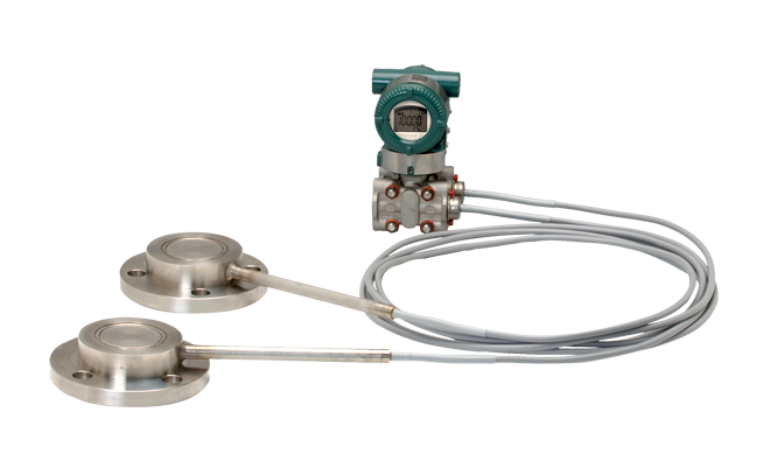

The Yokogawa EJX118A, a diaphragm-sealed differential pressure transmitter, works by utilizing a DPharp sensor to measure differential pressure, static pressure, and sensor temperature. This sensor converts the pressure difference into an electrical signal, which is then outputted as a 4-20 mA DC signal. The transmitter also incorporates advanced diagnostics to detect issues like impulse line blockages and monitor heat traces

Transmitter Datasheet

Transmitter Feature

• Manufacturer: Yokogawa
• Product No. : EJX118A-EHSCG-919DJ-WA43C2HW00-AA26/KS21/D3/TF1
• Model: EJX118A- Flange mounted differential pressure transmitter

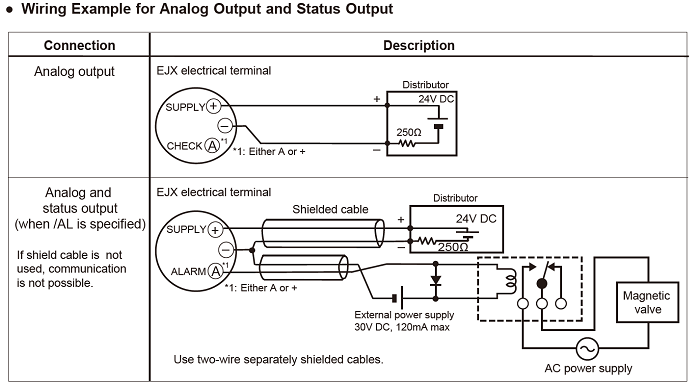

• Output signal: E = 4 to 20 mA DC with digital communication (HART 5 protocol)
• Measurement span (capsule) : H = 10 to 500 kPa (40 to 2000 inH2O)
• Always S: S
• Always C: C
• Coverflange bolts and nuts material: G = 316L SST
• Installation: 9 = Horizontal piping type and left side high pressure
• Amplifier housing: 1 = Cast aluminum alloy

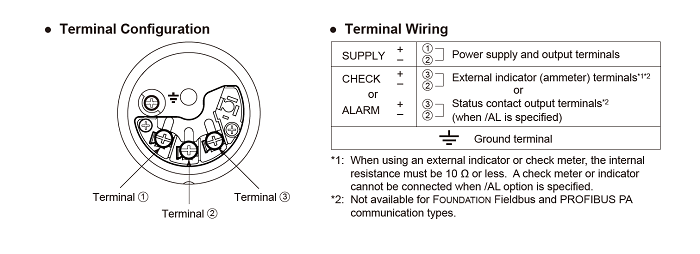

• Electrical connection: 9= M20 female, two electrical connections with a blind plug (note *3)
• Integral indicator : D = Digital indicator (note*4)
• Mounting bracket: J = 316 SST 2-inch pipe mounting, flat type (for horizontal piping)

Section 2 - Flange information

• Process connection style : W = Flush type Certificate: KEMA 02ATEX2148
• Flange rating : A4 = DIN PN25/40
• Flange size : 3 = 3-inch (80mm)
• Flange material : C = 316 SST (note *11 )
• Gasket contact surface (note*1): 2 = Flat (no serration)
• Wetted parts material (high pressure side) (note *9): HW = [Diaphragm Hastelloy C-276( note *9#)] - [Others Hastelloy C-276 (note*9#)]
• Flushing connection ring (note *2): 0 = [Ring None] - [Vent/Drain plugs --] - [Material ---]
• Extension: 0 = None
• Fill fluid (note*3): A = For high temperature use (Silicone oil) - [Process temperature –10 to 250°C ] - [Ambient temperature –10 to 60°C]
• Capillary connection: A= Side of diaphragm seal unit
• Always 2: 2
• Lenthg capillary : 6 = 6 meters
• ATEX: KS21= see table KS21 on datasheet
• Calibration units (note*3) : D3= (See Table for Span and Range Limits.)
• Teflon film ( note *2 *11 *19): TF1 -  see table TF1 on datasheet
