YOKOGAWA EJX630A-JDS4N-2DEL-GS12-D3-T15-N4-M15 + R/DFSBFr-TXMH-XN5-1669-SS-HC-F8-C1-07/FWS/IC1/NACE/BAS Pressure Transmitter

The Yokogawa EJX630A is a high-performance gauge pressure transmitter that utilizes a single crystal silicon resonant sensor. It accurately measures liquid, gas, or steam pressure by converting the pressure into a 4 to 20 mA DC output signal. The transmitter also incorporates Yokogawa's DPharp sensor technology, which provides reliable and accurate measurements.

Transmitter Datasheet

Transmitter Feature

Manufacturer : Yokogawa
Product No. : EJX630A-JDS4N-2DEL-GS12-D3-T15-N4-M15

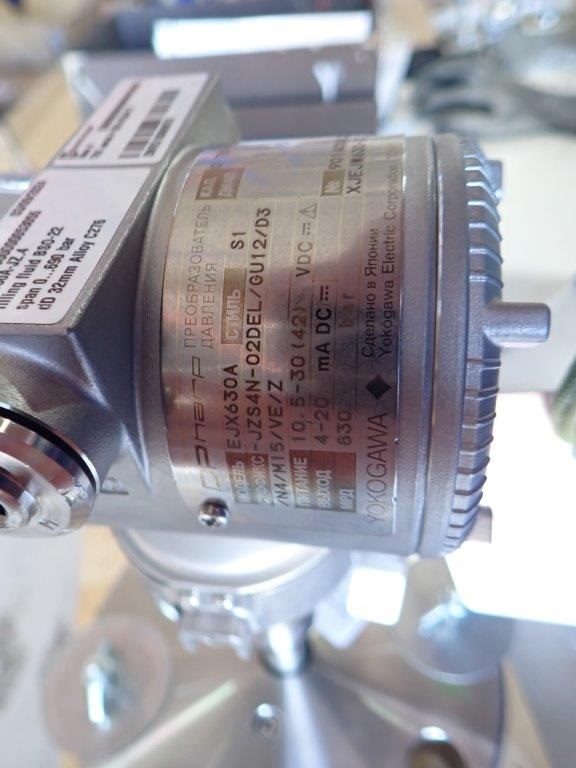

Model : EJX630A - Gauge pressure transmitter
Output signal: J - 4 to 20 mA DC with digital communication (HART 5 / HART 7 protocol)
(Refer to GS 01C25T01-01EN)
Measurement span (capsule): D - 0.35 to 70 MPa (50.8 to 10150 psi)
Wetted parts material (note *2) : S - Process connection 316L SST / Diaphragm Hastelloy C-276 *1
Process connections : 4 - 1/2 NPT female
Always N : N -
Always 0: 0 -
Amplifier housing: 2 - ASTM CF-8M stainless steel (note *5)
Electrical connection: D - M20 female, two electrical connections and a 316 SST blind plug
Integral indicator: E - Digital indicator (note *7)
Mounting bracket: L - 316 SST 2-inch pipe mounting
EAC (Ex): GS12 - see PDF here
Calibration units (note *3): D3 - P calibration (psi unit) / (See Table for Span and Range Limits.)
Pressure test/ Leak test certificate (note *12): T15 - Test Pressure: 70 MPa (10150 psi) (note*10)
Wired tag plate: N4 - 316 SST tag plate wired onto transmitter
Material certificate (note *6): M15 - Process Connector

Diaphragm Seals Feature (Flange)

Manufacturer : Yokogawa
Product No. : R/DFSBFr-TXMH-XN5-1669-SS-HC-F8-C1-07/FWS/IC1/NACE/BAS

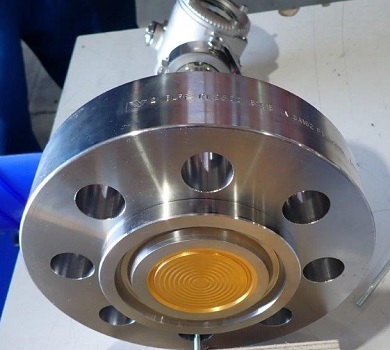

Diaphragm Seal: DFS-BFr - Diaphragm Seal - Blind flange, Ring Joint Facing
Model : TXMH - EJA-E / EJX-A 100, 300 & 400 Series; 4-20 mA + digital communication
XN5 - TXD_no N5 / W available

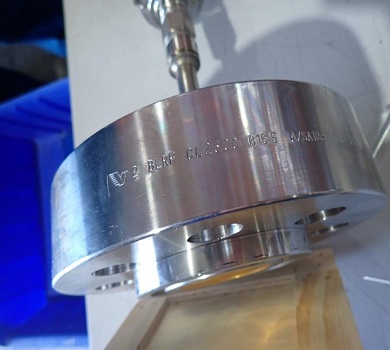

Flange Size & Rating: 1669 - 1-13/16” / 6BX 69MPa (10kPSI) / acc.API 6A ISO 10423 - TYPE 6BX
Flange Material: SS - SS AISI 316(L)
Diaphragm Material: HC - Alloy C276
Fill Fluid: F8 - BSO-21(<7m,no /IC1) / Silicon Oil / -40/+315°C / -40/+599°F
Capillary Size / Type (AISI 316 Stainless Steel Armoured): C1 - Capillary (2mm ID) - Axial
Capillary Length: 07 - 7 m / 23 ft.
Options: FWS - Full Welded construction for 500/600 series / recomm. for vacuum service (< 500 mbara)
Options: IC1 -Capillary ID 1 mm. / 0,04”
Options: NACE - NACE MR01-75 (ISO15156) or MR0103 (ISO17945) compliance
Options: BAS -Basecal performance calculation report
