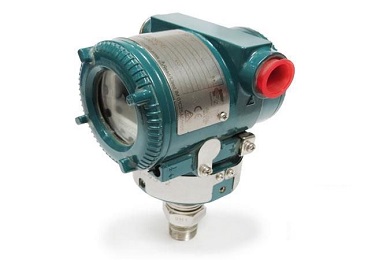

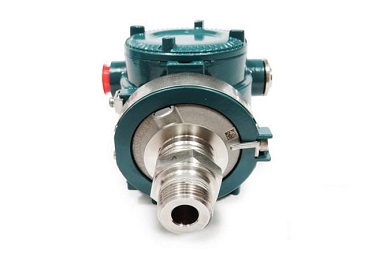

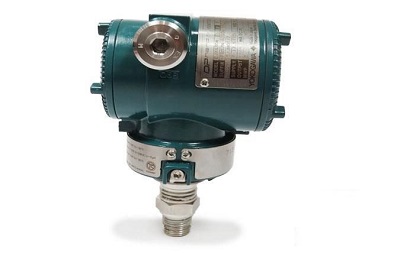

Yokogawa EJX630A‐JDS4N‐02DEL/GS12/D3/A/T15/N4/M15/SLT Pressure Transmitter

The Yokogawa EJX630A is a high-performance gauge pressure transmitter that utilizes a DPharp digital sensor to measure liquid, gas, or steam pressure. The sensor features two single-crystal silicon resonators that vibrate at their natural frequencies. When pressure is applied, one resonator experiences tension while the other experiences compression, and this change is detected and converted into a 4-20 mA DC signal.

Transmitter Datasheet

Transmitter Feature

Manufacturer : Yokogawa
Product No. : EJX630A‐JDS4N‐02DEL/GS12/D3/A/T15/N4/M15/SLT
Model : EJX630A - Gauge pressure transmitter
Output signal: J - to 20 mA DC with digital communication (HART 5 / HART 7 protocol) (Refer to GS 01C25T01-01EN)
Measurement span (capsule: D - 0.35 to 70 MPa (50.8 to 10150 psi)
Wetted parts material (note *2) : S - Process connection 316L SST / Diaphragm Hastelloy C-276 *1
Process connections : 4 - 1/2 NPT female
Always N : N -
Always 0: 0 -
Amplifier housing: 2 - ASTM CF-8M stainless steel (note *5)

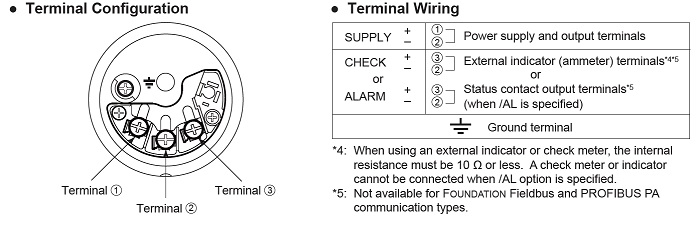

Electrical connection: D - M20 female, two electrical connections and a 316 SST blind plug
Integral indicator: E - Digital indicator (note *7)
Mounting bracket: L - 316 SST 2-inch pipe mounting

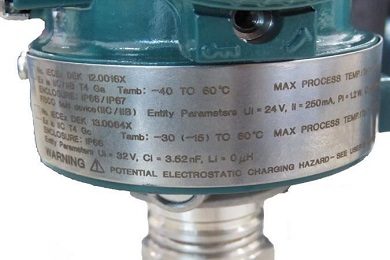

EAC (Ex): GS12 - EAC Intrinsic safety approval (note *1*2*3*4) see table GS12
Calibration units (note *3): D3 - P calibration (psi unit) / (See Table for Span and Range Limits.)
Gold-plated diaphragm (note*18): A1 - Surface of isolating diaphragms are gold plated, effective for hydrogen permeation.
Pressure test/ Leak test certificate (note *12): T15 - Test Pressure: 70 MPa (10150 psi) *10
Wired tag plate: N4 - 316 SST tag plate wired onto transmitter
Material certificate (note *6): M15 - Process Connector
Functional safety(SIL) (note *20*21): SLT - Low temperature expansion of functional safety Amb.Temp.: −55 to 85°C
