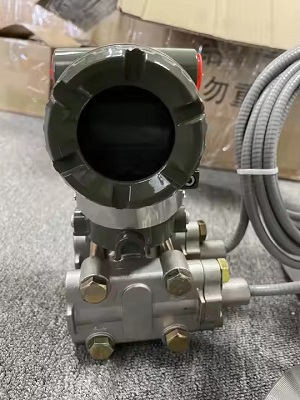

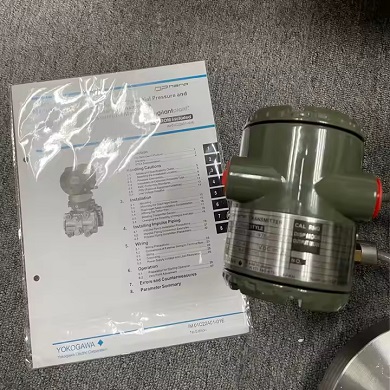

Yokogawa Differential Pressure Transmitter EEJA118W-EMSA2FB-AAZ-97EJKF21

The Yokogawa EJA118W is a diaphragm-sealed differential pressure transmitter. It works by using a diaphragm seal to isolate the pressure-sensing element from the process medium, which can be liquid, gas, or steam. The pressure difference between two points is measured, and this is converted into a 4-20mA DC signal, which can be used for remote monitoring and control.

Transmitter Datasheet

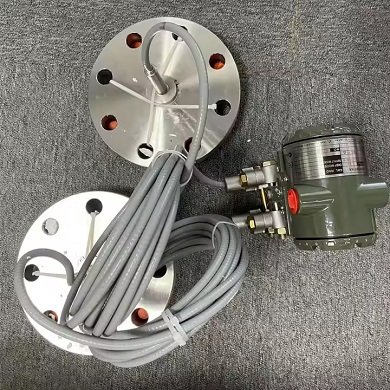

Transmitter and Flange Feature

• Manufacturer : Yokogawa
• Product No. : EEJA118W-EMSA2FB-AA05-97EJKF21
• Model : EJA118W - Differential pressure transmitter
• Output signal: E - 4 to 20 mA DC with digital communication (HART protocol, see IM 01C22T01-01E)
• Measurement span (capsule: M - 2.5 to 100 kPa {250 to 10000 mmH2O}
• Wetted parts material (note *1) : S -  [Diaphragm] JIS SUS316L /  [Others JIS SUS316L]
• Process flange rating: A2 - ANSI class 300
• Process flange size / material: F - 3-inch (80 mm) / JIS SUS316
• Cover flange bolts material: B - JIS SUS630
• Fill fluid: A - For general use (silicone oil) (process temperature –15 to 60°C)) (Ambient temp. –10 to 250°C]
• Always A: A
• Capillary Length: 05 - 5 meter (Example for 2 m: 02)
• Installation: 9 - Horizontal impulse piping type, left side high pressure)
• Electrical connection: 7 - 1/2 NPT female, two electrical connections and a blind plug
• Integral indicator: E - Digital indicator with the range setting switch
• Mounting bracket: J - JIS SUS316 2-inch pipe mounting (flat type)
• ATEX: KF21 - see table on datasheet

Basic Ordering Information Transmitter

There are several Model of pressure transmitters, for more details read the PDF below

Basic Ordering Information
