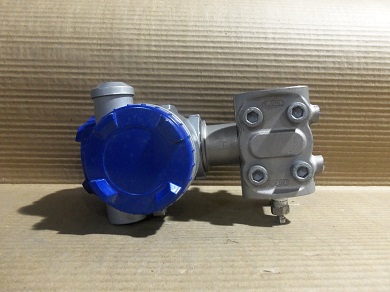

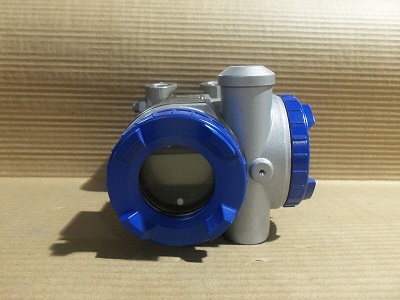

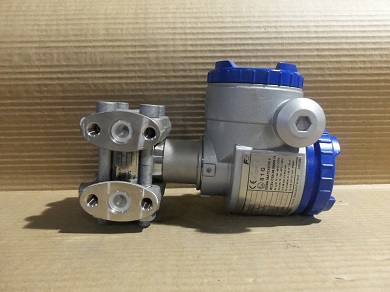

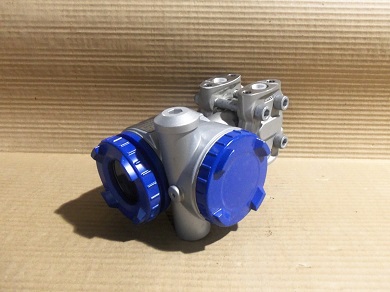

FUJI FKCW33V52KCYYAA Differential Pressure Transmitter

The Fuji Electric FKC differential pressure transmitter utilizes a micro-capacitive silicon sensor combined with advanced digital signal processing to accurately measure differential pressure and transmit a proportional 4-20 mA electrical output. The transmitter essentially measures the pressure difference between two points in a system, often using a primary element like an orifice plate or Venturi tube to create a pressure drop. This pressure difference is then converted into a capacitance change by the sensor, which is subsequently translated into a usable electrical signal

Transmitter Datasheet

Transmitter Feature

• Manufacturer :  Fuji Electric
• Product No. : FKCW33V52KCYYAA
• Model : FKC - Differential pressure transmitter - Smart, 4-20 mA + HART/Fuji Electric communication protocols
• Connections: W - Process connections 1/4"-18 NPT / Oval flange threading M10 or M12 (*1) / Electrical  connection M20 x 1,5 / Enclosure type "L" shape
• Range & wetted parts material: 33V -  Static pressure Limit -1 to 160 bar (*3)/ Spans 32 /3200 mm WC (meters of water column)  / Process - cover 316L SS / Measurament Diaphragm 316L SS / Wetted Cell Body 316L SS
• Indicator : 52 -Digital, Custom scale with push button - Arrester None
• Approvals for hazardous locations (consult FUJI for availability): K - ATEX - Intrinsic Safety
• Side vent/drain & mounting bracket: C - Side vent/drain none / mounting bracket SS 304L
• SS parts Tag plate: Y - None
• Special applications & fill fluid: Y - Treatment None (std) / Fill fluid silicone oil
• Process cover gasket: A  - Viton
• Bolts/screws material: A  - SS 630/304 (bolt/nuts)

Basic Ordering Information Transmitter

There are several Model of pressure transmitters, for more details read the PDF below
