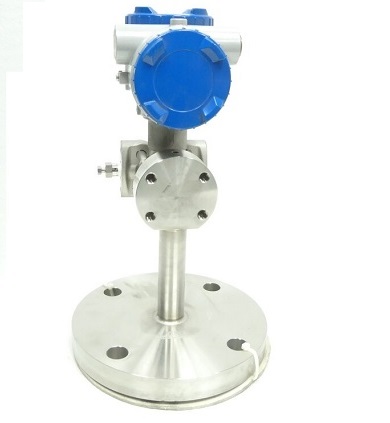

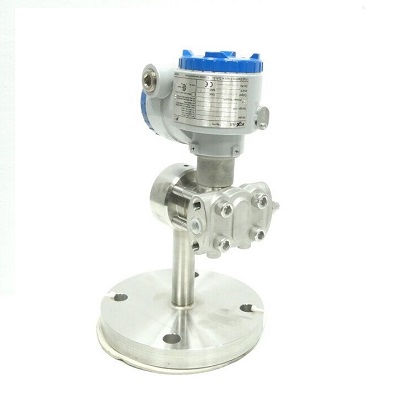

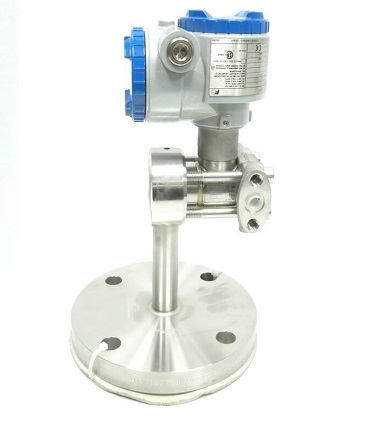

Fuji Electric FKET45TFAEYYYAU Level Transmitter (DP)

Fuji Electric's FKE series pressure transmitters, including the V6 model, utilize a silicon-based capacitive sensor to measure pressure. The pressure being measured causes a diaphragm to deflect, which in turn changes the capacitance of the sensor. This capacitance change is then converted into a corresponding electrical signal, typically a 4-20mA current loop, representing the measured pressure.

Transmitter Datasheet

Transmitter Feature

• Manufacturer :  Fuji Electric

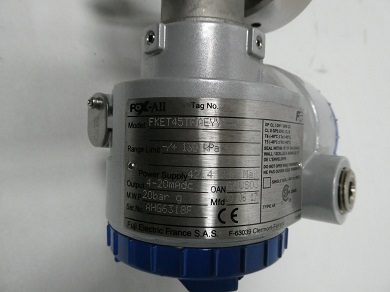

• Product No. : FKET45TFAEYYYAU
• Model : FKE - Smart, 4-20 mAdc + Fuji/Hart® digital signal
• Connections: T - Process connections 1/4"-18 NPT / Oval flange connection 7/16-20 UNF / Electrical  connection 1/2"-14 NPT
• Mounting flange: 4 -  Material SS 316 L / Size and rating ANSI-150LB3''-ISO PN 20 DN 80 /Flange mount. position Long design
• Measuring range (mmH2O): 5  -  130 - 13000
• Material : T - LP side Process cover, Diaphragm,Wetted sensor body SS 316L / HP side Diaphragm and flange face Tantalum
• Indicator and arrester: FA - None (standard)
• Approvals for hazardous locations (consult FUJI for availability): E - CSA - Explosion-Proof (digit 4 = "P" & "T" only)
• Diaphragm extension (mm): Y - Extension (mm] 0 / Applicable material code Any
• SS tag plate  SS housing : Y -  None
• Process cover gasket: A  - Viton
• Bolts/screws material: U  - SS 316 (bolt/nuts)

Basic Ordering Information Transmitter

There are several Model of pressure transmitters, for more details read the PDF below

Basic Ordering Information
