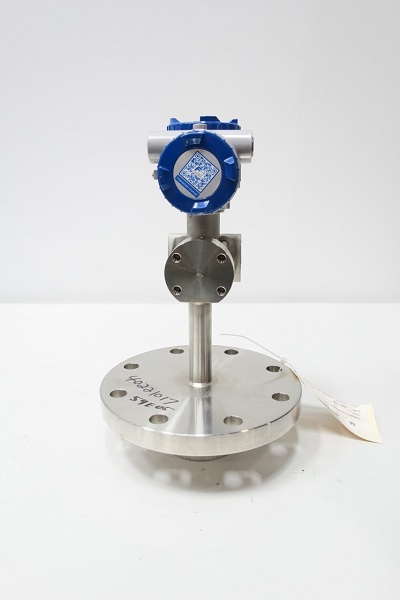

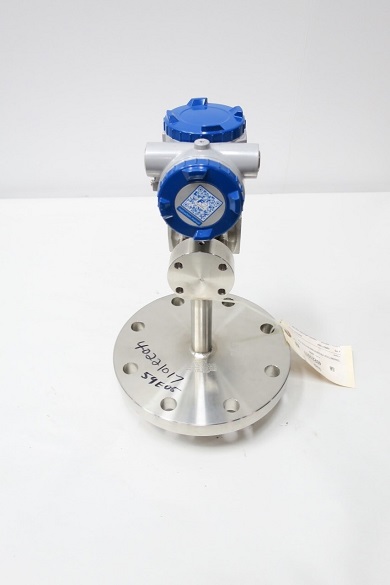

Fuji Electric FKET56HFAEEYYAU Pressure Transmitter

Fuji Electric's FKE series pressure transmitters, including the V6 model, utilize a silicon-based capacitive sensor to measure pressure. The pressure being measured causes a diaphragm to deflect, which in turn changes the capacitance of the sensor. This capacitance change is then converted into a corresponding electrical signal, typically a 4-20mA current loop, representing the measured pressure.

Transmitter Datasheet

Transmitter Feature

• Manufacturer :  Fuji Electric
• Product No. : FKET56HFAEEYYAU
• Model : FKE - Smart, 4-20 mAdc + Fuji/Hart® digital signal
• Connections: T - Process connections 1/4"-18 NPT / Oval flange connection 7/16-20 UNF / Electrical  connection 1/2"-14 NPT

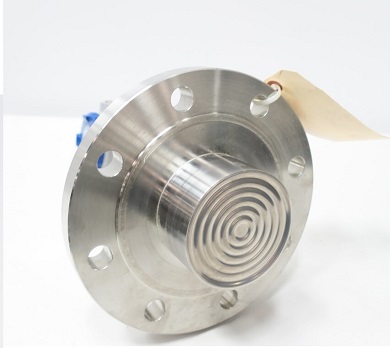

• Mounting flange: 5 -  Material SS 316 L / ANSI-150LB4''-ISO PN 20 DN 100 /Flange mount. position Long design
• Measuring range (mmH2O): 6  -  500  - 50000
• Material : H - LP side Process cover, Diaphragm,Wetted sensor body SS 316L / HP side Diaphragm and flange face Hastelloy-C
• Indicator and arrester: FA - None (standard)
• Approvals for hazardous locations (consult FUJI for availability): E - CSA - Explosion-Proof (digit 4 = "P" & "T" only)
• Diaphragm extension (mmc : E - 50 Applicable material code Material code "H"
• SS tag plate  SS housing : Y -  None
• Diapharagms seal fluid  : Y -  silicone oil
• Process cover gasket: A  - Viton
• Bolts/screws material: U  - SS 316 (bolt/nuts)

Basic Ordering Information Transmitter

There are several Model of pressure transmitters, for more details read the PDF below

Basic Ordering Information
