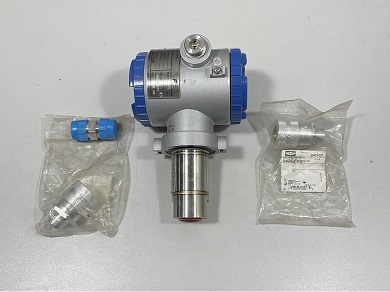

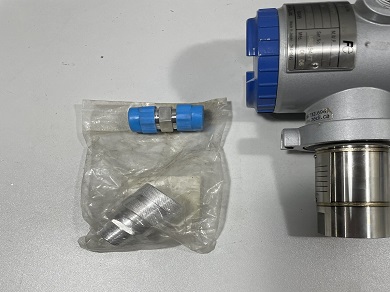

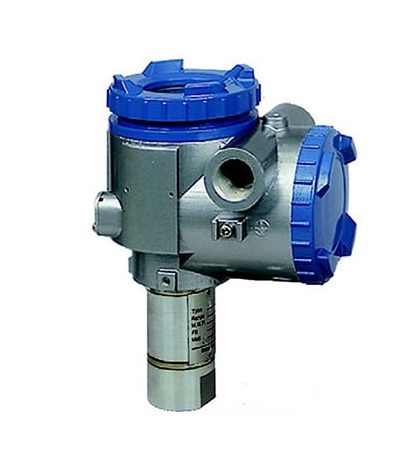

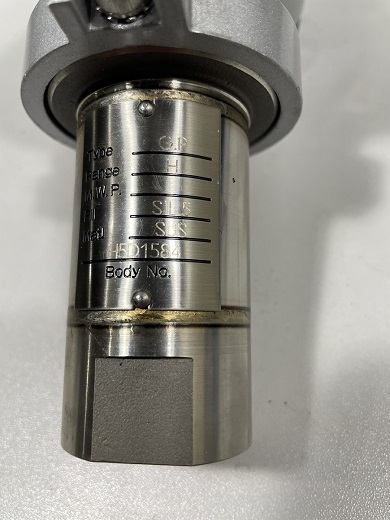

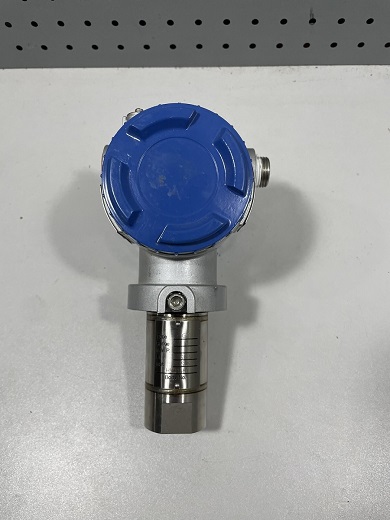

Fuji Electric FKPT03V6-2LCYY-YL Pressure Transmitter

The Fuji Electric FKP gauge pressure transmitter utilizes a silicon micro-capacitive sensor and digital signal processing to accurately measure pressure relative to atmospheric pressure. The pressure being measured is applied to a diaphragm, which deforms and transmits the pressure to the sensor. This deformation changes the capacitance of the sensor, which is then converted into a 4-20 mA electrical output signal.

Transmitter Datasheet

Transmitter Feature

• Manufacturer :  Fuji Electric Pressure Transmitter
• Product No. : FKPT03V6-2LCYY-YL
• Model : FKP - Smart, 4-20 mAdc + Fuji/Hart® digital signal
• Connections: T - Process connections see datasheet digit 15 (Details "A" - Process connection) / Electrical  connection 1/2"-14 NPT
• Range & wetted parts material: 03V -  Span 1,875/30 bar / Diaphragm material 316 L SS/ Wetted parts 316L SS
• Design revision number: 6
• Indicator & Arrester : 2 - Indicator Digital, Custom scale / Arrester None
• Approvals for hazardous locations (consult FUJI for availability): L - CSA - Explosion-Proof & Intrinsic Safety combined approval (digit 4 = "P" & "T" only)
• Mounting bracket: C - Yes (SS)
• SS tag plate  SS housing : Y -  None
• Diapharagms seal fluid  : Y -  silicone oil
• Processconnection (welded) adaptor - all stainless steel parts: Y  - None - (1/2 - 14 NPTI connection)
• Special options: L  - None

Basic Ordering Information Transmitter

There are several Model of pressure transmitters, for more details read the PDF below

Basic Ordering Information
