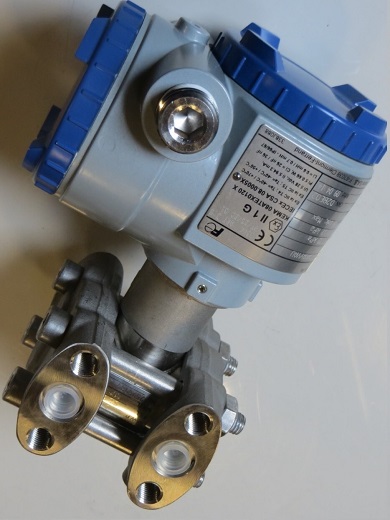

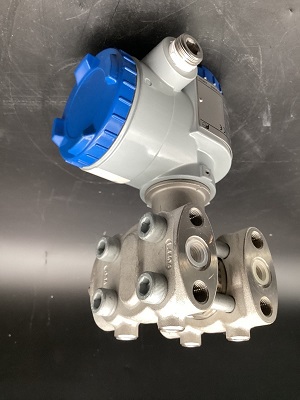

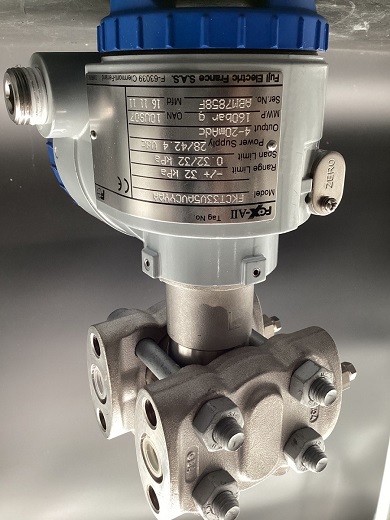

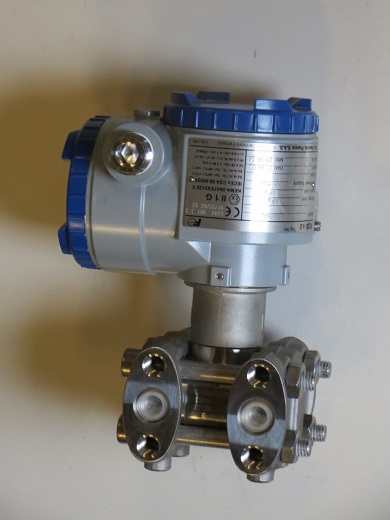

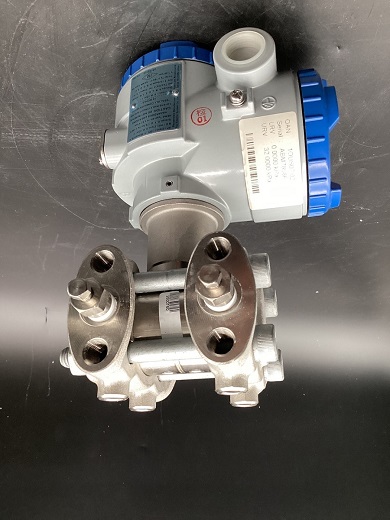

FUJI FKCT33V6-2LKYY-5L Differential Pressure Transmitter

The Fuji Electric FKC differential pressure transmitter utilizes a micro-capacitive silicon sensor combined with advanced digital signal processing to accurately measure differential pressure and transmit a proportional 4-20 mA electrical output. The transmitter essentially measures the pressure difference between two points in a system, often using a primary element like an orifice plate or Venturi tube to create a pressure drop. This pressure difference is then converted into a capacitance change by the sensor, which is subsequently translated into a usable electrical signal

Transmitter Datasheet

Transmitter Feature

• Manufacturer :  Fuji Electric
• Product No. : FKCT33V6-2LKYY-5L
• Model : FKC - Differential pressure transmitter - Smart, 4-20 mA + HART/Fuji Electric communication protocols
• Connections: T - Process connections 1/4"-18 NPT / Oval flange threading 7/16 - 20 UNF / Electrical  connection 1/2 - 14 NPT / Enclosure type "L" shape
• Range & wetted parts material: 33V -  Static pressure Limit -1 to 160 bar (*3)/ Spans 32 /3200 mm WC (meters of water column)  / Process - cover 316L SS / Measurament Diaphragm 316L SS / Wetted Cell Body 316L SS
• Indicator : 62 -Digital, Custom scale with push button - Arrester None
• Approvals for hazardous locations (consult FUJI for availability): K - ATEX - Intrinsic Safety
• SS parts Tag plate: Y - None
• Special applications & fill fluid: Y - Treatment None (std) / Fill fluid silicone oil

Basic Ordering Information Transmitter

There are several Model of pressure transmitters, for more details read the PDF below

Basic Ordering Information
