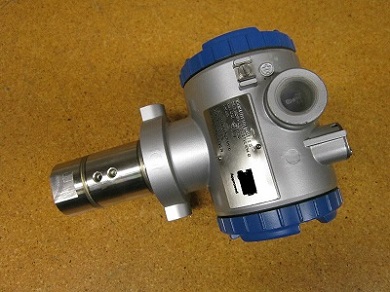

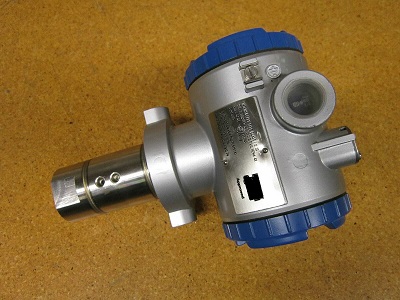

Fuji Electric FKPW04V1-AABY-0Y Pressure Transmitter

The Fuji Electric FKP gauge pressure transmitter utilizes a silicon micro-capacitive sensor and digital signal processing to accurately measure pressure relative to atmospheric pressure. The pressure being measured is applied to a diaphragm, which deforms and transmits the pressure to the sensor. This deformation changes the capacitance of the sensor, which is then converted into a 4-20 mA electrical output signal.

Transmitter Datasheet

Transmitter Feature

• Manufacturer :  Fuji Electric Pressure Transmitter
• Product No. : FKPW04V1-AABY-0Y
• Model : FKP - Smart, 4-20 mAdc + Fuji/Hart® digital signal
• Connections: W - Process connections see datasheet digit 15 (Details "A" - Process connection) / Electrical  connection M 20 x 1,5
• Range & wetted parts material: 04V -  Span 6,25/100 bar / Diaphragm material 316 L SS/ Wetted parts 316L
• Indicator & Arrester : 1 - Digital, 0-100 / Arrester None / 4-20 mA DC + Hart® /Fuji digital signal "SMART"

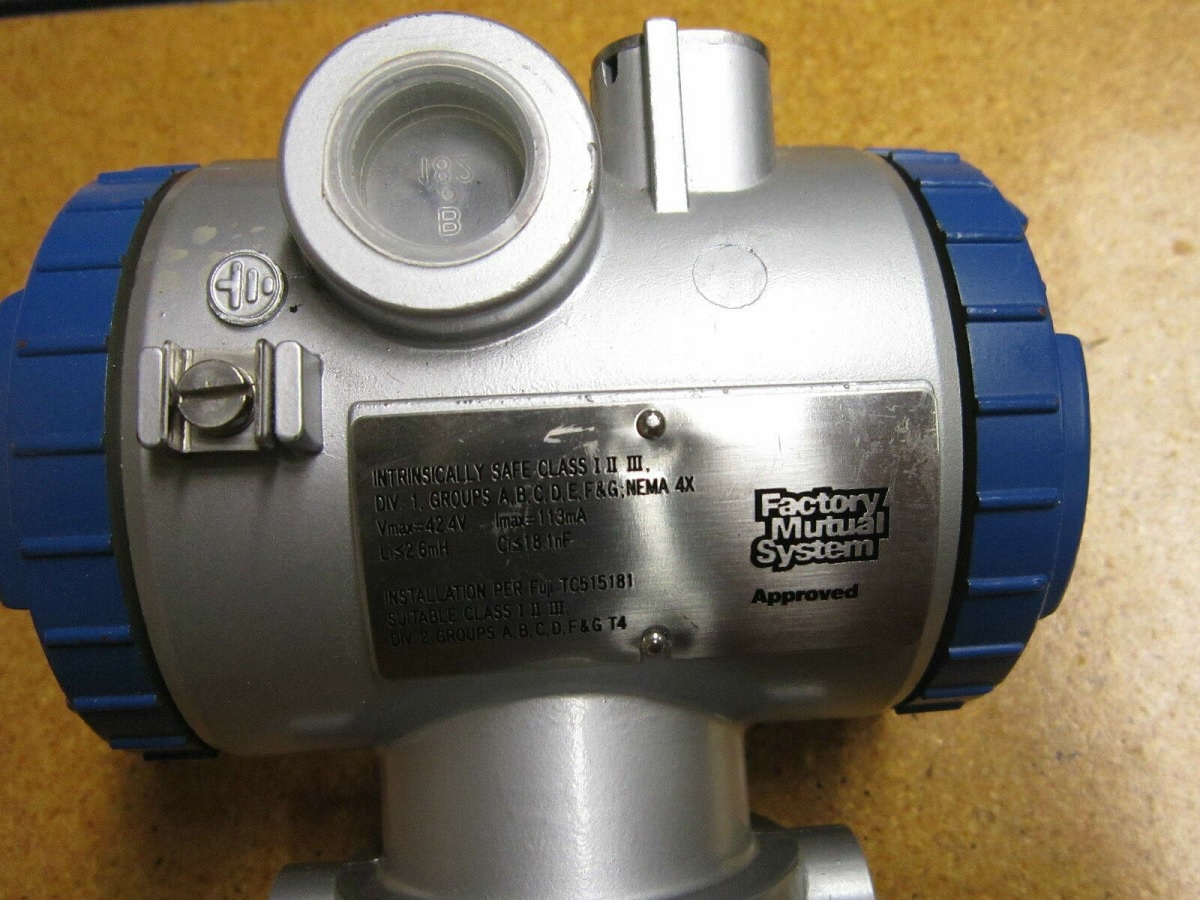

• Approvals for hazardous locations (consult FUJI for availability): A -None (Standard)
• Mounting bracket: A - Yes (SS)

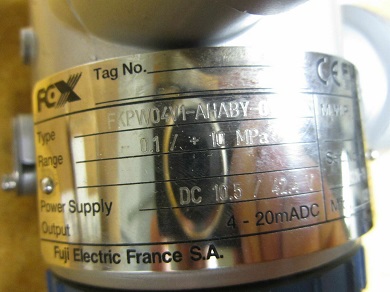

• SS parts: B - SS tag plate Yes / SS housing None
• Special applications & fill fluid : Y -  Treatment None (std)  / Fill fluid Silicone oil
• Diapharagms seal fluid  : Y -  silicone oil

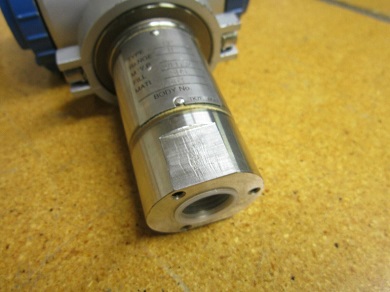

• Processconnection (welded) adaptor - all stainless steel parts: 0Y  - None - (1/2 - 14 NPTI connection)

Basic Ordering Information Transmitter

There are several Model of pressure transmitters, for more details read the PDF below

Basic Ordering Information
