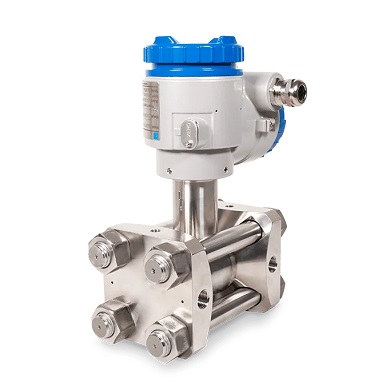

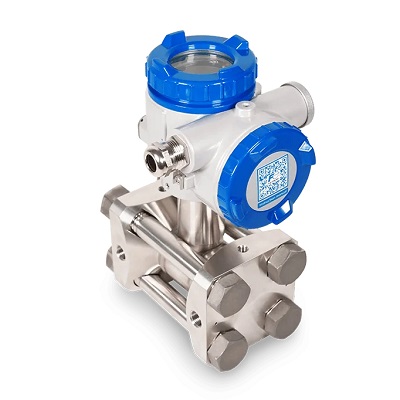

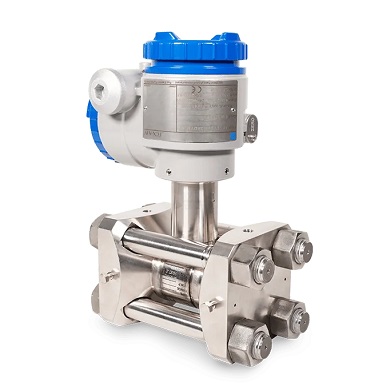

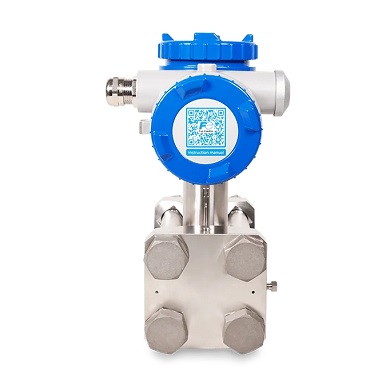

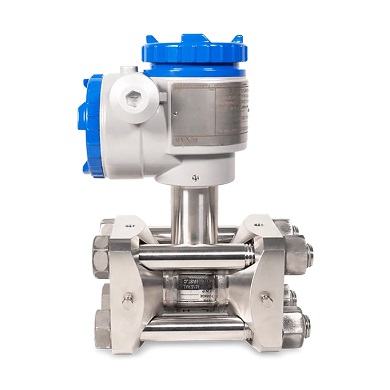

Fuji FKCTU3H4PKCEPWWA Differential Pressure Transmitter

The differential pressure transmitter for high static pressure measures the differential pressure of a multiphase flow measurement system using a primary element. This high-precision sensor is designed to withstand the high static pressures resulting from the drilling depth of subsea wells. It withstands the extreme conditions of the marine environment and accurately measures water, oil and gas flows in topside drilling and offshore subsea production systems.

Transmitter Datasheet

Transmitter Feature

• Manufacturer :  Fuji Electric
• Product No. : FKCTU3H4PKCEPWWA
• Model : FKC - Differential pressure transmitter - Smart, 4-20 mA + HART/Fuji Electric communication protocols
• Electrical Connections: T - 1/4"-18 NPT
• Max working pressure (static pressure): U -  0 - 1035 bar (Test pressure 1545 bar (22 408 Psi))
• Range (mbar): 3 - Min 0 - 130  / Max 0 - 320
• Wetted parts material: H - Measuring cell wetted parts in Hast C 276 - process cover in SS316L
• Indicator Arrester Communication type: 4P -LCD, Custom scale / no Arrester / 4/20 mA - Hart TM
• Approvals for hazardous locations (consult FUJI for availability): K - Intrinsic Safety ATEX xII 1 GD - EEx ia IIC T4/T5
• Mounting bracket (SS) -  C
• Tag plate Electronics housing: E  - SS 316L
• Fill fluid: P  - Specific oil fill for cell. Wetted parts and bolting in conformity with NACE
• Welded process cover design: W
• Process cover bolts/nuts in ASTM A 453 grade 660: W
• Process connection: A  - 1/4 NPT

Basic Ordering Information Transmitter

There are several Model of pressure transmitters, for more details read the PDF below

Basic Ordering Information
