FUJI FKBT42VFAAB1Y + SR4HYBY Pressure Transmitter

Fuji Electric's FKB differential pressure transmitter utilizes a capacitive sensor to measure the pressure difference between two points, converting it into a proportional 4-20mA output signal, with an optional superimposed digital signal. The core principle involves the deflection of a measuring diaphragm, which is part of a capacitive cell, due to the applied differential pressure. This deflection alters the capacitance, which is then converted to an electrical signal.

Transmitter Datasheet

Transmitter Feature

Manufacturer : Fuji Electric

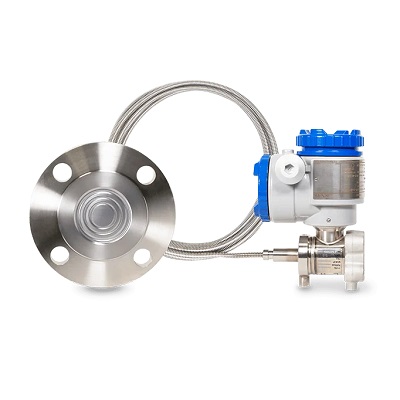

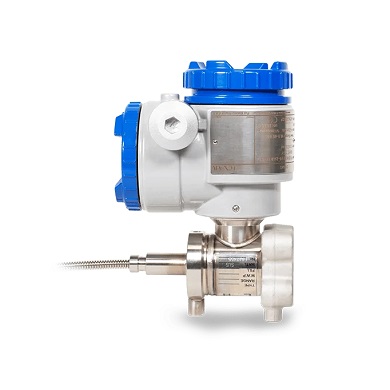

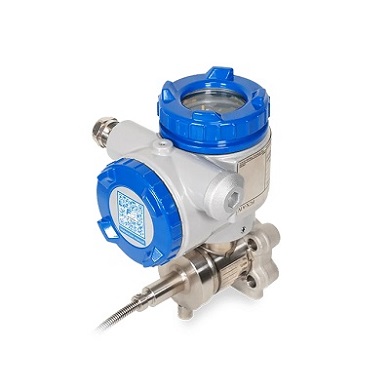

Product No. : FKBT42VFAAB1Y
Model : FKB - pressure transmitter - Smart, 4-20 mA + HART/Fuji Electric communication protocols
Conduit connection: T - 1/2"-14NPT
Diaphragm seal rating: 4 - PN 20 - 150 Lbs
Spans : 2 - 0 to 0.05/5 bar
Indicator, arrester and initial setting: VFA - Indicator None / Arrester none / Initial setting 4-20mA DC + Hart® /Fuji digital signal "SMART''
Approvals for hazardous locations (consult FUJI for availability): A - None (Standard)
Mounting design (*5): B - Capillary / Ambiant temperature correction Transmitter and diaphragm seal assembly
Cell flange design: 1Y -Operating pressure (bar) p ≤ 50 bar / Bolts/nuts none / SS tag plate none / SS housing & mounting bracket none

Diaphragm Feature

Manufacturer : Fuji Electric

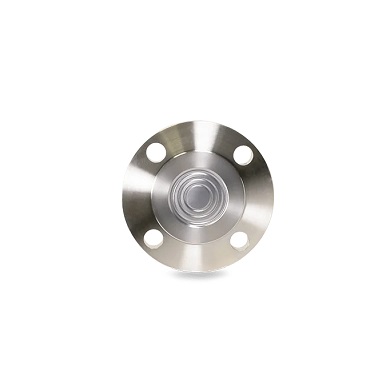

Product No. : SR4HYBY
Model : S
Flanged radial diaphragm seal connection - Not possible with rigid mounting design digit 6 : code R : R
Flanges RF (Flange size and rating) : 4 ANSI-150LB 3''-ISO PN 20 DN 80
Diaphragm seal material: H Diaphragm Hastelloy-C / Flange raised face SS 316 L / Flange SS 316 L
Diaphragm seal design: Y Flush mounting
ransmission diaphragm seal to measuring cell: B Mounting design Capillary / Capillary length 3 m / Capillary design PVC protection
Special applications and fill fluid for the diaphragm seal only: Y Treatment None (standard) / Fill fluid Silicone oil
