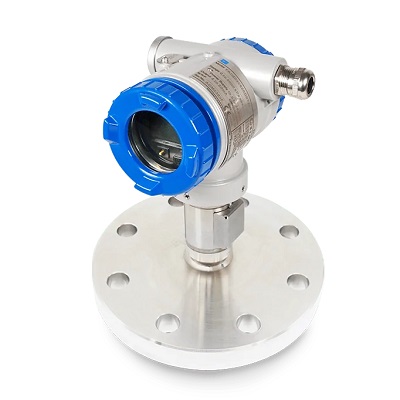

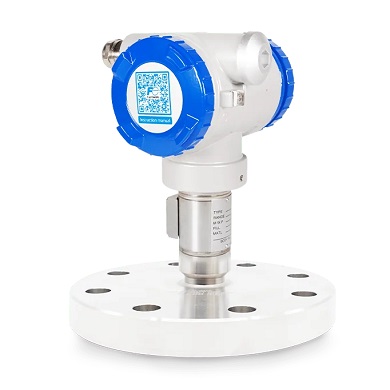

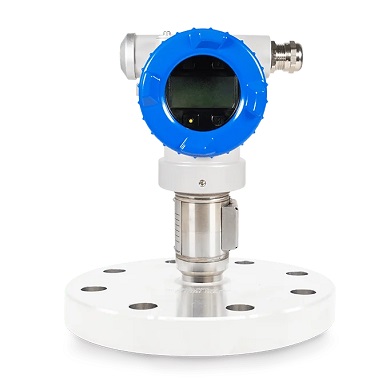

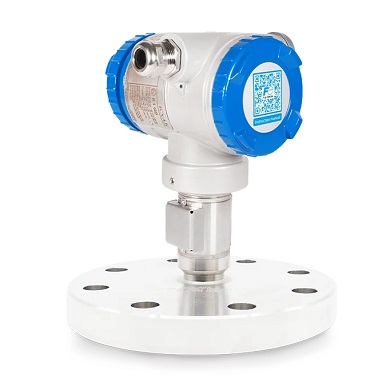

FUJI Electric FKHT64V6PKLY0Y + SR6HYSY Pressure Transmitter

Fuji Electric's FKH absolute pressure transmitter uses a micro-capacitive silicon sensor and digital signal processing to accurately measure pressure and transmit a proportional 4-20 mA output signal. The sensor, made from a silicon chip, is designed for high reliability and stability, minimizing issues like hysteresis and mechanical fatigue. It's a direct-mounting transmitter, meaning it measures absolute pressure (with a fixed vacuum reference) and converts it into an electrical signal without needing a separate reference.

Transmitter Datasheet

Transmitter Feature

Manufacturer : Fuji Electric
Product No. : FKHT64V6PKLY0Y
Model : FKH - pressure transmitter - Smart, 4-20 mA + HART/Fuji Electric communication protocols
Conduit connection: T - 1/2"-14NPT
Diaphragm seal rating: 6 - PN 50 - 300 lbs
Measuring range 0…min to max: 4 - 0...1.875 to 30 bar abs / 0...187.5 to 3000 kPa abs / 0. 27.20 to 435.11 psi abs
Empty: V
Design revision number: 6
Indicator: P - Digital, Custom scale / Arrester none
Hazardous location approvals: K - ATEX - Intrinsic Safety
Assembling design: L - Rigid
Stainless steel parts: Y - Tag plate None / Housing None
Empty: 0
Special options: Y - none

Diaphragm Feature

Manufacturer : Fuji Electric
Product No. : SR6HYSY
Model : S - Remote seal diaphragms
Flange / Capillary connection: R - Radial - Not possible with rigid assembling design (digit 6 = "R")
Flanges RF (Flange size and rating) : 6 ANSI-300 lLbs 3" / ISO PN50 DN80
Seal diaphragm design: H Diaphragm Hastelloy-C / Flange raised face SS 316 L / Flange SS 316 L
Diaphragm extension: Y
Remote seal assembling characteris tics: S Rigid assembly - Not possible with digit 2 = "R", "W" - Maximum process temperature: 150 °C
Specific applications and filling fluids for the remote seal: Y Treatment None (standard) / Fill fluid Silicone oil
